AIR CONDITIONER (SPLIT TYPE)
Indoor unit
RAS-B13B2KVG-E3
Outdoor unit
RAS-13B2AVG-E2
No.
Part name
Installation plate
1
Wireless remote controller
2
Battery
3
OUTDOOR
No.
Part name
Drain nipple
9
INSTALLATION MANUAL
OWNER'S MANUAL
Scan QR CODE to access Installation and Owner's Manual on website.
INSTALLATION MANUAL
ACCESSORIES PARTS
Q'ty No.
Mounting screw
1
4
B Label
1
5
Installation and Owner's Manual
(This manual)
2
6
Q'ty
1
AND
https://www.toshiba-carrier.co.th/manuals/default.aspx
INDOOR
Part name
Q'ty No.
5
1
1
1
Manual are available in EN/IT.
Part name
Safety Manual
7
R32 Information Servicing Manual
8
EN
R32
Q'ty
1
1
Advertisement
Table of Contents
Related Manuals for Toshiba RAS-B13B2KVG-E3
Summary of Contents for Toshiba RAS-B13B2KVG-E3

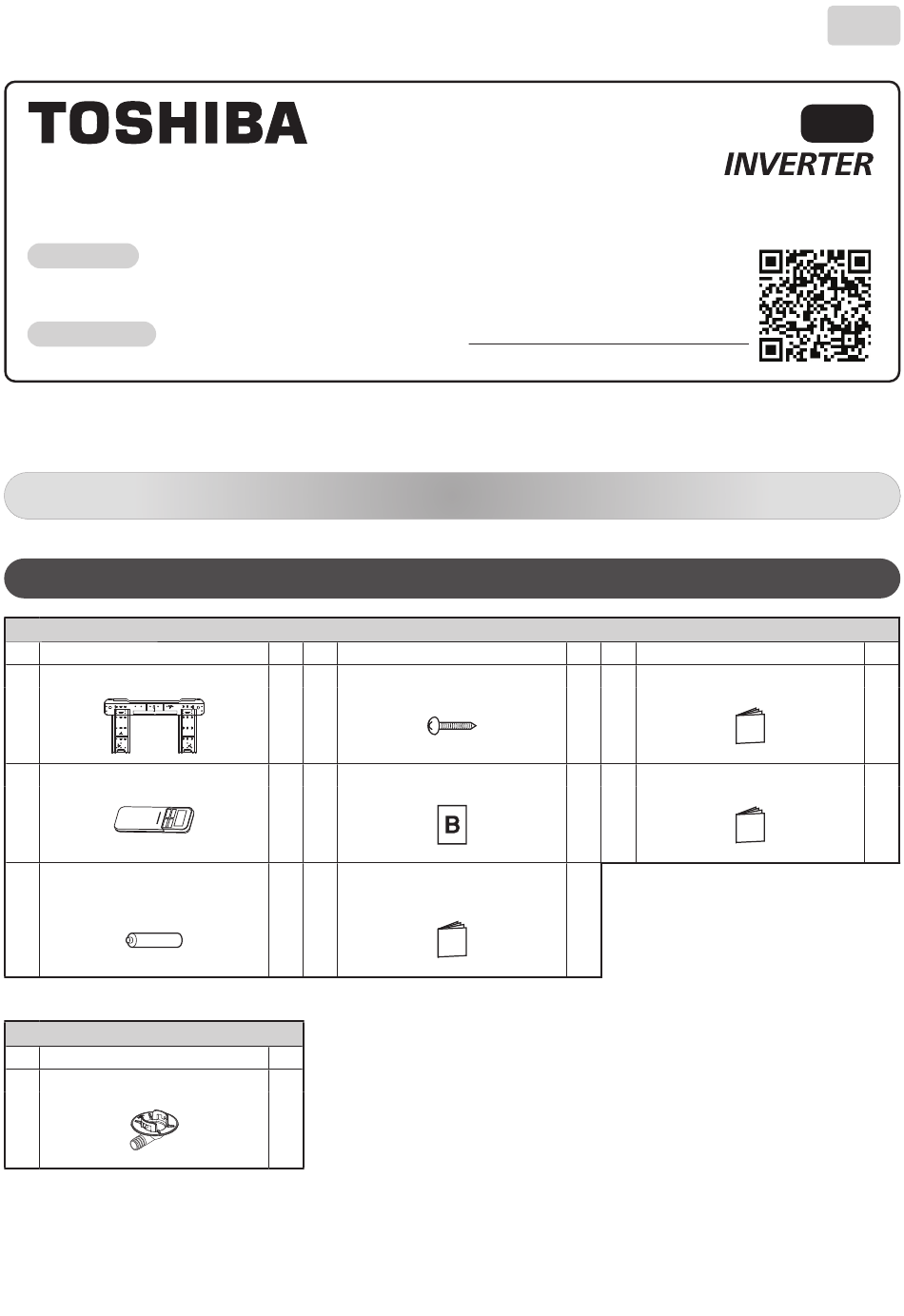

- Page 1 INSTALLATION MANUAL OWNER’S MANUAL AIR CONDITIONER (SPLIT TYPE) Indoor unit RAS-B13B2KVG-E3 Scan QR CODE to access Installation and Owner’s Manual on website. Outdoor unit https://www.toshiba-carrier.co.th/manuals/default.aspx Manual are available in EN/IT. RAS-13B2AVG-E2 INSTALLATION MANUAL ACCESSORIES PARTS INDOOR Part name Q’ty No.
-
Page 2: Installation Diagram Of Indoor And Outdoor Units
INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS For the rear left, bottom left and left piping Wall Hook Installation plate Cut out a piece of SPACER from indoor unit packaging box, roll it and insert between the indoor unit and wall to tilt the indoor unit for better operation. -
Page 3: Indoor Unit
INDOOR UNIT Space allows under indoor unit Installation Place • Space allows for moving range of the air inlet grille and horizontal louver in operation above curtain rails, window cornice or other objects. • A place which provides the spaces around the indoor unit as shown in the diagram. -
Page 4: Piping And Drain Hose Installation
In case of bottom right or bottom left piping Piping and Drain Hose Installation • After scribing slits inside of the Piping and drain hose forming front panel with a knife or a making-off pin, cut them with a pair •... -
Page 5: Indoor Unit Fixing
Indoor Unit Fixing 1. Pass the pipe through the hole in the wall and hook the indoor unit on the installation plate at the upper hook. 2. Swing the indoor unit to right and left to confirm that it is firmly hooked up on the installation plate. -
Page 6: Outdoor Unit
OUTDOOR UNIT Installation Place CAUTION 1. Install the outdoor unit without anything blocking the air discharging. • A place which provides the spaces around the outdoor unit as shown in 2. When the outdoor unit is installed in a place always exposed to strong the diagram. -
Page 7: Refrigerant Piping Connection
Refrigerant Piping Connection Evacuating After the piping has been connected to the indoor unit, you can perform the Flaring air purge together at once. 1. Cut the pipe with a pipe cutter. AIR PURGE Evacuate the air in the connecting pipes and in the indoor unit using a Obliquity Roughness Warp... - Page 8 Packed valve handling precautions • Open the valve stem all the way out, but do not try to open it beyond the stopper. Pipe size of Packed Valve Size of Hexagon wrench 12.70 mm and smallers A = 4 mm 15.88 mm A = 5 mm Pump down process...
-
Page 9: Electrical Works
ELECTRICAL WORKS Model RAS-B13B2KVG-E3 Power source 50Hz, 220 – 240V / 60Hz, 220 – 230V Single phase Maximum running current 7.5A Circuit breaker rating Power supply cable H07RN-F or 60245 IEC66 (1.0 mm² or more) Connecting cable H07RN-F or 60245 IEC66 (1.0 mm² or more) -
Page 10: Power Supply And Connecting Cable Connection
Power Supply and Connecting Cable Connection Power Supply Input at Outdoor Unit Terminal Block Indoor Unit Outdoor Unit Stripping length of the Connecting cable Connecting cable 1 2 3 connect to 1 2 3 connecting cable Terminal block Earth line 50 mm 10 mm Earth line... -
Page 12: Installation Checklist
INSTALLATION CHECK LIST Model name After finishing installation work, please check items below and hand this sheet to user to Check date keep it in a safe place together with Installation and Owner’s Manual Checked by Note : Please put a mark " "... -
Page 13: Indoor Unit Display
OWNER’S MANUAL INDOOR UNIT DISPLAY REMOTE CONTROLLER 1 Timer (White) Infrared 2 Operation mode (White) signal emitter • Display brightness can be adjusted, follow procedure on %. PREPARATION BEFORE USE Insert the Battery Memory and Preset button Temperature button 1. Remove the slide cover. Start/Stop button 2. - Page 14 AIR FLOW DIRECTION COOLING / HEATING / FAN ONLY OPERATION 1. Press : Select Cool , Heat or Fan only Press : Move the louver 2. Press : Set the desired temperature. in the desired vertical direction. Min. 17°C, Max. 30°C. Fan Only: No temperature indication 3.
- Page 15 TEMPORARY OPERATION PRESET OPERATION In case of the misplaced or discharged remote controller. Set your preferred operation for future use. The setting will be memorized • Pressing the RESET button, the unit can start or stop without using by the unit for future operation (except airflow direction). the remote controller.
-
Page 16: Maintenance
Air conditioner operating conditions MAINTENANCE Temp. Outdoor Temperature Room Temperature Operation Heating –15°C ~ 24°C Less than 28°C CAUTION Cooling –15°C ~ 46°C 21°C ~ 32°C –15°C ~ 46°C 17°C ~ 32°C • Firstly, turn off the circuit breaker. Indoor Unit and Remote Controller TROUBLESHOOTING (CHECK POINT) •... - Page 17 1136750304A...
