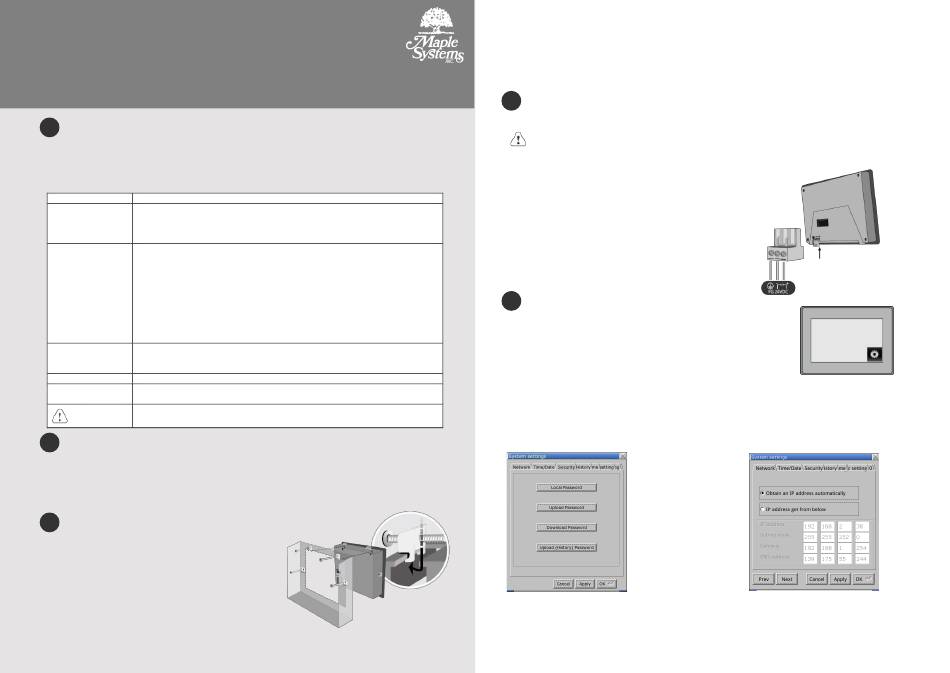

Maple Systems HMI5043LBv2 Series Installation Instruction

HMI5043Lv2 & HMI5043LBv2
series
1 Installation and Startup Guide
This document covers the installation of HMI5043Lv2 & HMI5043LBv2 Series HMI, for the
detailed specifications and operation, please refer to Datasheet, Brochure and EasyBuilder Pro
User Manual. Please read all warnings, precautions, and instructions on the device carefully
before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (indoor use only).
The HMI product has been tested to conform to European CE requirements.
Electrical This means that the circuitry is designed to resist the effects of electrical
Environment noise. This does not guarantee noise immunity in severe cases. Proper wire
routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the
operating limits are followed. Avoid installing units in environments
where severe mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on
the flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Operating Altitude
(Atmospheric Below 3,000 m (9842.52 ft.), atmospheric pressure is 70.1 kPa.
Pressure)
IP rating IP 65
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
Protection impairment if used in a manner not specified by the manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
2
Unpacking the Unit
Unpack and check the delivery. If damage is found, notify the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1 (3) Power Connector *1 (4)
Brackets & Screws *1 pack
3
Installation Instructions
Use a control box that provides enough stiffness. Cutout
Dimension: 119 mm x 93 mm. Secure the operator panel in
position, using all the fastening holes and the provided
brackets and screws. Screw Torque: 2.6 ~ 3.9 lbf.in. (For
reaching waterproof effect and preventing the panel from
being deformed.)
Plan for adequate space around the unit and inside the
enclosure, for ventilation and cables. Consider the heat
from other devices inside the enclosure. The ambient
temperature around the unit must be 0 ~ 45°C*.
Installation Instruction
Minimum required clearances (along the overlay): Top 15 mm / Bottom 50 mm / Sides 15 mm
Maximum panel thickness: 4.5 mm
*Operating temperature is 0°~50°C (32°~122°F) for use in installation without UL requirement.
4
Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
NOTE:
1. Connect positive DC line to the '+'
terminal and the DC ground to the '-'
terminal.
2. When downloading project using a
USB cable, do not connect HMI with PLC
and PC simultaneously, for electric
potential difference may result in damage
to HMI or PC.
System Settings
5
When HMI is powered up and displays image, click the system setting
button. (Default System Password: 111111)
Go to Security tab, the default password is 111111, click the
buttons to set your own passwords.
In MISC2 tab, if "Enable [Reset HMI to default] button in
calibration mode" is selected, the [RESET HMI TO
DEFAULT] button can be found in calibration mode, as
shown in Part 8.
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
Go to the Network tab, you may
choose to auto get DHCP IP, or
designate your own IP. It is necessary
to connect the HMI to your network
through a RJ-45 cable.
