Sealey AP201 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
IMPORTANT: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product but must be applied by the operator.
1.1. ASSEMBLY PRECAUTIONS
Assemble only according to these instructions. Improper assembly can create hazards.
9
Keep children, pets, and bystanders out of the area during assembly. Distractions can cause you to lose control of tools, injuring
9
yourself or others.
Weight capacity and other product capabilities apply to properly and completely assembled product only. DO NOT use if incompletely
9
or improperly assembled.
1.2. USE PRECAUTIONS
This product is not a toy. DO NOT allow children to play with or near this item.
8
Store out of reach of children.
9
Use the mobile workstation and accessories as intended and in accordance with these instructions, taking into account the working
9
conditions and the work to be performed. Use of the mobile workstation for operations different from those intended could result in a
hazardous situation.
Inspect before every use; DO NOT use if parts are loose or damaged.
9
The maximum bearing capacity of the support centre of the tool tray is 40kg, and the maximum bearing capacity of the edge is 10kg.
9
NOTE: Be aware of dynamic loading! Sudden shifts in the load may briefly create excess load, which may result in product failure.
Store idle equipment. When not in use, this product must be stored in a dry location to inhibit rust.
9
WARNING! DO NOT stand on the mobile workstation when it is deployed as a tool creeper. Serious injury can occur.
‰
2. INTRODUCTION

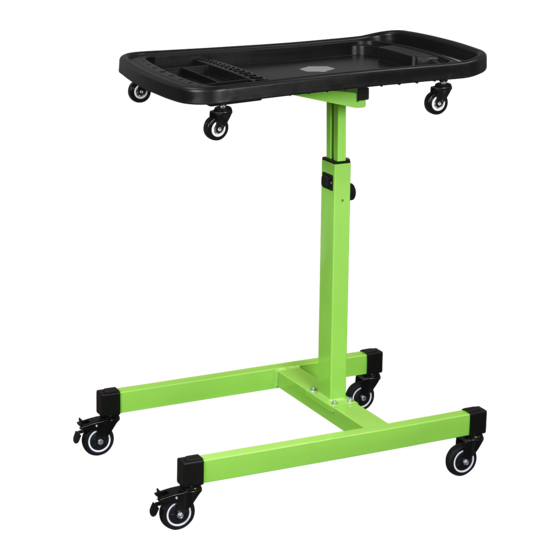

Adjustable table height adjustable from 775-1200mm. Features two magnetic collection trays, two small tool storage sections, one large
section for main workpiece as well as nine screwdriver storage holes and 15 socket storage slots. Tray top can be removed to be used as
a tool creeper on the ground. Fitted with four rubber coated castors for manoeuvrability in workshops and warehouses. Maximum weight
capacity 60kg. Min./Max. Height: 775/1200mm.
3. SPECIFICATION
MODEL NO:
Capacity:
Minimum/Maximum Height:
4. CONTENTS
1 - Working Table
(x1)
6 - M6 Inner Hexagon
Screws (x2)
11 - 10mm Open Wrench
(x1)
© Jack Sealey Limited
ADJUSTABLE-HEIGHT MOBILE WORKSTATION
WITH REMOVEABLE TOP TRAY
MODEL NO:
AP201
60kg
775/1200mm
2 - Support Frame
(x1)
7 - M10 Tube Nut
8 - M6 Anti-Loose Nut
(x4)
12 - 5mm Hex Wrench 13 - 14mm Open Wrench
(x1)
Original Language Version
AP201
Nett Weight:
Table Size (W x D):
3 - Underframe 4 - 3" wheel (2pcs with
(x1) brake wheels) (x4)
9 - M6 flat washer
(x6)
14 - 6mm Socket Wrench
(x1)
9.8kg
735 x 460mm
5 - 2"Caster
(x2)
10 - M6 Hexagon Bolt
(x4)
(x6)
(x1)
AP201 Issue 1 25/04/24
