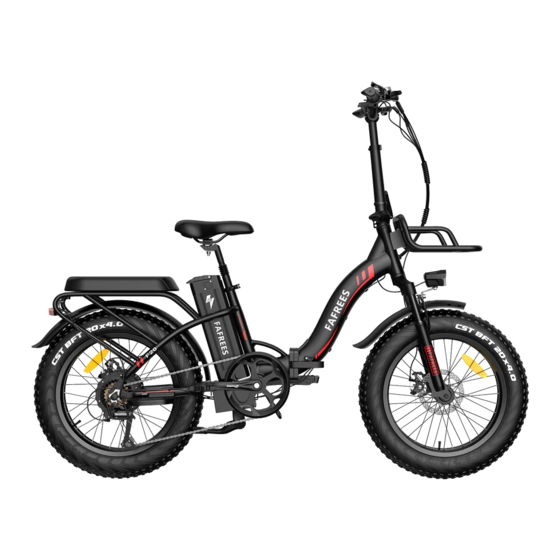

F20 Max Electric Bicycle

Advertisement

loading
Need help?

Need help?

Do you have a question about the F20 Max and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FAFREES F20 Max

Summary of Contents for FAFREES F20 Max

  • Page 1 User Manual F20 Max Electric Bicycle...
  • Page 2 IMPORTANT! Please find the frame number of your ebike, and write it down in the space below. In case of future need, this number is the unique identification code of your ebike.

  • Page 3: Using This Manual

    We take pride in bringing you a quality product that will offer years of enjoyment. Please read and understand this manual fully before assembling and riding your bike. If you have questions after reading this manual, please refer to Fafrees support or contact us by email or give us a call. USING THIS MANUAL This manual contains details of the product, its equipment, and information on operation, maintenance, and other helpful tips for owners.
  • Page 4 Observe regulations about bicycle lighting, licensing riding on pavements/sidewalks, bike path and trail use, helmet laws, child laws relating to cycling, and special bicycle traffic laws, it is your responsibility to know and obey your local laws. When riding a bike, always wear a properly fitted helmet that covers the forehead. Many locations ...

  • Page 5: Wet Weather

    Wet Weather It is recommended to not ride in wet weather if avoidable. Ride in wet weather only if necessary. Electric bike is not meant for use in heavy rain, or streams. Never immerse or submerge this product in water or liquid as the electrical system may be damaged. You should exercise additional caution when riding this bike in damp conditions.

  • Page 6: Electrical System

    Both levers should be checked for correct operation. If the brake lever cutoff switches, pedal assistance, or lighting functions abnormally, intermittently, or not working, please discontinue the use of your ebike immediately and contact the Fafrees Support team for assistance. Brakes Ensure that the brakes and their system components are free from damage, properly secured and working correctly.

  • Page 7: Charger Safety Information

    Fully charging the battery before each use can help extend the life of the battery and reduces the  chance of over-discharging. DO NOT charge the battery with any chargers other than the one originally supplied by Fafrees or a  charger designed for use with your specific bike purchased directly from Fafrees.

  • Page 8: General Operating Rules

    The charger is expected to get relatively warmer as it charged. If the charger gets too hot to touch,  you notice a strange smell, or any other indicator of overheating, discontinue using the charger and contact Fafrees Support. General Operating Rules Notice: Pay special attention to all the general operating rules below before operating your bike from Fafrees.

  • Page 9: General Warnings

    Always use the lowest assist level until you are comfortable with the bike and feel confident in controlling the power. Any aftermarket changes to your bike not expressly approved by Fafrees can void the warranty and  lead to unsafe riding experience.

  • Page 10: Specifications

    SPECIFICATIONS Model Name F20 Max Max. Load Capacity 330lbs. / 150 kg MAX.Speed 25 KMH Motor 48V 500W Brushless Hub Battery 48V 22.5AH Li-ion Wheel Size 20 x 4.0" Front / Rear Tire Pressure Inflation to 5-30 PSI Charger 48V 3.0A...

  • Page 11: Product Overview

    19) Rear light 9) Brake pad 20) Cargo rack 10) Brake caliper 21) Saddle 11) Front fork 22) Battery WHAT’S IN THE BOX 1*F20 Max ebike 1*Charger 1*Tool kit 1*Owner's manual 2*Wheel Reflector 2*Pedal 1*Bell 2*Footrest 1*Gift box (Including 1*Inner tube, 2*Valve caps, 4*Spokes, 2*wheel reflectors,...

  • Page 12: Installation Instruction

    INSTALLATION INSTRUCTION NOTICE: The following steps are only a general guide to assist in the assembly of your ebike and are not a complete or comprehensive manual of all aspects of assembly, maintenance, and repair. Consult a certified, reputable bike mechanic to assist with assembly, repair, and maintenance of your ebike. Step 1: Unpack the bike.
  • Page 13 Step 4: Pedal installation. Note the markings on the pedal screws and on the crank arms. Stamp with "L" is the left pedal, stamp with "R" is the right pedal, the right pedal is installed on the side of the sprocket. NOTE: The right pedal (pedal with "R"...

  • Page 14: Battery Charging

    BATTERY CHARGING Charging procedure Follow these steps for charging your ebike battery from Fafrees Bikes: 1. Ensure the battery is off. 2. Remove the rubber cover on the charging port. 3. Plug the charger into the battery ’ s charging port, BEFORE PLUGGING CHARGER INTO POWER OUTLET.

  • Page 15: Battery Charging Information

    In the case of damage to the terminals or battery mounts, please discontinue use and contact Fafrees Support immediately. INSTALLING THE BATTERY Ensure the battery is turned off.

  • Page 16: Tire Information

    TIRE INFORMATION F20 Max uses 20” x 4.0” rubber tires with inner tubes. The tires are designed for durability and safety for regular cycling activities and to be checked before each use for proper inflation and condition. Proper inflation, care, and timely replacement will help to ensure that your bike’...

  • Page 17: Getting Started

    QUICK START GUIDE GETTING STARTED Figure 1 YL80C display Button definitions: The YL80C display is equipped with five buttons on the corresponding operating unit: power button , plus button , minus button , light button and toggle button (the following is represented by the “i button”). Press the power button on the display control pad to turn on the bike.

  • Page 18: Electric Mode

    DO NOT attempt to operate your bike until you have adequate knowledge of its control and operation. Damage caused by failling to follow instructions is not covered under warranty and could result in serious injury or death. Contact Fafrees support if you have any questions about assembly or operation.
  • Page 19 Locking up your bike is recommended to ensure your bike is secure. Fafrees Bikes makes no claims  or recommendations on the proper lock hardware or procedures to secure your bike, but we do recommend you take appropriate precautions to keep your bike safe from theft.

  • Page 20: User Maintenance Instructions

    USER MAINTENANCE INSTRUCTIONS If you do not have the experience, skill, and tools to complete maintenance and adjustment of your bike, we strongly recommends having a certified, reputable bike mechanic to maintain, tune, and ensure the bike is safe to ride. Safety Checklist Before every ride, and after every 25-45 miles (40-72 km), we advise following the safety checklist.

  • Page 21: Troubleshooting

    Assembly and Ensure all power cables running to hub motor are secured and undamaged. Throttle Make sure the hub motor axle bolts are secured and the torque arm, torque arm bolt, and torque washers are in place. Battery Ensure battery is charged before use. Ensure there is no damage to battery.

  • Page 22: Limited Warranty

    For the avoidance of doubt, Fafrees will not be liable and/or responsible for any damage, failure or loss caused by any unauthorized service or use of unauthorized parts.
  • Page 23 Claims Process: Fafrees will not replace any covered components under this limited warranty without first seeing photos or video of the damaged covered components. In order to exercise your right to receive a replacement for a Covered Component under this Limited...
