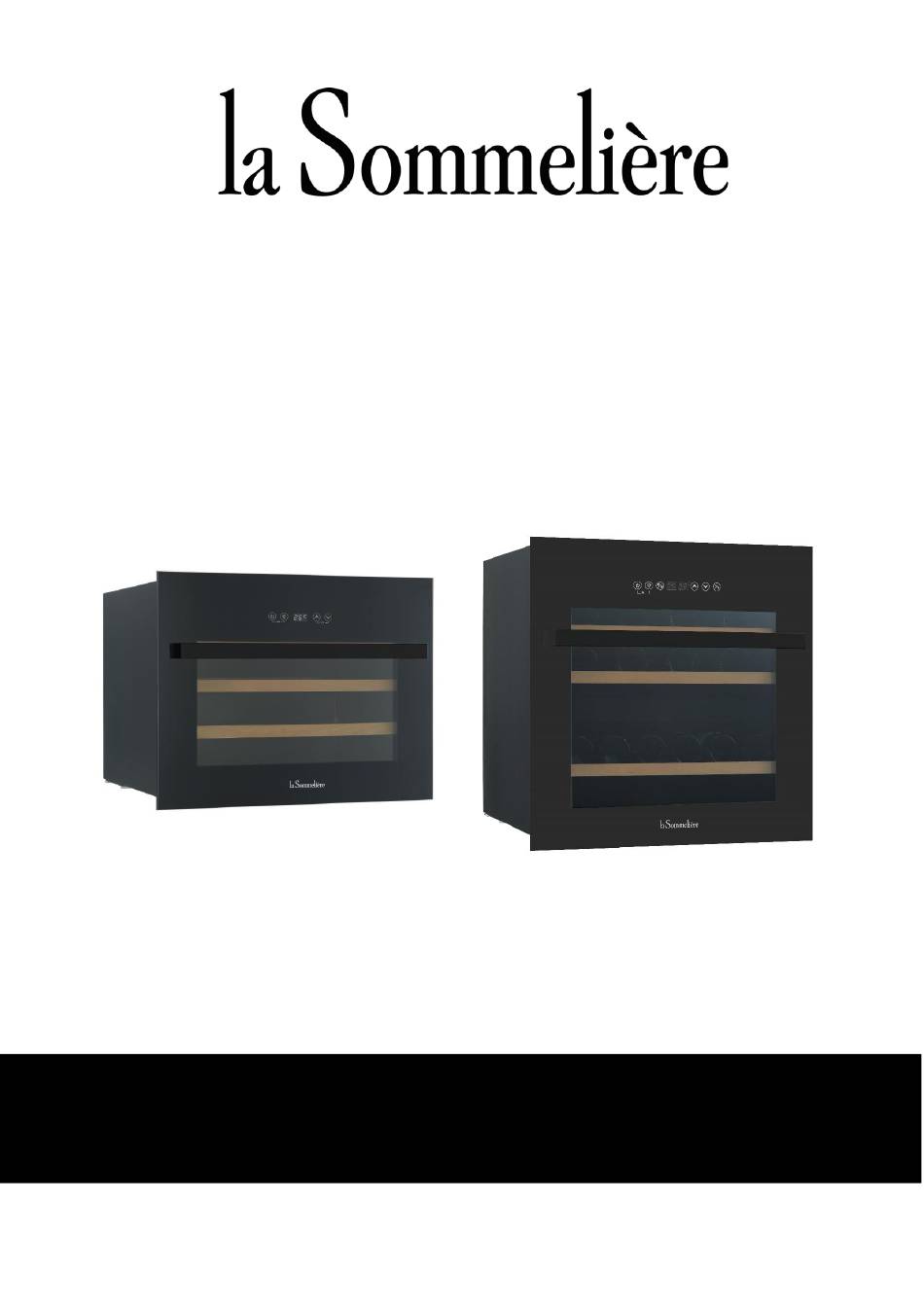

- Page 1 NOTICE D’UTILISATION Cave à vin de service encastrable en colonne Built-in wine cellar LSBI28B – LSBI36BDZ FR – MANUEL D’UTILISATION p. 1 GB – USE INSTRUCTIONS p. 27 DE – GEBRAUCHSANWEISUNG p. 51 NL – GEBRUIKSAANWIJZING p. 77 SP – MANUAL DE UTILIZACION p.
-
Page 2: General Safety Instructions
Before use, please read and follow the safety rules and operating instructions in this manual. Firstly, we would like to thank you for purchasing a LA SOMMELIERE product and hope that this appliance fully lives up to your expectations. This appliance enables you to bring your bottles at room temperature or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range. - Page 3 temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh. Make sure that your electrical installation's voltage corresponds to that on the appliance’s nameplate; the appliance must be connected to an approved, earthed system.
- Page 4 etc.) on electrical components (motor, etc.), disconnect the mains plug immediately. To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands. Keep the appliance away from any source of heat and out of direct sunlight.
- Page 5 out by children, unless they are more than 8 years old and are supervised. • Keep all packaging away from children as there is risk of suffocation. • Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
- Page 6 environments, ✓ Farm houses and by clients in hotels, motels and other residential type environments, ✓ Bed and breakfast type environments, ✓ Catering and similar non-retail applications. WARNING — To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. WARNING —...
- Page 7 authorized waste disposal center. Do not expose to flame. WARNING — The refrigerant of these appliances is R600A, flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused. Refrigerating fluid The refrigerating circuit in the appliance uses refrigerating isobutene (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment.
- Page 8 • Make sure that you can access the main plug of the appliance. • Do not pull the main cable. • Ensure that the appliance is always electrically earthed. • If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- Page 9 away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping beverages in normal household as explained in this instruction booklet. • The appliance is heavy. Care should be taken when moving it. If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements.
- Page 10 • Your device is not designed to be placed in a garage, basement, or similar location. • Avoid locating the unit in moist areas. • Keep the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
-
Page 11: Layout Recommendations
cooking hot plates or gas rings. • Check that electrical sockets remain accessible when the appliance is installed. • When positioning the appliance, ensure the supply cord is not trapped or damaged. Power saving To limit the electricity consumption of your appliance: ✓... -
Page 12: Safety Instructions
R600a Safety instructions Caution: Do not obstruct the ventilation grills on the appliance. Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance. Caution: Do not damage the refrigerating circuit in the appliance. Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the... - Page 13 2. DESCRIPTION OF THE APPLIANCE LSBI28B: 9. Upper hinge 2. Housing 2. Control panel 8. Door seal 4. Cover board 7. Handle 3. Shelf 6. Door 5. Lower hinge LSBI36BDZ: 9. Upper hinge 3. Housing 2. Shelf 8. Door seal 3.
-
Page 14: Technical Data
To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. -
Page 15: Installation Instructions
4. INSTALLATION INSTRUCTIONS Before using this appliance • Remove the exterior and interior packing. • Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. - Page 16 CLASS SYMBOL AMBIENT TEMPERATURES RANGE (°C) From +10 to +32 Extended temperate Temperate From +16 to +32 Subtropical From +16 to +38 Tropical From +16 to +43 Install the handle onto the door of wine cellar The handle is delivered in a separated package with screws together inside the carton.
- Page 17 Demonstration for building into the cabinet: LSBI28B : LSBI36BDZ :...
- Page 18 5. OPERATING INSTRUCTIONS It is recommended that you installed your appliance in a place where the ambient temperature is between 16-32°C. If the ambient temperature is higher or lower than the recommended temperature, the performance of the unit may be affected and it may not be possible to obtain the desired temperatures.
- Page 19 LSBI28B All keys would be invalid in lock mode. Please unlock first. A : ON/OFF 1. Keep pressing the key 3 seconds, power down, goes to stand-by mode. 2. Keep pressing the key again 3 seconds to return back to normal working.
- Page 20 The set temperature of the upper zone must be lower than that of the lower zone (LSBI36BDZ only). The device guarantees that the temperature is maintained as long as it is in operation and used under normal conditions of use. The temperature inside the appliance and its energy consumption can be influenced by many factors: ambient temperature, exposure to sunlight, number of door openings and quantity stored…...
- Page 21 7. LOADING LSBI36BDZ LSBI28B The advertised capacity is measured according to the EN62552 standard. This standard is calculated with 75cl traditional Bordeaux type bottles. Any other type of bottle format as well as the addition of shelves will considerably reduce the storage capacity. The maximum capacity is calculated with a defined number of shelves which vary according to the models.
-
Page 22: Care And Maintenance
Examples of serving temperatures To be observed when tasting, in order to avoid missing out on the rich aromas of your wines! Opinions vary, and the ambient temperature too, but many people agree on the following: Prestigious Bordeaux wines – Reds 16 –... -
Page 23: In The Event Of A Breakdown
Moving your wine cooler • Remove all items. • Securely tape down all loose items (shelves) inside your appliance. • Turn the adjustable leg up to the base to avoid damage. • Tape the door shut. • Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item. -
Page 24: Troubleshooting
10. TROUBLE SHOOTING You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE •... - Page 25 As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee. FRIO ENTREPRISE cannot be...
