La Sommeliere SLS90DZ Use Instruction

Hide thumbs Also See for SLS90DZ:

Advertisement

Table of Contents

Cave à vin de service Double zone
FR – MANUEL D'UTILISATION
DE – GEBRAUCHSANWEISUNG
SP – MANUAL DE UTILIZACION
NOTICE D'UTILISATION
2 compartments wine cellar
SLS90DZ
p. 1
p. 47
p. 95
GB – USE INSTRUCTIONS
NL – GEBRUIKSAANWIJZING
IT – MANUEL D'USO
p. 25
p. 71
p. 119

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLS90DZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Sommeliere SLS90DZ

Summary of Contents for La Sommeliere SLS90DZ

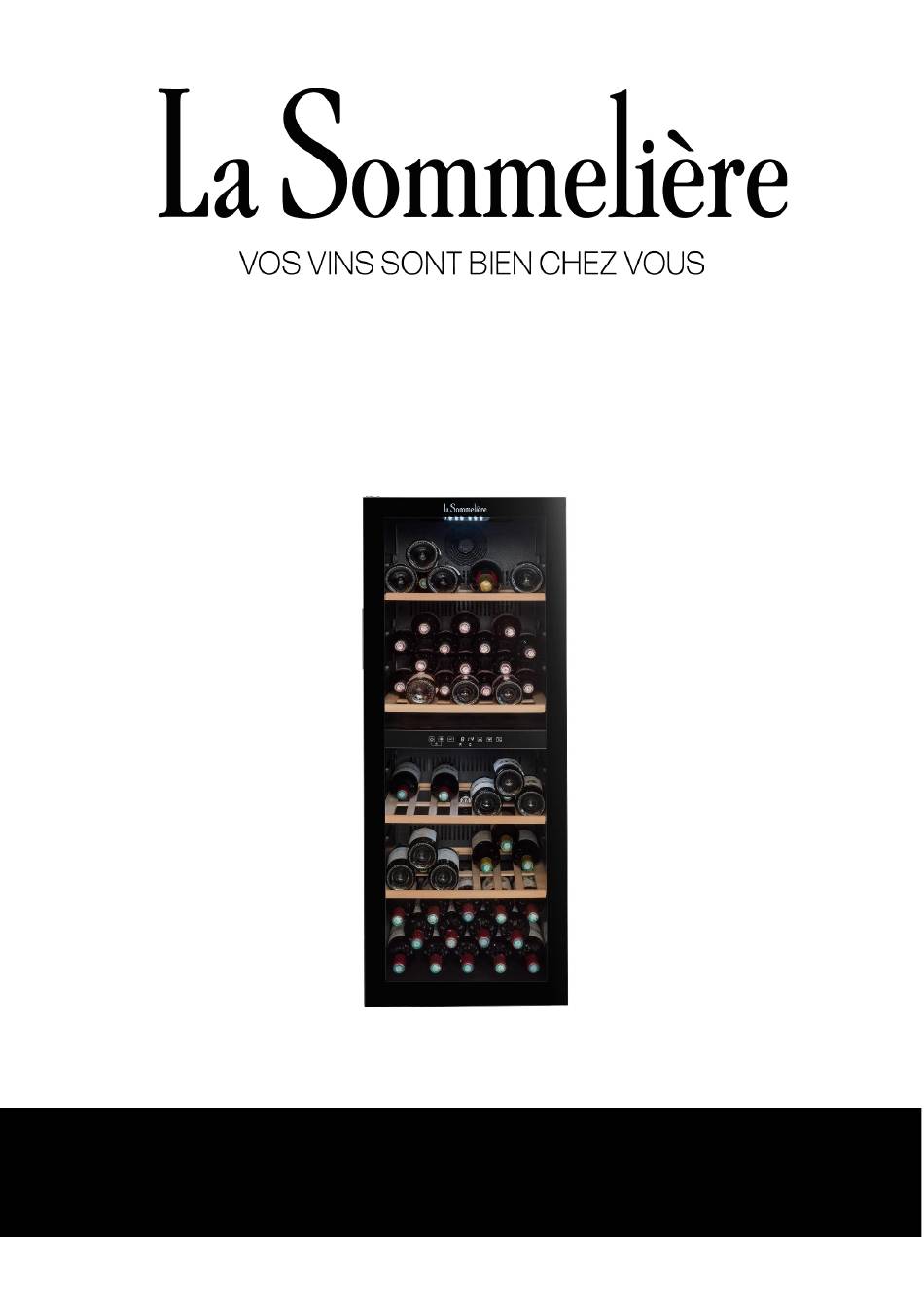

  • Page 1 NOTICE D’UTILISATION Cave à vin de service Double zone 2 compartments wine cellar SLS90DZ FR – MANUEL D’UTILISATION p. 1 GB – USE INSTRUCTIONS p. 25 DE – GEBRAUCHSANWEISUNG p. 47 NL – GEBRUIKSAANWIJZING p. 71 SP – MANUAL DE UTILIZACION p.

  • Page 2: General Safety Instructions

    Before use, please read and follow the safety rules and operating instructions in this manual. Firstly, we would like to thank you for purchasing a LA SOMMELIERE product and hope that this appliance fully lives up to your expectations. This appliance enables you to bring your bottles at room temperature or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.
  • Page 3 temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh. Make sure that your electrical installation's voltage corresponds to that on the appliance’s nameplate; the appliance must be connected to an approved, earthed system.
  • Page 4 etc.) on electrical components (motor, etc.), disconnect the mains plug immediately. To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands. Keep the appliance away from any source of heat and out of direct sunlight.
  • Page 5 out by children, unless they are more than 8 years old and are supervised. • Keep all packaging away from children as there is risk of suffocation. • Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
  • Page 6 environments, ✓ Farm houses and by clients in hotels, motels and other residential type environments, ✓ Bed and breakfast type environments, ✓ Catering and similar non-retail applications. WARNING — To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. WARNING —...
  • Page 7 authorized waste disposal center. Do not expose to flame. WARNING — The refrigerant of these appliances is R600A, flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused. Refrigerating fluid The refrigerating circuit in the appliance uses refrigerating isobutene (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment.
  • Page 8 • Make sure that you can access the main plug of the appliance. • Do not pull the main cable. • Ensure that the appliance is always electrically earthed. • If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
  • Page 9 away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping beverages in normal household as explained in this instruction booklet. • The appliance is heavy. Care should be taken when moving it. If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements.
  • Page 10 • Your device is not designed to be placed in a garage, basement, or similar location. • Avoid locating the unit in moist areas. • Keep the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
  • Page 11 cooking hot plates or gas rings. • Check that electrical sockets remain accessible when the appliance is installed. • When positioning the appliance, ensure the supply cord is not trapped or damaged. Power saving To limit the electricity consumption of your appliance: ✓...
  • Page 12 R600a Safety instructions Caution: Do not obstruct the ventilation grills on the appliance. Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance. Caution: Do not damage the refrigerating circuit in the appliance. Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the...

  • Page 13: Description Of The Appliance

    2. DESCRIPTION OF THE APPLIANCE 12. Upper hinge cover 11. Upper hinge 1. Housing 2. Cover board 9. Recessed Handle 3. Shelf 10. Door seal 4. Control panel 5. Sensor shield 8. Door 6. Adjustable foot 7. Lower hinge To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling).

  • Page 14: Technical Data

    3. TECHNICAL DATA Below is an example of the nameplate: The nameplate attached to the inside or rear of the appliance (depending on the model) includes the entire information specific to your appliance. We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.).
  • Page 15 • Adequate ventilation is required, do not block the front air outlet. • This wine cellar is designed for free-standing only, in no case it must be installed in a built-in or embeddable way. For a good functionality of the device it is imperative to leave a good air circulation all around the device.
  • Page 16 1. Close the door 2. Remove the hinge cover located in the upper right corner (1) 3. Unscrew the screw (2) 4. Remove the door hinge (3) 5. Remove the cover located in the upper left corner (4) 6. Gently lift the door until it comes out of the bottom hinge (5) 7.
  • Page 17 5. OPERATING INSTRUCTIONS It is recommended that you installed your appliance in a place where the ambient temperature is between 16-32°C. If the ambient temperature is higher or lower than the recommended temperature, the performance of the unit may be affected and it may not be possible to obtain a temperature between 5 and 20°C.
  • Page 18 When the control panel display flashes, it indicates the set temperature. IMPORTANT: to optimize the operation of the appliance, it is important to adjust the temperatures by respecting a maximum difference of 4°C between the upper and lower compartment (8 and 12°C for example).
  • Page 19 7. LOADING The advertised capacity is measured according to the EN62552 standard. This standard is calculated with 75cl traditional Bordeaux type bottles. Any other type of bottle format as well as the addition of shelves will considerably reduce the storage capacity. The maximum capacity is calculated with a defined number of shelves which vary according to the models.

  • Page 20: Care And Maintenance

    We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions. There are many others of all shapes and sizes. For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.

  • Page 21: In The Event Of A Breakdown

    Moving your wine cooler • Remove all items. • Securely tape down all loose items (shelves) inside your appliance. • Turn the adjustable leg up to the base to avoid damage. • Tape the door shut. • Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

  • Page 22: Troubleshooting

    10. TROUBLE SHOOTING You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE •...
  • Page 23 As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.
