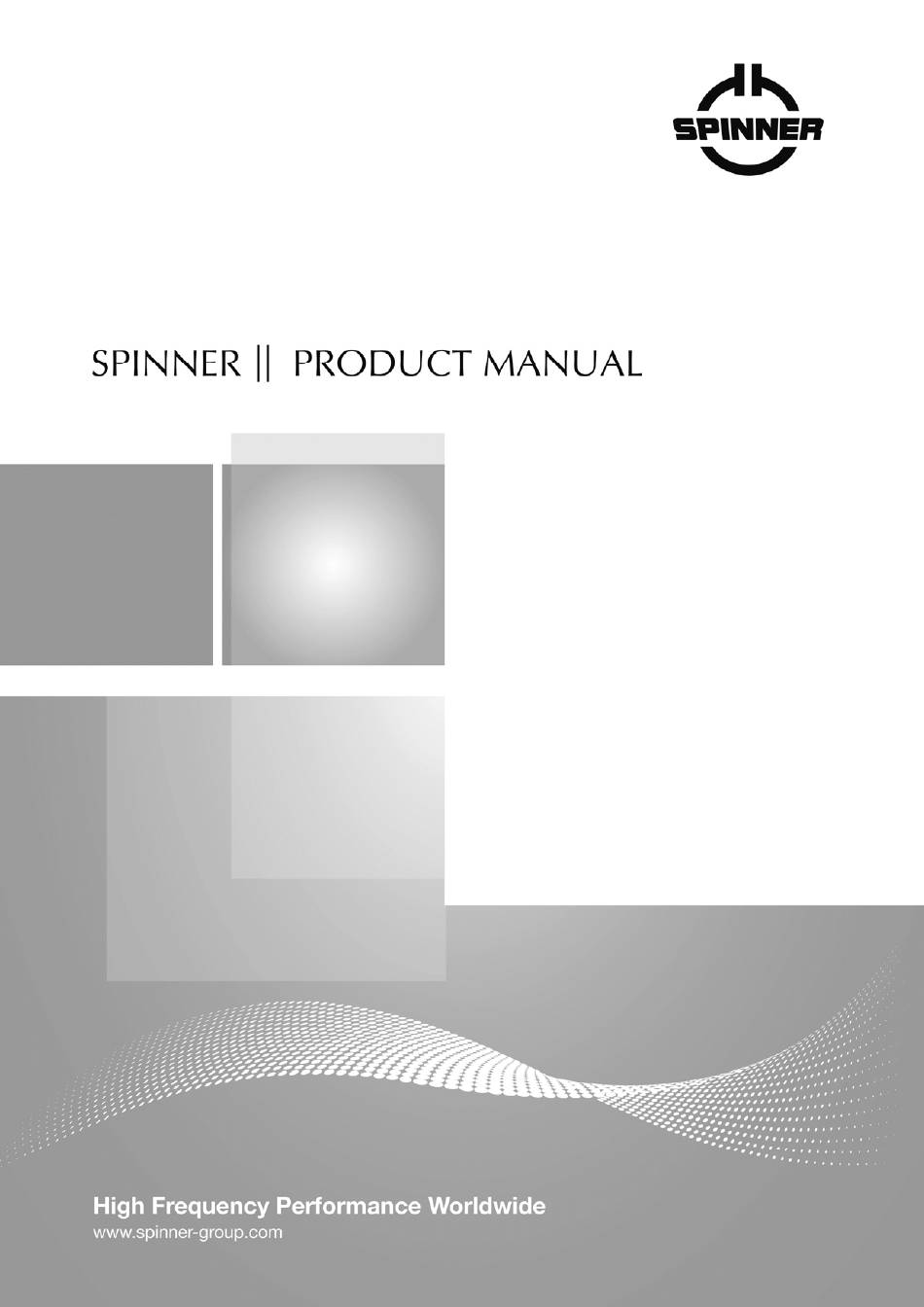

  • Page 1 OSL Calibration Kit 4.1-9.5 (50 ohms) BN 533832...
  • Page 2 Dear Customer, Thank you for the trust you have placed in us by buying a SPINNER calibration kit. Each SPINNER calibration kit is carefully tested and subject to strict quality controls by Spinner’s quality assurance. Nevertheless, the service life of a calibration kit depends to a great extent on you. Observe the information contained in these instructions and the enclosed documentation.
  • Page 3: Table Of Contents

        Spare parts ............................... 10     Disposal ..............................11     Warranty ..............................11     Contacts ..............................11     Data subject to change without notice │ M36264 │ Issue A │ 2013-12-05 3 / 11 www.spinner-group.com...
  • Page 4: General Safety Information

    The following instructions and safety instructions are to be carefully read and followed! The Spinner group makes every effort to keep the safety standard of our products up to date to be able to offer our customers the highest possible degree of safety. Our products are designed and tested in accordance with the relevant safety standards.
  • Page 5 Repair must be carried out only by the manufacturer or technical personnel authorized by the manufacturer. Unless otherwise specified, Spinner products are not protected against penetration of liquids, gases, steam, etc. If this is not taken into account, there exists the danger of electric shock for the user or damage to the product, which can also lead to personal injury.
  • Page 6: Product Identification

    Product Identification The SPINNER calibration kit BN 533832 has a type label on the top of the box containing the following information for product identification: OSL- Calibration Kit 4.1-9.5 (50 Ohms) BN 533832 (SPINNER part number) Ser. No: XXX (Serial number)
  • Page 7: Offset Opens And Shorts

    The electrical, mechanical and environmental specifications of the calibration kit are given in the data sheet file “533832-BE.pdf” on the USB stick. The data sheet is also available for download at www.spinner-group.com. Temperature changes may have an impact on electrical characteristics. Therefore, ATTENTION the operating temperature is a critical performance factor.
  • Page 8: Cleaning Connectors

    (e.g. swabs with polyvinylidene fluoride tip). • Never put lateral pressure on the connector’s inner conductor. • The inner conductor does not require cleaning. Data subject to change without notice │ M36264 │ Issue A │ 2013-12-05 8 / 11 www.spinner-group.com...
  • Page 9: Gauging Connectors

    Temperature of the gauge and the kit component has to be within 23°C ± 5°C The permissible pin depth test results, considering a measurement uncertainty of a measurement done with a new SPINNER gauge and the mentioned conditions, are shown in data sheet file “533832-BE.pdf” on the USB stick.
  • Page 10: 10. Handling And Storage

     a new calibration sticker affixed to the case  a calibration certificate Spare parts Components included in the calibration kit BN 533832: Ordering Number Component Quantity per kit BN 533747 Open plug BN 533746...
  • Page 11: Disposal

    Components not included in the calibration kit BN 533832, offering additional options: Ordering Number Component BN 537022 Dial gauge plug (includes reference gauge) BN 537023 Dial gauge socket (includes reference gauge) BN 983719 Through plug-plug BN 983720 Through socket-socket BN 983721...
