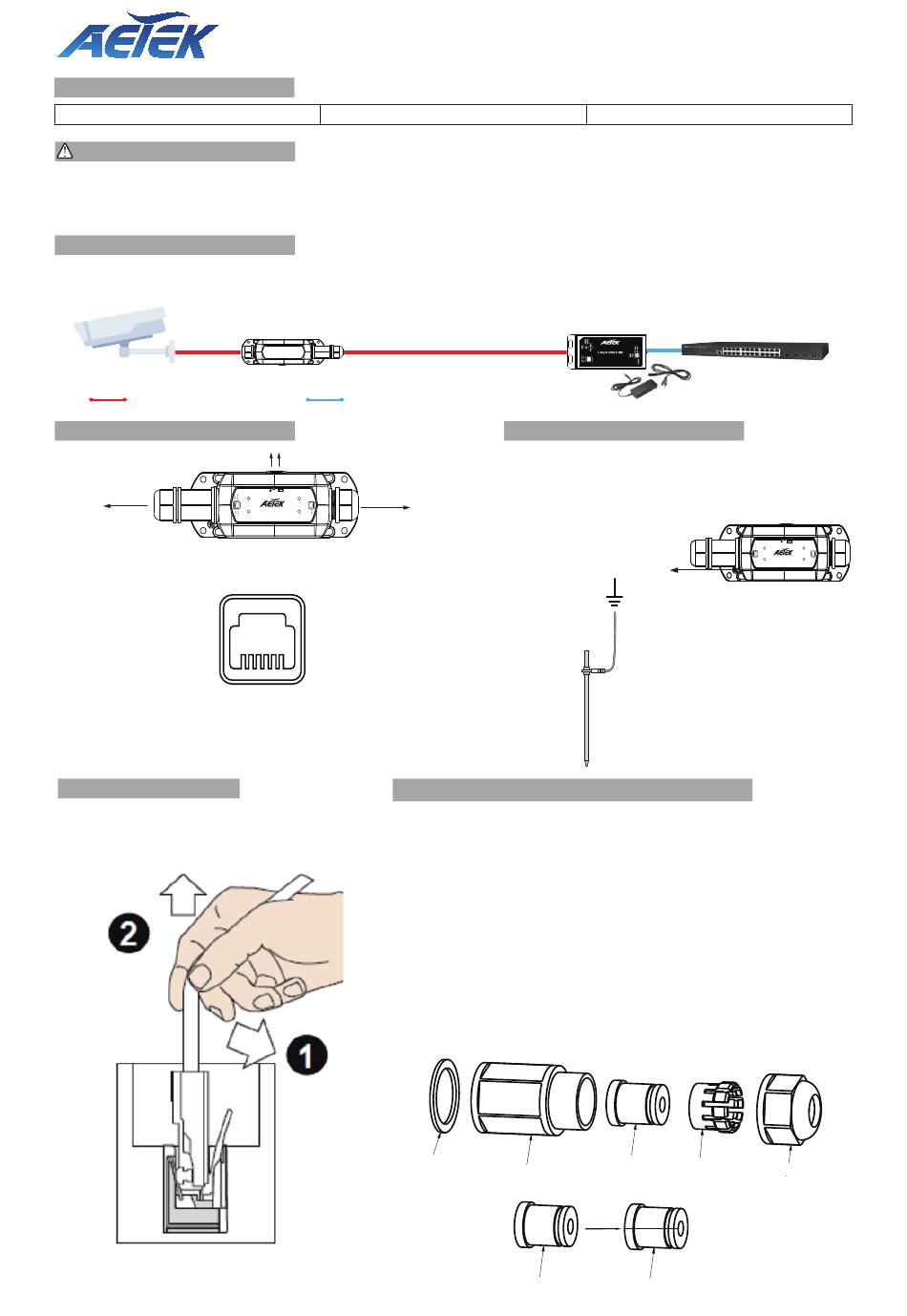

AETEK TE22-110-TX-V2 Quick Installation Manual

PACKAGE CONTENTS
* 1x EPoT dapter
IMPORTANT:
1. Use CAT5e or CAT6 UTP/STP cables.
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
3. Make sure the power source is sufficient for your configuration.
CONNECTION
Application :
Cat.5e/6 PoE (Data + Power)
INSTALLATION
TE22-110-TX-V2
Join Button
EPoT Link
Connect to EPoT RX
EPoT Cat.5e/6 LINK pin assignment
5-8 Pin V+
To make 1 pair, using one (V+) wire and one (V-) wire
For Example: use pin 3 (V-) and pin 6 (V+) to make 1 pair
Outdoor LAN Port
To disconnect a LAN cable, loosen the cable
gland and pull the cable against the socket
wall towards the side of the locking tab.
TE22-110-TX-V2 Outdoor EPoC Adapter
* 1x Quick Installation Guide
TE22-110-TX-V2
Ethernet (Data)
PoE On/Off Switch
PoE
JOIN
OFF / ON
LINK LAN
Outdoor 1-Port EPoT TX
PWR PoE
++++ ---- 1-4 Pin V-
Outdoor 4 Pair LINK Port Connector Assembly
IMPORTANT -
please follow the procedures below carefully to ensure the best seal:
1. Fit a RJ45 plug to the Cat5e/6 cable
2. Thread the Cat5e/6 cable through the cap(A) & grip(B)
3. Split rubber(C), rubber have two sizes for meet 4.5~6.5mm Cat5e/6 cable.
4. Fit the split rubber(C) over the Cat5e/6 cable
5. Thread the Cat5e/6 cable through the body(D)
6. Fit the washer(E) to the TE22-110-TX-V2 connector
7. Plug the RJ45 connector on the Cat5e/6 cable into the TE22-110-TX-V2
8. Hold TE22-110-TX-V2 and then screw the body(D) onto the TE22-110-
9. Push rubber(C) in the grip(B) and screw the cap tighten firmly. The
Quick Installation Guide
TE11-110-RX-V2
Cat5e/6 cable
IMPORTANT:
NOTE:
The TE22-110-TX-V2 Outdoor EPoT Adapter must
be grounded using a ground wire between the
Connect to
ground screw and earth ground.
PoE IP Camera
TX-V2 connector tighten firmly
Cat5e/6 cable is sealed when the rubber(C) & grip(B) bulges to the edge
of the cap(A).
Washer (E)
Body (D)
Rubber (C)
* Waterproof Connect
C60-00F-01
Ground screw
Rubber (C) Grip (B)
Split
Rubber (C)
JOIN PoE
LINK OFF / ON LAN
Outdoor 1-Port EPoT TX
PWR PoE
Cap (A)
