Wall bed
Hide thumbs

Advertisement

Table of Contents

8766306COMS (Federal White)
8766348COMS (Reclaimed Oak)
Wall Bed
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Visit: www.dorelhome.com
to view the limited warranty valid
in the U.S. and Canada.
THIS INSTRUCTION BOOKLET CONTAINS WARNINGS AND
PRODUCT SAFETY INFORMATION. DO NOT PROCEED WITHOUT
REVIEWING THOROUGHLY. FOR ANY QUESTIONS, CONTACT
CUSTOMER SERVICE.
Difficulty Meter
Easy
B348766000COMS0
Professional
(see page 2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8766306COMS and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products 8766306COMS

Summary of Contents for Dorel Home Products 8766306COMS

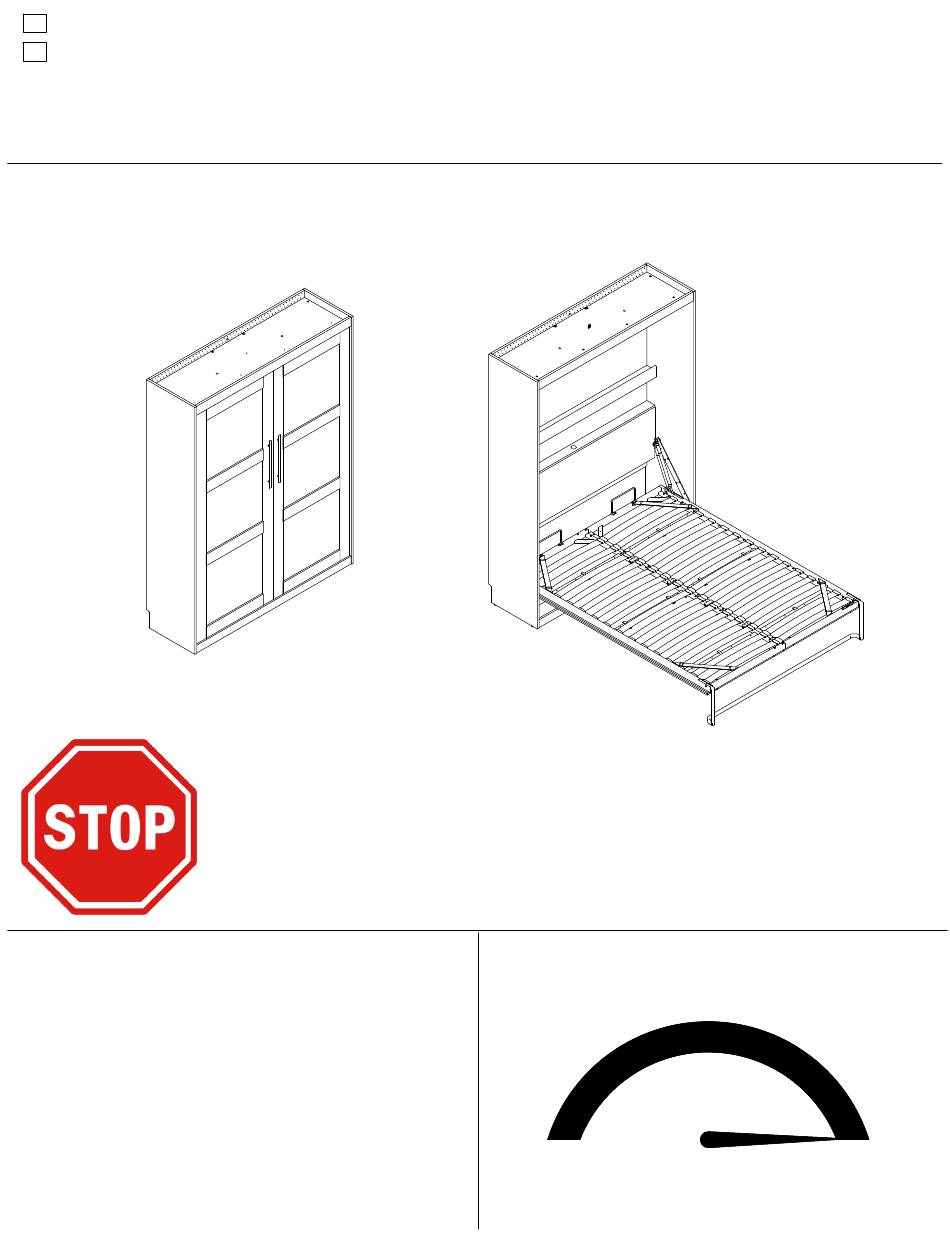

  • Page 1 8766306COMS (Federal White) 8766348COMS (Reclaimed Oak) Wall Bed B348766000COMS0 Date of Purchase ___ / ___ / ___ Lot Number: THIS INSTRUCTION BOOKLET CONTAINS WARNINGS AND PRODUCT SAFETY INFORMATION. DO NOT PROCEED WITHOUT REVIEWING THOROUGHLY. FOR ANY QUESTIONS, CONTACT CUSTOMER SERVICE.
  • Page 2 Part 1 - Installation • Installation steps will require the use of one professional and one other person to assist. • The second person must be able to lift wall bed components and hold them in position while the professional installs hardware.

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order. Separate and count all your parts and hardware before attempting assembly. Parts are labeled on the surface or edge of the part Open your item in an area you plan to keep it. Give yourself enough room for the installation and assembly process.

  • Page 4: Board Identification

    Board Identification Not actual size dorelhome.com...
  • Page 5 Board Identification parts for 8766348COMS (Reclaimed Oak) parts for 8766306COMS (Federal White) Parts List Parts List ITEM QTY PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 38766306010 LEFT PANEL 38766348010 LEFT PANEL 38766348020 RIGHT PANEL 38766306020 RIGHT PANEL 38766306030 38766348030 38766348040...

  • Page 6: Part List

    WARNING! CHOKING HAZARD - Hardware bag contains small parts. Keep out of reach of children. Part List Note that your unit may Actual Size contain extra hardware (x8) (x30) (x30) (x16) #A13950 #A22610 #A12105 #A22620 #8 x 3-1/2" pan head cam bolt cam lock #8 x 7/16"...
  • Page 7 WARNING! CHOKING HAZARD - Hardware bag contains small parts. Keep out of reach of children. Part List Not Actual Size shown on page 36 (x1) A99570 (x1) dual LED light kit A81340 touch sensor disk (x2) (x8) A50591 #A15560 handle #3/16 x 3-1/4"...
  • Page 8 Bed Frame Identification Not Actual Size Note: Not all parts will be identified. Mattress Holder (2) Right Assembly Left Assembly 9632096-19c 9632096-19d 9632096-19a 9632096-19b Right Pivot Arm Wood Slat (30) Plastic Cap (60) Left Pivot Arm Gas Piston (4) U-Bracket (4) 9632096-19f 9632096-19e 9632096-19g...

  • Page 9: Part 1 - Installation

    Part 1 - Installation Installation steps will require the use of one professional and one other person to assist. Installation steps will cover pages 10-34. Professional is required for: • all hardware fastening steps • identifying wall structure and appropriate attachment hardware to use •...
  • Page 10 STEP 1 (x2) (x4) (x6) Proper orientation of Cam Lock Proper orientation of Cam Lock dorelhome.com...
  • Page 11 STEP 2 Proper orientation of Cam Lock (x4) (x8) Proper orientation of Cam Lock dorelhome.com...
  • Page 12 STEP 3 (x6) (x8) (x3) Proper orientation of Cam Lock Proper orientation of Cam Lock dorelhome.com...
  • Page 13 STEP 4 (x6) (x2) (x4) Proper orientation of Cam Lock Proper orientation of Cam Lock dorelhome.com...
  • Page 14 STEP 5 (x12) dorelhome.com...
  • Page 15 STEP 6 (x3) (x4) dorelhome.com...
  • Page 16 STEP 7 (x3) (x4) dorelhome.com...
  • Page 17 STEP 8 (x3) (x4) dorelhome.com...
  • Page 18 STEP 9 (x1) (x4) (x8) (x2) Proper orientation of Cam Lock Proper orientation of Cam Lock dorelhome.com...
  • Page 19 STEP 10 (x15) dorelhome.com...
  • Page 20 STEP 11 (x8) (x1) The Left Pivot Arm (19e) is located in the 9632096COM Wall Bed Mechanism box dorelhome.com...
  • Page 21 STEP 12 (x15) dorelhome.com...
  • Page 22 STEP 13 (x8) (x1) The Right Pivot Arm (19f) is located in the 9632096COM Wall Bed Mechanism box dorelhome.com...
  • Page 23 STEP 14 Turn clockwise to lock in place dorelhome.com...
  • Page 24 STEP 15 Turn clockwise to lock in place dorelhome.com...
  • Page 25 STEP 16 Turn clockwise to lock in place turn clockwise to lock in place dorelhome.com...
  • Page 26 STEP 17 Turn clockwise turn clockwise to lock in place to lock in place dorelhome.com...
  • Page 27 STEP 18 LOCK UNLOCK dorelhome.com...
  • Page 28 STEP 19 LOCK UNLOCK dorelhome.com...
  • Page 29 STEP 20 dorelhome.com...
  • Page 30 STEP 21 1 " LOCK UNLOCK dorelhome.com...
  • Page 31 STEP 22 LOCK UNLOCK dorelhome.com...
  • Page 32 STEP 23 LOCK UNLOCK dorelhome.com...
  • Page 33 STEP 24 LOCK UNLOCK dorelhome.com...
  • Page 34 STEP 25 (x4) (x4) With help, lay the unit onto it's front. Tap in bushings (7) with a hammer. Screw in adjustable glides (6) all the way. dorelhome.com...
  • Page 35 STEP 26 The next steps are to assemble your electrical hardware Cord length information: 1. The power supply cord is 72" from transformer to the plug's tip 2. The loop wire for the sensor disk, from the transformer is 48" to the center of the loop 3.
  • Page 36 STEP 27 LED Light Kit Assembly Open the package for the LED Light Kit. Everything will be assembled together. First, unclip the LED Light from the Light Plug as shown... unclip light plug LED light Second, you must disassemble the LED Light. Unscrew the cover off the base and then remove the lens piece.
  • Page 37 STEP 28 (x1) (x2) (x1) Place transformer (20a) in the location shown. Thread the power supply plug (20b) in front of the Bottom Stringer (K) if needed for power source. dorelhome.com...
  • Page 38 STEP 29 (x1) Stand the unit upright with the help of another person. During these steps, allow the other person to securely hold unit from tipping over. Place touch sensor disk (21) in location shown in Lower Shelf (M). dorelhome.com...
  • Page 39 STEP 30 (x1) (x1) With the help of another person holding unit steady upright, take the Loop Sensor (20c) that is connected to the Transformer (20a) and place underneath Lower Shelf (M) at the hole location of the Touch Sensor Disk (21). Thread screw (13) through the Loop Sensor and screw into Touch Sensor Disk (21).
  • Page 40 STEP 31 (x2) (x2) With the help of another person holding the unit steady upright, assemble disassembled LED lights (20d) to the Top (C) with screw (11). Thread the LED lights (20d) wires through the holes provided in Top (C) to allow the wires on top of Top (C). dorelhome.com...
  • Page 41 STEP 32 (x2) With the help of another person holding the unit upright steady, feed the LED light wires through the wire saddle (17) in the Top (C). Pull wires behind the back of the unit. Clip the Light Plugs (20d) (that is fixated into the transformer) back into the LED light wires. dorelhome.com...
  • Page 42 STEP 33 Assemble the LED lights back together. First placing the lens into the base and then screwing the cover back to the base as shown below. Adjust any wires necessary as needed. Assure the Power Supply Plug is threaded where the attended power outlet is located.
  • Page 43 STEP 34 Using a level, be sure the unit is square (height, width, and depth) to function properly Please note on the following steps: The Valance (E) has been removed to better show the holes in the Upper Back Panel (G). A ladder will be required.
  • Page 44 The next steps are to attach your unit to the wall. Wall attachment steps will cover pages 44-51. The following steps are required to be completed by a professional. The second person may assist by holding the cabinet in position while the professional completes alignment, leveling and installation steps.
  • Page 45 What type of wall do you have? For Steps 35 & 36 you will need to choose between two types of screws to use based on the type of wall you are installing this product to. Wooden & Metal Studs - Follow Steps 35 & 36 - Wooden &...
  • Page 46 STEP 35 - Wooden & Metal Studs Locate at least 3 DIFFERENT studs, in the horizontal direction, but 4 is better. Locate the studs in the wall, using a stud finder. Average distance between studs (16") Using a pencil, mark the Wall Studs stud locations on the upper surface of the Upper Back...
  • Page 47 STEP 36 - Wooden & Metal Studs (x8) (x8) First, make sure that your unit is still level in all directions. As shown in the view to the right, fasten the unit to the wall studs with screw (3) and washer (24).
  • Page 48 STEP 36 continued... Example of 4 screws being placed horizontally in wall studs on part G and part L. Please note this is just an example - all wall stud distances are different. dorelhome.com...
  • Page 49 STEP 35 - Concrete Choose 4 horizontal predrilled holes equally across the Upper Back Panel (G). Carry and use the same predrilled holes down to the Bottom Stringer (L). Using a pencil, mark the locations on the upper surface of the Upper Back Panel (G) where the predrilled holes are provided.
  • Page 50 STEP 36 - Concrete (x8) (x8) First, make sure that your unit is still level in all directions. As shown in the view to the right, fasten the unit to the concrete wall with screw (23) and washer (24). The view shows the Upper Back Panel (G) but do the same for Bottom Stringer (L).
  • Page 51 STEP 36 continued... Example of 4 screws being placed horizontally in wall studs on part G and part L. Please note this is just an example - all wall stud distances are different. dorelhome.com...
  • Page 52 Part 2 - Assembly The next steps are to assemble the metal bed frame mechanism and door panels. Assembly steps will cover pages 53-66. As mentioned on page 2: Choose one of the two options below... • You may continue to use the Professional and a second person, •...
  • Page 53 STEP 37 (x3) (x4) (x1) (x1) First, press each rubber foot (19u) into each hole in the Leg (19c) as shown below. Then, join and assemble the Left & Right bed frame assemblies (19a & 19b) as shown below using bolts (19o) with the provided hex key (19s). You may use a rubber mallet to help join the two frame assemblies.
  • Page 54 STEP 38 (x8) (x8) (x1) (x4) Place the four U-Brackets (19i) in the locations. Use the bolts (19o) and washers (19q) to assemble the U-Brackets (19i) to the joined bed frame assemblies (19a & 19b) as shown. Use the provided hex key (19s) to assemble.
  • Page 55 STEP 39 (x1) (x4) (x2) Assemble the mattress holders (19d) to the frame assemblies (19a & 19b) with bolts (19p) as shown to the right. Use the provided hex key (19s) to assemble. dorelhome.com...
  • Page 56 STEP 40 (x4) (x4) (x4) long end short end Assemble two pistons (19h) to each side of the bed frame assembly with clevis pins (19l) and secure each one with a cotter pin (19n). long end The "long" end of each piston is to be fastened to the frame long end The ends of both pistons need...
  • Page 57 STEP 41 (x1) (x2) (x2) The cabinet is not shown to allow a clear view of the bed frame assembly With a person on each side, lift the bed assembled bed frame, line up the holes of the frame assembly with the large bushing hole of the Left and Right Pivot Pistons have been arm (19e &...
  • Page 58 STEP 42 Critical Step... Please read directions carefully! (x4) (x1) With a person on each side, carefully lift the bed frame in the closed position. While one person pushes the bed frame into the cabinet, beyond the 90 degrees, the other person is to engage the "front" Gas Piston (19h) on each side of the unit, to the front pin of the Left and Right Pivot Arm (19e &...
  • Page 59 STEP 42 continued... This image shows the bed frame pushed into the cabinet, beyond 90 degrees. BED FRAME 90 DEGREES (WHEN THE BED FRAME IS IN THE UPRIGHT MOST POSITION) Please note: it is normal to see the bed frame in this state prior to the gas pistons being installed.
  • Page 60 STEP 43 (x2) (x1) (x2) Be sure the bed frame is fully assembled to the unit cabinet. (This step could use both people). Once certain, carefully pull the bed frame down, then assemble the Leg (19c) as shown with the clevis pins (19m) and cotter pins (19n). The cabinet is not shown to allow a clear view of the bed frame assembly...
  • Page 61 STEP 44 (x4) (x1) (x2) (x8) Proper orientation of bracket dorelhome.com...
  • Page 62 STEP 45 (x4) (x1) (x2) (x8) Proper orientation of bracket dorelhome.com...
  • Page 63 STEP 46 IMPORTANT: First, unlock and flip the leg into the cabinet. Then, lower the bed frame down a bit to allow clearance to hook Door Panels (P&Q). This step could use both people. Carefully lift the Left Door Panel (P), position the Brackets (16) over the three Support Rails of the Bed Frame, and drop into position.
  • Page 64 STEP 47 (x32) Carefully pull the bed frame open. (This could take both people). Line up the holes of the bed frame with the holes in Panels (P&Q) and fasten with Screws (10). The cabinet is not shown to allow a clear view of the bed frame assembly dorelhome.com...
  • Page 65 STEP 48 (x30) (x60) (x4) Fasten Stop Rail (O) to the underside of Top (C) with Screws (10) Press a Plastic Cap (19j) at each end of a Wood Slat (19g). Press both Plastic Caps (19j), attached to the Wood Slat, into the holes of the Metal Bed Frame.
  • Page 66 STEP 49 Front of unit is not shown to allow a clear view of the kick open frame slightly and bottom While one person slightly opens the bed frame and holds it in place, insert the connector bolts installed in the Kick (F) into the connectors of the Bottom (D).
  • Page 67 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. This bed is designed to accommodate a Queen Size Mattress, up to 10" inches thick. * with a maximum weight of 70 lbs (31.8 kgs) * with a minimum weight of 35 lbs (15.9 kgs) After you have finished installing and...
  • Page 68 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased product and leave us some feedback! dorelhome.com...
  • Page 69 Español Portada: Cama de pared Queen Size ADVERTENCIAS E INFORMACIÓN SOBRE LA SEGURIDAD DEL PRODUCTO. NO PROCEDA SIN REVISAR DETENIDAMENTE. ANTE CUALQUIER PREGUNTA, CONTÁCTESE CON EL SERVICIO DE ATENCIÓN AL CLIENTE. ¡No devuelva este producto! Contáctese primero con nuestro equipo del servicio de atención al cliente para obtener ayuda. Llame: 1-800-489-3351 (gratuito) Visite: www.dorelhome.com Para ver la garantía limitada válida...
  • Page 70 Español Parte 2: Montaje - Los pasos del montaje requieren emplear a dos personas que deberán ser capaces de alzar y fijar las partes de la cama con elementos de ferretería: - Puede seguir empleando al profesional y a una segunda persona, o bien - Emplear a dos personas que tengan experiencia en el montaje de muebles listos para montar.
  • Page 71 Español Página 4-5: Identificación de la placa Tamaño no real K - panel de cabecera A - panel izquierdo L - larguero inferior B - panel derecho M - estante inferior C - parte superior N - riel de estantería D - parte inferior O - tope de riel E - cenefa...
  • Page 72 Español Página 8: Identificación del marco de la cama No es el tamaño real No todas las partes estarán identificadas. 19l - Pasador de horquilla grande 19a - Montaje izquierdo 19m - Pasador de horquilla pequeño 19b - Montaje derecho 19n - Pasador de chaveta 19c - Pata 19o - Perno M6 x 16 mm...
  • Page 73 Español Página 10, 11, 12, 13, 18: Orientación correcta del acoplamiento camlock Página 20: El brazo giratorio izquierdo (19e) se encuentra en la caja del Mecanismo de cama de pared 9632096COM Página 22: El brazo giratorio derecho (19f) se encuentra en la caja del Mecanismo de cama de pared 9632096COM Página 23, 24: Gire en el sentido de las agujas del reloj para bloquearlo en su lugar.
  • Page 74 Español 20c. Cable de bucle del sensor 20d. Luces LED dobles con conectores Disco de sensor táctil (empacado por separado) El disco de sensor táctil tiene 3 opciones de brillo. - Toque 1 - luz nocturna - Toque 2 - luz ahorradora - Toque 3 - luz de lectura brillante - Toque 4 - apagar Nota: Las herramientas de ensamblaje no están incluidas en estos paquetes,...
  • Page 75 Español Página 38: Coloque la unidad en posición vertical con la ayuda de otra persona. Durante estos pasos, permita que la otra persona sostenga firmemente la unidad y evite que se vuelque. Coloque el disco de sensor táctil (21) en el lugar indicado en el Estante inferior (M). Página 39: Con la ayuda de otra persona que mantenga la unidad en posición vertical, tome el Sensor de bucle (20c) que está...
  • Page 76 Español Página 43: Utilizando un nivel, asegúrese de que la unidad está a escuadra (altura, ancho y profundidad) para que funcione correctamente. Si es necesario, desenrosque los Deslizadores en sentido contrario a las agujas del reloj en las 4 esquinas hasta que la unidad esté...
  • Page 77 Español Página 46: Encuentre al menos 3 montantes DIFERENTES en dirección horizontal, pero es mejor usar 4. Encuentre los montantes en la pared utilizando un localizador de montantes. Con un lápiz, marque la ubicación de los montantes en la superficie superior del Panel trasero superior (G), en el que se encuentran los huecos pretaladrados.
  • Page 78 Español Página 51: Ejemplo de 4 tornillos colocados horizontalmente en montantes en la parte G y L. Por favor tenga en cuenta que esto es solo un ejemplo. Todas las distancias de los montantes son diferentes. Página 52: Los siguientes pasos son para ensamblar el mecanismo metálico del marco de la cama y los paneles de las puertas.
  • Page 79 Español Página 56: Extremo largo. Extremo corto. Ensamble dos pistones (19h) a cada lado del marco de la cama utilizando pasadores de horquilla (19l) y fije cada uno con un pasador de chaveta (19n). El extremo "largo" de cada pistón debe fijarse al marco. Los extremos de ambos pistones deben ser insertados en la ranura del marco durante el ensamblaje.
  • Page 80 Español Página 60: Asegúrese de que el marco de la cama está completamente ensamblado al armario. (Es mejor realizar este paso entre dos personas). Una vez seguro, tire con cuidado el marco de la cama hacia abajo y luego monte la Pata (19c) como se muestra con los pasadores de horquilla (19m) y los pasadores de chaveta (19n).
  • Page 81 Español Página 66: No se muestra la parte frontal de la unidad para permitir una vista clara del zócalo y el fondo. Abra ligeramente el marco. Mientras una persona abre ligeramente el marco de la cama y lo mantiene en su sitio, inserte los pernos conectores instalados en el Zócalo (F) en los conectores de la Parte inferior (D).
  • Page 82 Español Página 67: Cargas máximas Esta unidad ha sido diseñada para soportar las cargas máximas mostradas. Exceder estos límites de carga podría generar un hundimiento, inestabilidad, el desplome del producto o lesiones graves. Esta cama está diseñada para alojar un colchón queen size de hasta 10 pulgadas de grosor. * con un peso máximo de 70 lb (31,8 kg) * con un peso mínimo de 35 lb (15,9 kg) Una vez que haya terminado de instalar y montar la cama abatible, conserve el manual de...
  • Page 83 Français Page de couverture : Lit mural Queen Size AVERTISSEMENTS ET INFORMATIONS RELATIVES À LA SÉCURITÉ DU PRODUIT. NE PROCÉDEZ PAS SANS LES LIRE ATTENTIVEMENT. POUR TOUTE QUESTION, CONTACTEZ LE SERVICE CLIENTÈLE. Ne renvoyez pas ce produit! Contactez d'abord notre service clientèle pour obtenir de l'aide. Appelez-nous : 1-800-489-3351 (gratuit) Rendez-vous sur : www.dorelhome.com pour consulter la garantie limitée valable aux États-Unis et au Canada.
  • Page 84 Français Partie 2 - Assemblage - Les étapes d'assemblage nécessitent l'intervention de deux personnes qui doivent être en mesure de soulever et de fixer les pièces du lit à l'aide de la quincaillerie : - Vous pouvez continuer à utiliser le professionnel et une deuxième personne, ou - Faites appel à...
  • Page 85 Français Page 4-5 : Identification du panneau Taille non réelle K - panneau de tête de lit A - panneau gauche L - longeron inférieur B - panneau droit M - tablette inférieure C - haut N - rail d'étagère D - bas O - rail d'arrêt E - valance...
  • Page 86 Français Page 8 : Identification du cadre de lit Pas la taille réelle Toutes les pièces ne sont pas identifiées. 19l - Grand axe de chape 19a - Assemblage gauche 19m - Petit axe de chape 19b - Assemblage droit 19n - Goupille fendue 19c - Pied 19o - Boulon M6 x 16 mm...
  • Page 87 Français Page 10, 11, 12, 13, 18 : Orientation correcte de la serrure à came Page 20 : Le bras pivotant gauche (19e) se trouve dans la boîte du mécanisme de lit mural 9632096COM. Page 22 : Le bras pivotant droit (19f) est situé dans la boîte du mécanisme du lit mural 9632096COM. Page 23, 24 : Tournez dans le sens des aiguilles d'une montre pour verrouiller en place Bord brut...
  • Page 88 Français Disque du capteur tactile (emballé séparément) Le disque de détection tactile a trois options de luminosité. - Touche 1 : lumière de nuit - Touche 2 : lumière d'économie d'énergie - Touche 3 : lumière de lecture brillante - Touche 4 : éteignez Veuillez noter que le matériel d'assemblage n'est pas inclus dans ces paquets.
  • Page 89 Français Page 39 : Avec l'aide d'une autre personne qui maintient l'appareil en position verticale, prenez le capteur à boucle (20c) qui est connecté au transformateur (20a) et placez-le sous l'étagère inférieure (M) à l'emplacement du trou du disque du capteur tactile (21). Faites passer la vis (13) à travers le capteur à boucle et vissez-la dans le disque du capteur tactile (21).
  • Page 90 Français Page 44 : Les étapes suivantes consistent à fixer votre appareil au mur. Les étapes de la fixation murale sont décrites aux pages 44 à 51. Les étapes suivantes doivent être réalisées par un professionnel. La deuxième personne peut vous aider en maintenant le meuble en position pendant que le professionnel effectue les étapes d'alignement, de mise à...
  • Page 91 Français Page 47 : Comme le montre la vue de droite, fixez l'appareil aux montants du mur à l'aide de la vis (3) et de la rondelle (24). La vue montre le panneau arrière supérieur (G), mais faites de même pour le longeron inférieur (L).
  • Page 92 Français Page 52 : Les étapes suivantes consistent à assembler le mécanisme du cadre de lit en métal et les panneaux de porte. Les étapes d'assemblage couvrent les pages 53 à 66. Comme indiqué à la page 2 : Choisissez l'une des deux options ci-dessous... Vous pouvez continuer à...
  • Page 93 Français Page 57 : L'armoire n'est pas montrée pour permettre une vue claire de l'assemblage du cadre du lit. Avec une personne de chaque côté, soulevez le cadre du lit assemblé, alignez les trous du cadre avec le grand trou de la bague du bras pivotant gauche et droit (19e et 19f) déjà installé sur l'armoire de votre unité, et insérez les goupilles pivotantes (19k) comme illustré.
  • Page 94 Français Page 61, 62 : Orientation correcte du support Page 63 : IMPORTANT : Tout d'abord, déverrouillez et faites basculer le pied dans l'armoire. Ensuite, abaissez un peu le cadre du lit afin de dégager l'espace nécessaire pour accrocher les panneaux de porte (P et Q). Cette étape peut se faire à...
  • Page 95 Français Page 67: Charges maximales Cet appareil a été conçu pour supporter les charges maximales indiquées. Le dépassement de ces limites de charge peut entraîner un affaissement, une instabilité, un effondrement du produit et/ou des blessures graves. Ce lit est conçu pour accueillir un matelas Queen Size, d'une épaisseur maximale de 10 pouces. * avec un poids maximum de 70 livres (31,8 kg) * avec un poids minimum de 35 livres (15,9 kg) Après avoir terminé...
