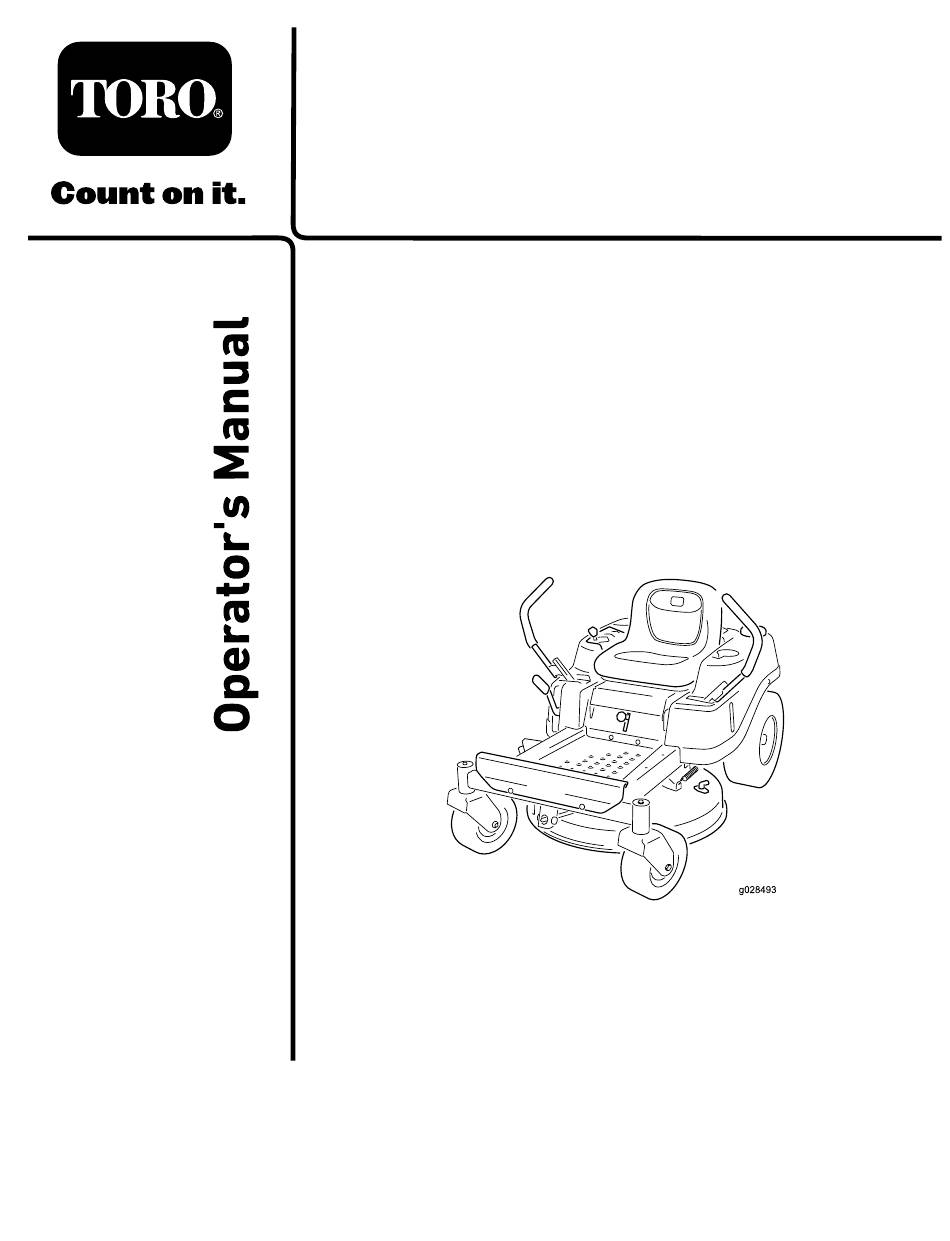

Original Instructions (EN)
TimeCutter
MX 3450 Riding Mower
Model No. 74705—Serial No. 400000000 and Up
Model No. 74710—Serial No. 401300000 and Up
Model No. 74711—Serial No. 400000000 and Up
Model No. 74750—Serial No. 400000000 and Up
Form No. 3417-381 Rev A
®
SS 3225, SS 4200,
*3417-381* A

Advertisement

loading
Need help?

Need help?

Do you have a question about the TimeCutter SS 3325 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toro TimeCutter SS 3325

Summary of Contents for Toro TimeCutter SS 3325

  • Page 1 MX 3450 Riding Mower Model No. 74705—Serial No. 400000000 and Up Model No. 74710—Serial No. 401300000 and Up Model No. 74711—Serial No. 400000000 and Up Model No. 74750—Serial No. 400000000 and Up *3417-381* A Register at www.Toro.com. Original Instructions (EN)
  • Page 2 Toro parts. For all models that do not have Toro engines, please refer to the engine manufacturer’s information included with the machine. Labeled power ratings are supplied by the engine...

  • Page 3: Table Of Contents

    Slope Indicator ........... 5 details, or to register your product, use the QR Safety and Instructional Decals ......6 code or visit www.Toro.com. You may also call us Product Overview ............11 at 1-888-384-9939 to request a written copy of the Controls ............11...

  • Page 4: Safety

    Safety Servicing the Spark Plug........32 Cleaning the Blower Housing......33 Fuel System Maintenance ........33 The following instructions are from ANSI standard Replacing the In-Line Fuel Filter ....... 33 B71.4-2012. Electrical System Maintenance ......34 Electrical System Safety ........34 Servicing the Battery.........

  • Page 5: Slope Indicator

    Slope Indicator g011841 Figure 4 This page may be copied for personal use. 1. The maximum slope you can operate the machine on is 15 degrees. Use the slope chart to determine the degree of slope of hills before operating. Do not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line to match the recommended slope.

  • Page 6: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decalbatterysymbols Battery Symbols Some or all of these symbols are on your battery. 1.
  • Page 7 decal119-8814 119-8814 1. Parking position 4. Neutral 2. Fast 5. Reverse 3. Slow decal119-8815 119-8815 decal119-8871 1. Parking position 4. Neutral 119-8871 2. Fast 5. Reverse 5. 3 inch 1. Height of cut 3. Slow 2. 4-1/2 inch 6. 2-1/2 inch 3.
  • Page 8 decal121-2989b 121-2989 1. Bypass lever position for 2. Bypass lever position for pushing the machine operating the machine decal131-3947 131-3947 1. Trim—slow 3. Mow—fast 2. Tow—medium...
  • Page 9 decal132-0869 132-0869 Note: This machine complies with the industry standard stability test in the static lateral and longitudinal tests with the maximum recommended slope indicated on the decal. Review the instructions for operating the machine on slopes in the Operator’s Manual as well as the conditions in which you would operate the machine to determine whether you can operate the machine in the conditions on that day and at that site.
  • Page 10 decal132-0872 132-0872 1. Thrown object 3. Severing hazard of hand hazard—keep bystanders or foot—keep away from away from the machine. moving parts. 2. Thrown object hazard, 4. Entanglement raised baffle—do not hazard—keep away operate the machine with from moving parts; keep an open deck;...

  • Page 11: Product Overview

    Product Overview g020240 Figure 5 1. Footrest 5. Control panel 9. Deflector 13. Front caster wheels 2. Height-of-cut lever 6. Operator seat 10. Engine 3. Motion-control lever 7. Rear drive wheel 11. Washout fitting 4. Smart Speed lever 8. Fuel-tank cap 12.
  • Page 12 Contact your Authorized Service Dealer or Distributor or go to The Smart Speed™ Control-System lever, located www.Toro.com for a list of all approved attachments below the operating position, gives you a choice to and accessories.

  • Page 13: Before Operation

    Operation containers on the ground, away from your vehicle before filling. • Remove the equipment from the truck or trailer Note: Determine the left and right sides of the and refuel it while it is on the ground. If this is not machine from the normal operating position.

  • Page 14: Performing Daily Maintenance

    Using Stabilizer/Conditioner Use a fuel stabilizer/conditioner in the machine to provide the following benefits: • Keeps fuel fresh during storage of 90 days or less (drain the fuel tank when storing the machine for more than 90 days) • Cleans the engine while it runs •...

  • Page 15: Understanding The Safety-Interlock System

    Understanding the Positioning the Seat Safety-Interlock System The seat can move forward and backward. Position the seat where you have the best control of the The safety-interlock system is designed to prevent the machine and are most comfortable (Figure engine from starting unless: •...

  • Page 16: Adjusting The Motion-Control Levers

    Adjusting the During Operation Motion-Control Levers During Operation Safety Adjusting the Height General Safety You can adjust the motion-control levers higher or • The owner/operator can prevent and is responsible lower for maximum comfort (Figure 10). for accidents that may cause personal injury or property damage.

  • Page 17: Slope Safety

    • Use only accessories and attachments approved machine to lose traction. Loss of traction to the by Toro. drive wheels may result in sliding and a loss of braking and steering. The machine can slide even •...

  • Page 18: Towing Safety

    Operating the Mower Blade-Control Switch (PTO) The blade-control switch (PTO) starts and stops the mower blades and any powered attachments. Engaging the Blade-Control Switch (PTO) g229111 Figure 12 1. Safe Zone—use the 4. W=width of the machine machine here on slopes g008945 less than 15 degrees or Figure 13...

  • Page 19: Operating The Throttle

    Operating the Throttle Starting the Engine You can move the throttle control between F Important: Do not engage the starter for more positions (Figure 16). than 5 seconds at a time. Engaging the starter motor for more than 5 seconds can damage the Always use the F position when engaging the PTO.

  • Page 20: Using The Motion-Control Levers

    Driving the Machine Turn the key to the O position and remove the key. The drive wheels turn independently, powered by hydraulic motors on each axle. You can turn 1 side CAUTION in reverse while you turn the other forward, causing Children or bystanders may be injured if they the machine to spin rather than turn.
  • Page 21 To go backward, slowly pull the motion-control The following are only recommendations for use. levers rearward (Figure 20). Adjustments vary by grass type, moisture content, and the height of the grass. Suggested Trim uses: Parking Heavy, wet grass Training Bagging Mulching Normal mowing...

  • Page 22: Using The Side Discharge

    Adjusting the Height of Cut This is the medium speed. The suggested uses for Note: The transport position is the highest this speed are as follows: height-of-cut position or cutting height at 115 mm • (4-1/2 inches) as shown in Figure Bagging •...

  • Page 23: Adjusting The Anti-Scalp Rollers

    Adjusting the Anti-Scalp Operating Tips Rollers Using the Fast Throttle Setting For Machine with 107 cm (42-inch) For best mowing and maximum air circulation, operate Mower Decks Only the engine at the F position. Air is required to thoroughly cut grass clippings, so do not set the Whenever you change the height of cut, adjust the height-of-cut so low as to totally surround the mower height of the anti-scalp rollers.

  • Page 24: After Operation

    File down any nicks and sharpen the blades as necessary. If a blade is damaged or worn, replace it immediately with a Pushing the Machine by genuine Toro replacement blade. Hand Important: Always push the machine by hand.

  • Page 25: Operating The Machine

    Transporting the Machine Use a heavy-duty trailer or truck to transport the machine. Use a full-width ramp. Ensure that the trailer or truck has all the necessary brakes, lighting, and marking as required by law. Please carefully read all the safety instructions. Knowing this information could help you or bystanders avoid injury.

  • Page 26: Unloading The Machine

    If using a trailer, connect it to the towing vehicle and connect the safety chains. If applicable, connect the trailer brakes and lights. Lower the ramp, ensuring that the angle between the ramp and the ground does not exceed 15 degrees (Figure 25).

  • Page 27: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the engine oil and filter. After the first 5 hours • Check the safety-interlock system. •...

  • Page 28: Raising The Seat

    To ensure optimum performance and continued safety certification of the machine, use only Clean the grease fittings (Figure 28 Figure genuine Toro replacement parts and accessories. 29) with a rag. Replacement parts and accessories made by other manufacturers could be dangerous, and Note: Scrape any paint off the front of the such use could void the product warranty.

  • Page 29: Engine Maintenance

    Engine Maintenance Engine Safety • Shut off the engine before checking the oil or adding oil to the crankcase. • Keep your hands, feet, face, clothing, and other body parts away the muffler and other hot surfaces. Servicing the Air Cleaner Note: Service the air cleaner more frequently (every g020243...

  • Page 30: Servicing The Engine Oil

    Install the foam filter onto the paper filter (Figure 31). Install the foam and paper filter onto the air-cleaner housing. Install the air-cleaner cover, and tighten the 2 knobs (Figure 30). Servicing the Engine Oil Engine-Oil Specifications Oil Type: Detergent oil (API service SF, SG, SH, SJ, or higher) Crankcase Capacity: 1.4 L (47 fl oz) with oil filter Viscosity: See the table below.
  • Page 31 g027477 Figure 35 Slowly pour approximately 80% of the specified oil into the filler tube and slowly add the additional oil to bring it to the Full mark (Figure 36). g029369 Figure 34 Change the engine-oil filter (Figure 35). Note: Ensure the oil-filter gasket touches the engine, and then turn the filter an extra 3/4 turn.

  • Page 32: Servicing The Spark Plug

    g027478 Figure 37 Checking the Spark Plug Important: Do not clean the spark plug(s). Always replace the spark plug(s) when it has a black coating, worn electrodes, an oily film, or cracks. If you see light brown or gray on the insulator, the engine is operating properly.

  • Page 33: Cleaning The Blower Housing

    Cleaning the Blower Fuel System Housing Maintenance Service Interval: Every 100 hours/Yearly (whichever DANGER comes first) In certain conditions, fuel is extremely To ensure proper cooling, ensure that the grass flammable and highly explosive. A fire or screen, cooling fins, and other external surfaces of the explosion from fuel can burn you, others, and engine are kept clean at all times.

  • Page 34: Electrical System Maintenance

    Electrical System Maintenance Electrical System Safety • Disconnect the battery before repairing the machine. Disconnect the negative terminal first g027506 and the positive last. Connect the positive terminal first and the negative last. • Charge the battery in an open, well-ventilated area, away from sparks and flames.

  • Page 35: Installing The Battery

    Note: Retain all fasteners. Charge the battery for a minimum of 1 hour at 6 to 10 A. WARNING Note: Do not overcharge the battery. Incorrectly removing the cables from When the battery is fully charged, unplug battery could damage the machine and the charger from the electrical outlet, then cables, causing sparks.

  • Page 36: Servicing The Fuses

    Servicing the Fuses Drive System Maintenance The electrical system is protected by fuses. It requires no maintenance; however, if a fuse blows, check the component/circuit for a malfunction or short. Checking the Tire Pressure Fuse type: • Main—F1 (30 A, blade-type) Service Interval: Every 25 hours—Check tire pressure.

  • Page 37: Releasing The Electric Brake

    Figure 46 Mower deck with 2 blades 1. Cover 2. Screw Using a spring-removal tool (Toro Part No. 92-5771), remove the idler spring from the deck hook to remove tension on the idler pulley, and roll the belt off the pulleys...
  • Page 38 Route the new belt around the engine pulley and mower pulleys (Figure 47 Figure 48). Using a spring-removal tool (Toro Part No. 92-5771), install the idler spring over the deck hook and place tension on the idler pulley and the mower belt (Figure 47 Figure 48).

  • Page 39: Mower Maintenance

    Mower Maintenance Servicing the Cutting Blades To ensure a superior quality of cut, keep the blades sharp. For convenient sharpening and replacement, keep extra blades on hand. g006530 Figure 49 1. Cutting edge 3. Wear/slot forming Blade Safety 2. Curved area 4.

  • Page 40: Removing The Blades

    For best performance and continued safety conformance of the machine, use genuine Toro replacement blades. Measure from the tip of the blade to the flat Replacement blades made by other manufacturers...

  • Page 41: Leveling The Mower Deck

    Check the balance of the blade by putting it on a blade balancer (Figure 57). Note: If the blade stays in a horizontal position, the blade is balanced and can be used. Note: If the blade is not balanced, file some metal off the end of the sail area only (Figure 56).

  • Page 42: Adjusting The Front-To-Rear Blade Slope

    Shut off the engine, remove the key, and wait Loosen the side locking nut. for all moving parts to stop before leaving the Raise or lower the left side of the mower deck operating position. by rotating the rear locking nut (Figure 60).
  • Page 43 Carefully rotate the blade(s) so they are facing front to rear (Figure 61 Figure 62). g014634 Figure 63 g014631 Figure 61 1. Adjusting rod 3. Locknut Mower Decks with 1 Blade 2. Adjusting block 1. Blade front to rear 2. Measure from the tip of the blade to the flat surface here. To raise the front of the mower, tighten the adjustment nut.

  • Page 44: Removing The Mower Deck

    Removing the Mower Deck Park the machine on a level surface, disengage the blade-control switch (PTO), and engage the parking brake. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position. Lower the height-of-cut lever to the lowest position.

  • Page 45: Replacing The Grass Deflector

    Replacing the Grass Deflector Service Interval: Before each use or daily—Inspect the grass deflector for damage. WARNING An uncovered discharge opening could allow the machine to throw objects toward you or bystanders, resulting in serious injury. Also, contact with the blade could occur. Never operate the machine without the grass deflector, the discharge cover, or the grass-collection system in place.

  • Page 46: Cleaning

    Cleaning Turn the water off and remove the coupling from the washout fitting. Note: If the mower is not clean after 1 washing, Washing the Underside of soak it and let it stand for 30 minutes. Then, the Mower Deck repeat the process.

  • Page 47: Storage

    Storage the stabilizer manufacturer. Do not use an alcohol-based stabilizer (ethanol or methanol). Storage Safety Note: A fuel stabilizer/conditioner is most effective when mixed with fresh fuel and • Let the engine cool before storing the machine. used at all times. •...

  • Page 48: Storing The Battery

    Storing the Battery Fully charge the battery. Let the battery rest for 24 hours, then check the battery voltage. Note: If the battery voltage is below 12.6 V, repeat steps and 2. Disconnect the cables from the battery. Check the voltage periodically to ensure that the voltage is 12.4 V or higher.

  • Page 49: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The fuel tank is showing signs of collapsing 1. The air-cleaner paper element clogged. 1. Clean the paper element. or the machine is frequently showing signs of running out of fuel. The engine overheats. 1.
  • Page 50 Problem Possible Cause Corrective Action The machine does not drive. 1. The bypass valves are open. 1. Close the tow valves. 2. The traction belts are worn, loose, or 2. Contact an Authorized Service Dealer. broken. 3. The traction belts are off the pulleys. 3.

  • Page 51: Schematics

    Schematics g036806 Electrical Schematic (Rev. A)
