Lutron Electronics PowPak Vive RMJS-OT-DV Installation

PowPak | Installation
Wired Occupancy Transmitter
Part of the Vive Family
RMJS-OT-DV
UL 2043 Plenum Rated
Note for Replacement:
RMJS-OT-DV can replace WLCU301-CPN6814
Important Notes:
Please read before installing.
• For installation by a qualified electrician in accordance with all local and national electrical codes.
• Note: Use copper conductors only.
• Check to see that the device type and rating is suitable for the application.
• DO NOT install if product has any visible damage.
• If moisture or condensation is evident, allow the product to dry completely before installation.
• Operate between 32 °F (0 °C) and 104 °F (40 °C).
• 0% to 90% humidity, non-condensing.
• For indoor use only.
Required Components
For each system ensure you have:
At least one PowPak Wired Occupancy Transmitter
Status
LED
PowPak Wired
Occupancy Transmitter
Start Here
WARNING
Shock Hazard. May result in serious injury or death.
Turn off power at circuit breaker before installing the unit.

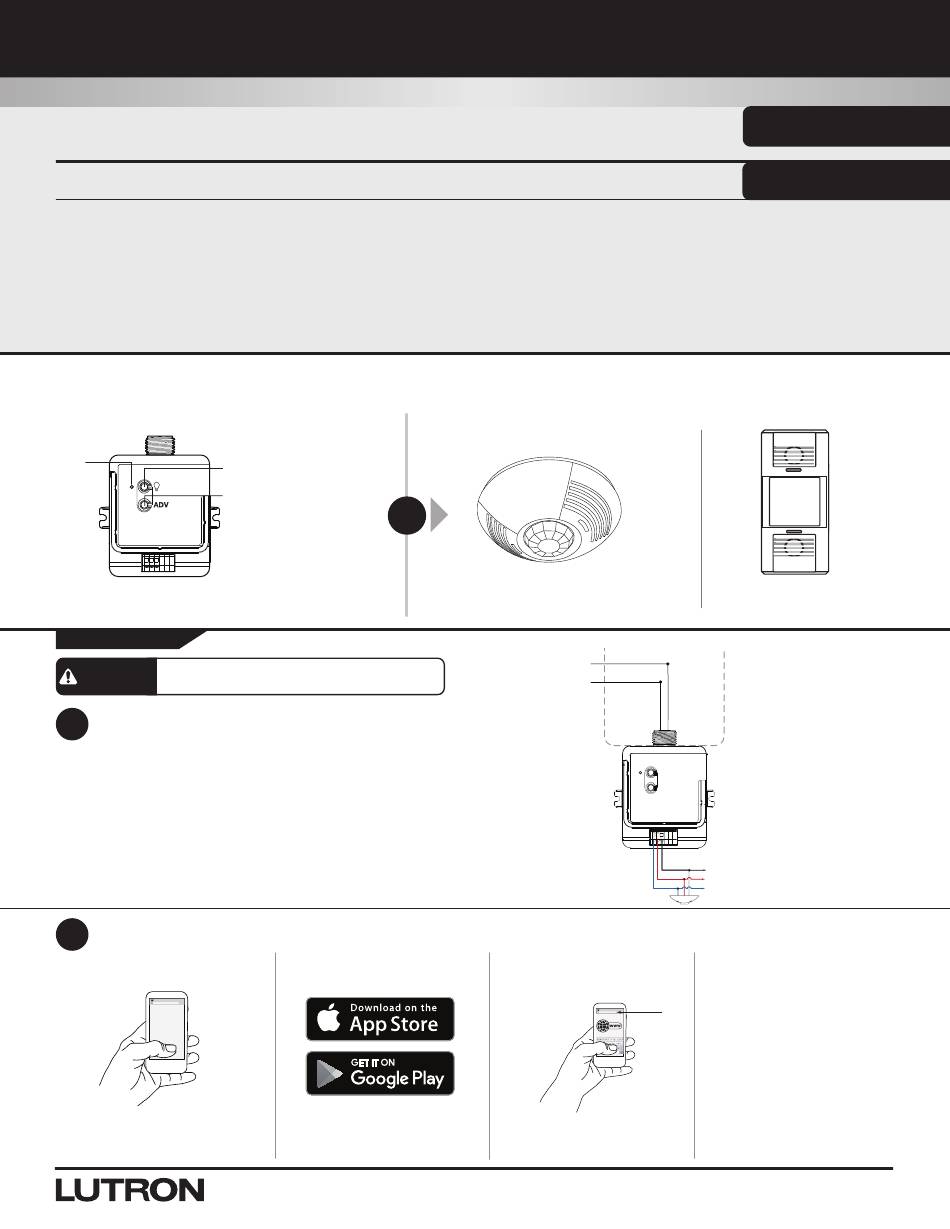

Install PowPak Wired Occupancy Transmitter
1
A The PowPak wired occupancy transmitter can be installed on a junction box or
marshalling box using the conduit nut (provided) or with mounting screws (not provided).
The device must NOT be mounted inside a fixture or other metallic enclosure – only
on the exterior of a fixture. Please consult local and national electric codes for proper
installation.
If installing the unit inside a junction box, please see Application Note #423
(P/N 048423) at www.lutron.com.
B Once installed, energize the PowPak wired occupancy transmitter.
Programming with a Vive Hub
2
A Use an iOSR or AndroidR
compatible device.
Vive X
Light Button
Advanced
+
Operations
B Download the Lutron Vive app.
Lutron Electronics Co., Inc. | 7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
At least one Wired Occupancy Sensor
LOS-C Series
Ceiling-Mounted Sensor
Neutral
Hot
C Open the app and follow the
instructions to activate a new
occupancy sensor.
vive.lutron.com X
041907 Rev. B
12/2024
120 / 277 V~ 70 mA
24 V- 110 mA
English
LOS-W Series
Wall-Mounted Sensor
To additional
Common
24 V-
sensors
Occupancy
(3 maximum)
Note: For further information on set
up, programming, and troubleshooting
with a Vive system, please refer to the
installation instructions included with
the Vive hub or visit
www.lutron.com/vive
Note: For programming the PowPak
transmitter without a Vive hub see
the next page.
Note: See Lutron App Note #600
(P/N 048600) at www.lutron.com for
answers to questions on adding this
device to a Lutron system.
RMJS-OT-DV may appear with
the model number "WLCU301-
CPN6814" in Vive systems.
