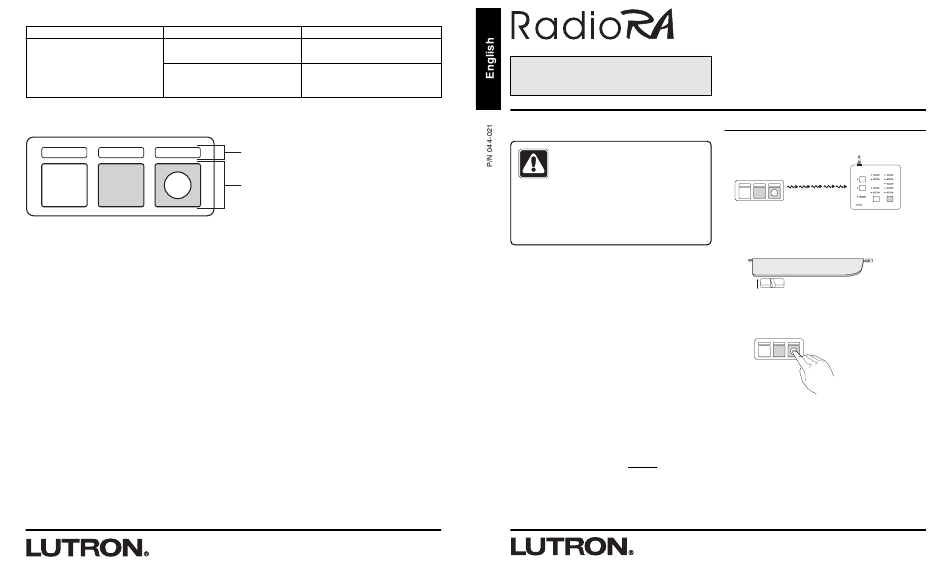

Lutron Electronics RAdioRA RA-VCTX Installation Instructions

Troubleshooting
Symptom Possible Cause
The Visor Control Transmitter is • Entry Master Control failed to
not communicating with the learn Visor Control Transmitter.
Multi-Function Entry Master
• Batteries weak or dead.
Control.
Operation
• Visor Control buttons turn on an Entry Master Control SCENE; toggles an Entry Master Control ROOM.
• To activate SECURITY FULL and FLASH, press and hold the corresponding button on the Visor Control
for 3 seconds. To exit SECURITY FULL and FLASH, just press any button on the Visor Control.
FCC Information
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by Lutron
Electronics Co. could void the user's authority to operate this equipment.
Technical Assistance
If you have questions concerning the installation or
operation of this product, call the Lutron Technical
Support Center. Please provide exact model number
when calling.
(800) 523-9466 (U.S.A., Canada, and the Caribbean)
Other countries call (610) 282-3800
Fax (610) 282-3090
Visit our web site at www.lutron.com
Solution
• Entry Master Control must learn
Visor Control Transmitter.
• Replace batteries in Visor
Control Transmitter with new
ones (CR2032).
Labels - Printed and blank labels provided.
Buttons - Press to remotely activate buttons on
an Entry Master Control.
Limited Warranty
Lutron will, at its option, repair or replace any unit that is defective in
materials or manufacture within one year after purchase. For warranty
service, return unit to place of purchase or mail to Lutron at 7200 Suter Rd.,
Coopersburg, PA 18036-1299, postage pre-paid.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
AND THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO
ONE YEAR FROM PURCHASE. THIS WARRANTY DOES NOT COVER
THE COST OF INSTALLATION, REMOVAL OR REINSTALLATION, OR
DAMAGE RESULTING FROM MISUSE, ABUSE, OR IMPROPER OR
INCORRECT REPAIR, OR DAMAGE FROM IMPROPER WIRING OR
INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR
CONSEQUENTIAL DAMAGES. LUTRON'S LIABILITY ON ANY CLAIM
FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE
MANUFACTURE, SALE, INSTALLATION, DELIVERY, OR USE OF THE
UNIT SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not apply to
you. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply
to you.
This product may be covered under one or more of the following U.S.
patents: 4,835,343; 4,954,768; 5,248,919; 5,399,940; 5,637,930; 5,736,965;
5,798,581; 5,838,226; 5,848,054; 5,905,442; 5,982,103; DES 353,798; DES
378,814; DES 389,461; DES 389,805; DES 395,037; DES 404,013; DES
422,969; DES 428,855; DES 436,579, DES 439,220 and corresponding
foreign patents. U.S. and foreign patents pending. Lutron, and RadioRA are
registered trademarks of Lutron Electronics Co., Inc.
© 2001 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Made and printed in the U.S.A. 11/01 P/N 044-021 Rev. A
®
W i re l e s s H o m e L i g h t i n g C o n t ro l
Installation Instructions for
Visor Control Transmitter
Please Leave for Occupant
Read all instructions completely before
installation.
NOTES:
• The Multi-Function Entry Master Control must
learn a Visor Control Transmitter in order for
the Visor Control Transmitter to operate the
RadioRA system.
®
• Batteries are included and are pre-installed.
Battery lifetime is approximately 10 years.
Important Notes
1.
An Entry Master Control can learn up to ten
Visor Control Transmitters.
2.
Clean control with a soft damp cloth only .
Do not use any chemical cleaners.
3.
Meets the Society of Automotive Engineers
(SAE) temperature standards: -40°C (-40°F) to
113°C (235°F).
4.
Do not paint the Visor Control.
5.
The range and performance of the RadioRA
system is highly dependent on a variety of
complex factors such as:
• Distance between system components
• Geometry of the home
• Construction of walls separating system
components
• Electrical equipment located near system
components
6.
Do not mix RadioRA "A" and "B" frequency
®
products within the same system. Products
with different frequencies are not compatible.
Visor Control Transmitter
RA-VCTX, RB-VCTX
Batteries: (2) CR2032 Lithium Coin Cell 3.0V each
Table of Contents
Entry Master Control Learning a Visor
Control
CCI 1
CCI 2
CCO 1
SECURITY
FULL
CCO 2
FLASH
LEARN
Visor Control
Entry Master Control
Visor Control Mounting
Operation
®
