Saunum Automatic
Water Dispensing Unit AutoLEIL
V_24_09.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AutoLEIL and is the answer not in the manual?

Questions and answers

Related Manuals for Saunum AutoLEIL

Summary of Contents for Saunum AutoLEIL

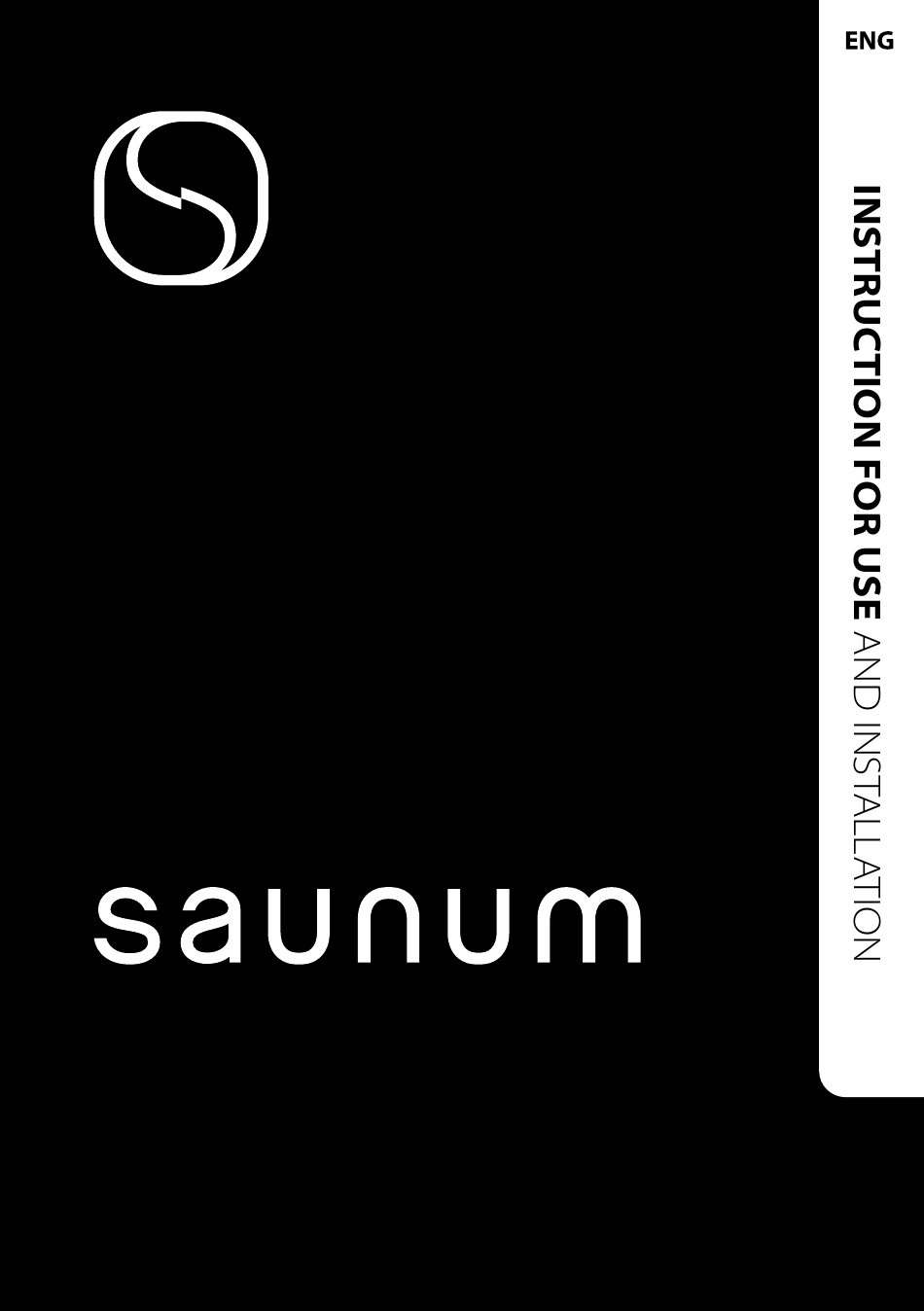

  • Page 1 Saunum Automatic Water Dispensing Unit AutoLEIL V_24_09.1...
  • Page 2 THE BEST SAUNA EXPERIENCE TO HAVE! am very glad that you have invested in the Saunum device, and I believe that our innovative technology will offer you a wonderful and extraordinary sauna experience. I have a degree in thermal engineering and come from Southern Estonia, where my love for saunas began.
  • Page 3 A moist steamy sauna, a therapeutic salt sauna, or a healthy aroma sauna – all of these functions are available on Saunum’s devices to create a truly relaxing sauna experience. When...
  • Page 4 Saunum congratulates you on choosing an innovative sauna automatic water dispensing unit!

  • Page 5: Table Of Contents

    Installing the humidity sensor ___________________________ Installing the main unit _______________________________ Installing the piping __________________________________ Installing the nozzle __________________________________ DIRECTION FOR USE Creating a sauna type _________________________________ AutoLEIL settings ___________________________________ Automatic humidity ________________________________ Manual humidity __________________________________ Ready mode _______________________________________ Automatic vent ____________________________________ Sauna session ____________________________________...
  • Page 6 sauna bathing unsafe and discuss time and temperature limitations. All users of this product must read the warnings and manual carefully Pregnant women should consult their before using the product! physician before the use of the sauna. Excessive body temperatures have the Failure to follow the instructions potential to cause foetal damage during could result in personal injury, death,...
  • Page 7 • It is vital to install the device accord­ The electrical device should ing to the instructions for installation only be connected to the mains in and use. Failure to carefully follow all accordance with all laws and regulations instructions can cause the risk of fire by a licensed, professional, certified or short­circuit, leading to property electrician.

  • Page 8: Components

    COMPONENTS A control unit An operating button The Saunum water dispensing unit A spray nozzle AutoLEIL consists of : A humidity sensor Communication cable from AutoLEIL to LEIL Button cable Humidity sensor cable Water valve connection cable Power cable 10. Water valve 11.
  • Page 9 AutoLEIL does not have its own user interface – it uses the touch screen control Please read more instructions for the panel of the LEIL system and the AutoLEIL installation, use, and recycling, in the functions will appear in LEIL system when original user manual of the control unit.
  • Page 10 USING THE AUTOLEIL UNIT • Prolonged sauna use can damage your health or cause death. The air in the sauna becomes dry as it heats • Do not stay in the steam room for up. Therefore, it is necessary to create steam more than 30 continuous minutes to achieve a suitable level of humidity.

  • Page 11: Valve Output

    VALVE OUTPUT See also page 15 (Electrical connections)! By default the AutoLEIL is provided with 12VDC water valve, connected on OUTPUT 1 of the circuit board. 1 2 3 4 OUTPUT 2...

  • Page 12: Technical Data

    TECHNICAL DATA AUTOLEIL MAIN UNIT: • Supply voltage: 100­240VAC 1N~. CONTROL PANEL (LEIL TOUCH SCREEN): • Length of outlet hose 59 in. (1.5m) • Humidity adjustment range 5–60% • D i m e n s i o n s : 2 . 3 6 x 1 0 . 1 1 x 6 . 4 9 i n (60x257x165mm).
  • Page 13 100­240VAC 1N~ *LEIL (Internal) * Information on how to connect and access to the LEIL control unit, see the respective Saunum climate device and LEIL control unit instal lation and operating manuals. ** Possible to add up to 4 buttons.
  • Page 14 LEIL automation D­ DIP switch (see page 26-27 explanation) LEIL control panel (read LEIL instruction for use and installation manual)
  • Page 15 Humidity sensor KLMA 3 x 0.8 + 0.8 HF (see installation page 18) AutoLEIL D­ AutoLEIL button (see installation page 16-17) D­ DIP switch (see explanation page 11) L­ B­ Water tap (Recommended. Not included) 100­240VAC 1N~ A spray nozzle...

  • Page 16: Installing The Operating Button

    INSTRUCTIONS 1. Use the printed template to mark locations for screw holes and a drill hole FOR INSTALLATION 0.78­0.90 in. (Ø 20–23mm drill bit) for the cable connector. WARNING! Failure to install the product in accordance with all instructions If the cable is not concealed inside the wall, herein will void the warranty.
  • Page 17 2. Install the screws, leaving the heads out 0.11­0.15 in. (3­4mm) from the wall. Drill the hole through the wall and bring the cable to the opening. Pull enough cable through the hole to connect the cable to L+ B+ B- L- the button connectors.

  • Page 18: Installing The Humidity Sensor

    THE HUMIDITY SENSOR The desired position is shown on below pictures. The humidity sensor must be located on the opposite wall of the Saunum climate Connect the sensor with 4 x 24AWG (4 x device. 0.25 mm2) humidity sensor data cable (see Do not install it behind objects that would page 12-13).

  • Page 19: Installing The Main Unit

    THE MAIN UNIT ter leakage into the electronics. As the AutoLEIL Main Unit needs to com­ The installation location for the main unit municate with LEIL controller, it is advised must be a dry space outside the sauna that they are positioned close to each other room with a floor drain (ambient tempera­...

  • Page 20: Installing The Piping

    See an installation example of the spray nozzle and piping in the figure below. We recommend using the spray nozzle delivered with the device. Pre­bent stainless steel pipes for Saunum climate device are sold separately from the AutoLEIL package. These pipes should be clamped onto the wall right next to the heater to save time during installation.

  • Page 21: Installing The Nozzle

    INSTALLING THE NOZZLE When the pipe is installed, fit the spray nozzle in the end of water outlet pipe. Cut the pipe square, deburr properly. Slide cap nut (1) and compression ring (2) over tube end. Push the fitting (3) against the pipe. Push the nut (1) and ring (2) towards the fit­...

  • Page 22: Creating A Sauna Type

    CONFIGURE A AUTOLEIL SAUNA TYPE AutoLEIL settings will appear on the control panel after AutoLEIL is connected with LEIL To start by configuring a personal pre­set power board (see page 14­15). sauna experience with LEIL control panel go to the main menu (Fig.1) ­ select Types and then Sauna type 1-3.

  • Page 23: Automatic Humidity

    1–30min (Fig.7). be possible to obtain or is reached at the expense of overly cooled stones. AutoLeil automatically optimizes the water quantity and dispensing interval in Experimenting is necessary to determine order to reach the desired humidity level the most optimal dispensing parameters.

  • Page 24: Manual Humidity

    Duration ­ set the sauna session time between 1–30min (Fig.9). Figure 13 Figure 14 Ready mode ­ the AutoLEIL will switch on automatically as soon as the sauna reaches the target temperature and displays "Ready" (Fig.15). This option is useful to be sure that the...

  • Page 25: Automatic Vent

    The last row displays the AutoLEIL settings (Fig. 18) and can be changed by selecting it (Fig. 19). Once the sauna is ready (Fig. 15), the screen has AutoLEIL control on the last row Figure 18 Figure 19 (Fig. 20, A).

  • Page 26: Button

    3 times to acknowledge the valve opening. If case you push the button and the AutoLeil session is OFF, the LED will do a Switch ON nr 2 fast­blinking pattern to indicate that water Figure 20...

  • Page 27: Public Sauna

    2 to the ON position (Fig.20). After making that switch, the settings are changed in AutoLEIL duration setting. Now the duration can be set from 1 hour to up to 12 hours, in 1­hour increments. After making the switch, only...

  • Page 28: Warranty

    Saunum’s 3. Risks arising from transport. recom mended repair partners will repair or replace the device or its defective part 4.

  • Page 29: Installation Protocol

    INSTALLATION REPORT Date of purchase: _________________________________________________________ Heater type: ____________________________________________________________ Date of installation: ____________________________________________________ Place of installation: _______________________________________________________ Installed by: ____________________________________________________________ Checked by: _____________________________________________________________ Date, signature: __________________________________________________________ Description of the work done: ________________________________________________ All the details are available for the installation ____________________________________ There are no colour defects or dents __________________________________________ Installed on the wall or on the floor according to the instructions _____________________ The electrical connections are made according to the installation instructions ___________...
