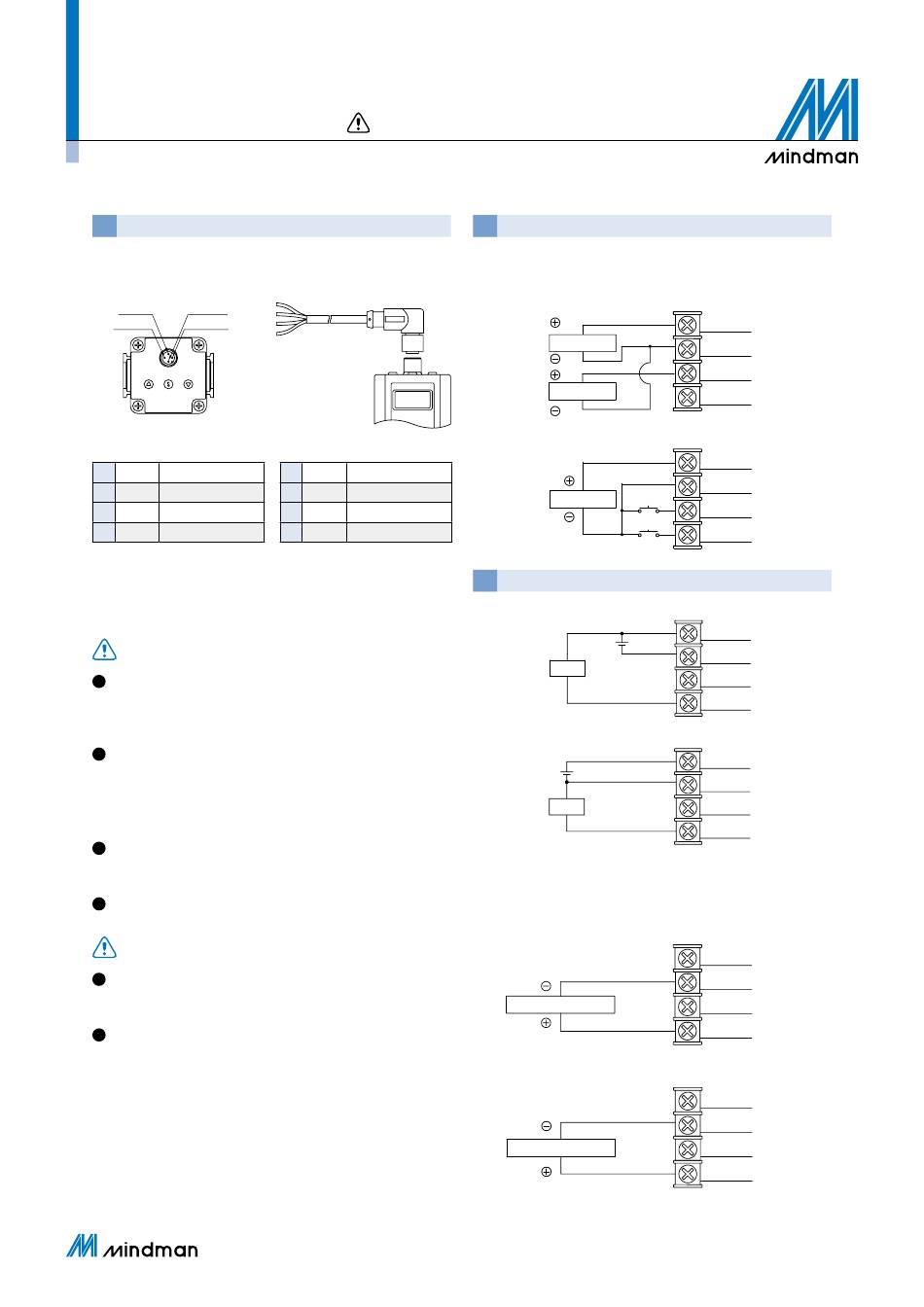

MAER200/ 300
AIR UNIT (ELECTRO – PNEUMATIC REGULATOR)
Wiring
Connect the cable to the connector on the body with the wiring
arranged as shown below.
Brown
3: Blue
1: Brown
White
4: Black
2: White
Blue
Black
Input signal:
Current, voltage signal type
1
Brown
Power supply
2
White
Input signal
3
Blue
GND(COMMON)
4
Black
Monitor output
* The cables are available in both straight type and right angle
type. A right angle type connector is attached facing left (towards
the SUP port). The direction of the straight type arrow is aligned
with socket latch.
Warning
1
The color of connector pins and cable conductors must
be checked when wiring. Check wire color with handling
precaution, since improper wire connection leads to
destruction/failure and malfunction.
When the cable plug is connected to the socket of the body,
2
please correctly align the pins with the socket latch, and then
slowly lock it downwards.
Do not force to lock, it may damage the cable plug or casing,
causing malfunction or abnormality.
Do not use power voltage exceeding specifications. The
3
product could malfunction or catch fire if voltage exceeding
the working range is applied.
Short-circuiting the load could result in rupture or fire.
4
Caution
The connection between the cable plug and the wire is weak.
5
Excessive bending may shorten the life of the plug set,
causing breakage or damage.
If you need an anti-bending cable, please contact the sales.
6
Precautions
Input signal:
Preset input type
1
Brown
Power supply
2
White
Input signal 1
3
Blue
GND(COMMON)
4
Black
Input signal 2
Read before installing
Wiring diagrams
Connect the cable to the connector on the body with the wiring
arranged as shown below.
Current, voltage signal type
Power supply
Input signal
Preset input type
S1
Power supply
S2
Monitor output wiring diagram
Switch output – NPN type
Load
Switch output – PNP type
Load
* NPN / PNP output type does not contain overcurrent protection
and an error warning display, so the loop current should not
exceed 160mA to avoid burning.
DC1~5V Analog output, Voltage type
Monitor output voltage
DC4~20mA Analog output, Current type (source type)
Monitor output current
1: Brown
3: Blue
2: White
4: Black
1: Brown
3: Blue
2: White
4: Black
1: Brown
3: Blue
2: White
4: Black
1: Brown
3: Blue
2: White
4: Black
1: Brown
3: Blue
2: White
4: Black
1: Brown
3: Blue
2: White
4: Black
