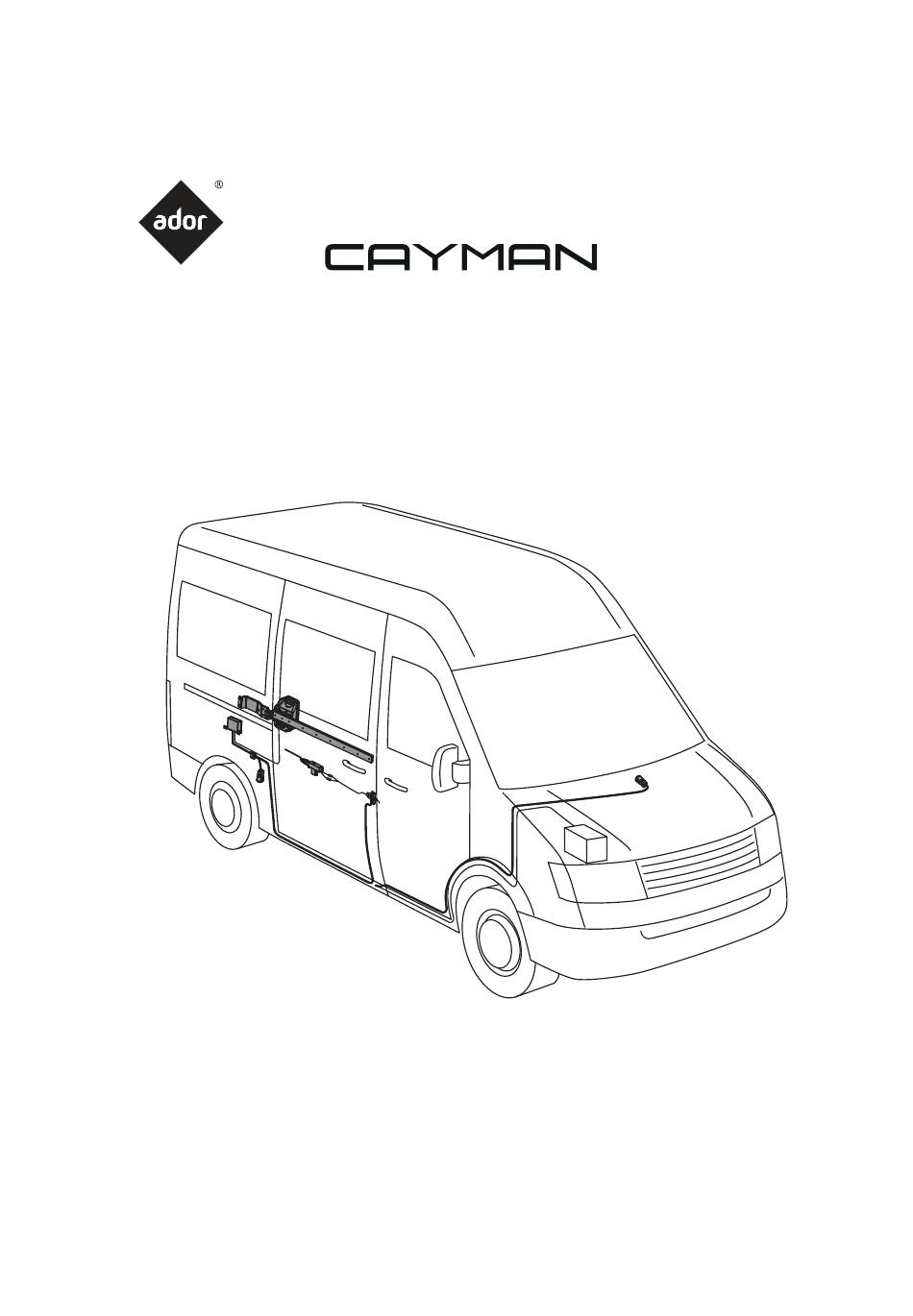

- Page 1 RACK AND PINION DRIVE 01.01.2025 automatic doors OPERATIONS MANUAL CAYMAN 102, 202 FIAT DUCATO / CITROEN JUMPER / PEUGEOT BOXER FORD TRANSIT from 2015 IVECO DAILY MERCEDES SPRINTER (906, 907) / VW CRAFTER to 2018 RENAULT MASTER VW CRAFTER from 2018 / MAN TGE TOYOTA HIACE Version 64.00...
- Page 2 Symbols and means of visualisation Warnings Warning notices are used in these instructions to warn you of damage to property and personal injury. Always read and follow these warnings. Follow all measures labelled with the warning symbol and warning word. Warning symbol Warning word Meaning...
- Page 3 > The country-specific laws and regulations must be observed for safety inspections must be observed. > Unauthorised modifications to the drive exclude any liability on the part of ADOR for resulting damage. > ADOR accepts no warranty for combinations with third-party products.
- Page 4 Congratulations on your purchase of this sliding door driveCROCO and hope that you are satisfied with its functions. If you have any questions regarding maintenance or repair, please contact ADOR. You are welcome to send us questions or suggestions by e-mail to info@ador-eu.de.
-
Page 5: Technical Data
TECHNICAL DATA CAYMAN drive is designed for opening and closing doors in minibuses working as taxi buses or camper vans. You will find a list of models on the cover page. If your model is not listed, please ask us. Technical data Power consumption (rating) 70 W... - Page 6 OVERVIEW OF DRIVE COMPONENTS Inside handle cover Door drive Cradle Sliding door contacts Balljoint Rack Control button Controller Additional button Main wiring harness Lock-actuator coupling Actuator Sticker Outside handle cover Terminal +12V/30 A to plus terminal of power supply...
-
Page 7: Function Description
FUNCTION DESCRIPTION OPENING / CLOSING THE SLIDING DOOR Press the control button briefly, ~ 0.5 sec. The sliding door starts moving immediately after the control button is released. STOPPING THE OPENING MOVEMENT To stop the sliding door during the opening movement, briefly press the control button. - Page 8 FUNCTION DESCRIPTION Emergency door opening from the inside 1. Turn and hold the door handle (Fig. 1) 2. Push the drive diagonally outwards to the left (Fig. 1) 3. Open the door with the door handle to the right, (Fig. 1) Fig.
- Page 9 FUNCTION DESCRIPTION Manual mode reset 1. Remove the handle covers (Fig. 3 and 4). 2. Remove the stop angle (Fig. 5). 3. Open the door by the handle (Fig. 5). 4. Unscrew the balljoint (Fig. 6). 5. Remove the drive off the rack (Fig. 6). The sliding door now operates manually.
-
Page 10: Maintenance
MAINTENANCE In order to enjoy this drive for a long time, regular maintenance is required. This depends largely on the frequency of use. These tasks are listed in the following table. If you are unable to carry out this work, please contact a vehicle service company for advice. - Page 11 MAINTENANCE Care instructions Type of work Frequency Clean and lubricate the rack weekly/ (e.g. with WD 40) 1/4 yearly Clean and grease door guides and weekly/ carrige rollers 1/4 yearly weekly/ Clean and lubricate contacts groups 1/4 yearly 1/2 yearly/ Check balljoint for wear and replace if nec.
- Page 12 MAINTENANCE Please document or have documented any maintenance work carried out in the service certificate Carry out the first maintenance one month after initial installation If the drive knocks, cracks, creaks or the sliding door shakes shake, contact your vehicle service center or us immediately. service or to us Arrangement of the sliding door contacts groups Movable contacts group...
-
Page 13: Manufacturer's Guarantee
MANUFACTURER'S GUARANTEE The Ador warranty for this drive is 12 months or 150,000 opening/closing cycles in the vehicle, e.g. minibus. There are no warranty claims for the following components: - Sliding door contacts - Control button Exclusion from the warranty: •... -
Page 14: Warranty Certificate
WARRANTY CERTIFICATE Details of the vehicle: Manufacturer and type: ________________________________________________ Body: _____________________________________________________________ Vehicle identification number (VIN): ______________________________________ Assembly: Date of installation: _________________(warranty start date for 12-month warranty) The installation was carried out by (name, address or stamp): __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ The customer confirms that he has no claims for defects regarding the drive and its installation. - Page 15 Scope of maintenance, spare parts if applicable, Maintenance name of the person with signaturet date...
- Page 16 +49 731 250 68 210 info@ador-eu.de https://ador-eu.de/ The reprinting or other reproduction of documentation and accompanying documents of the products, even in part, is only in extracts, is only permitted with the express authorisation of the responsible ADOR country representative. Subject to technical changes.
