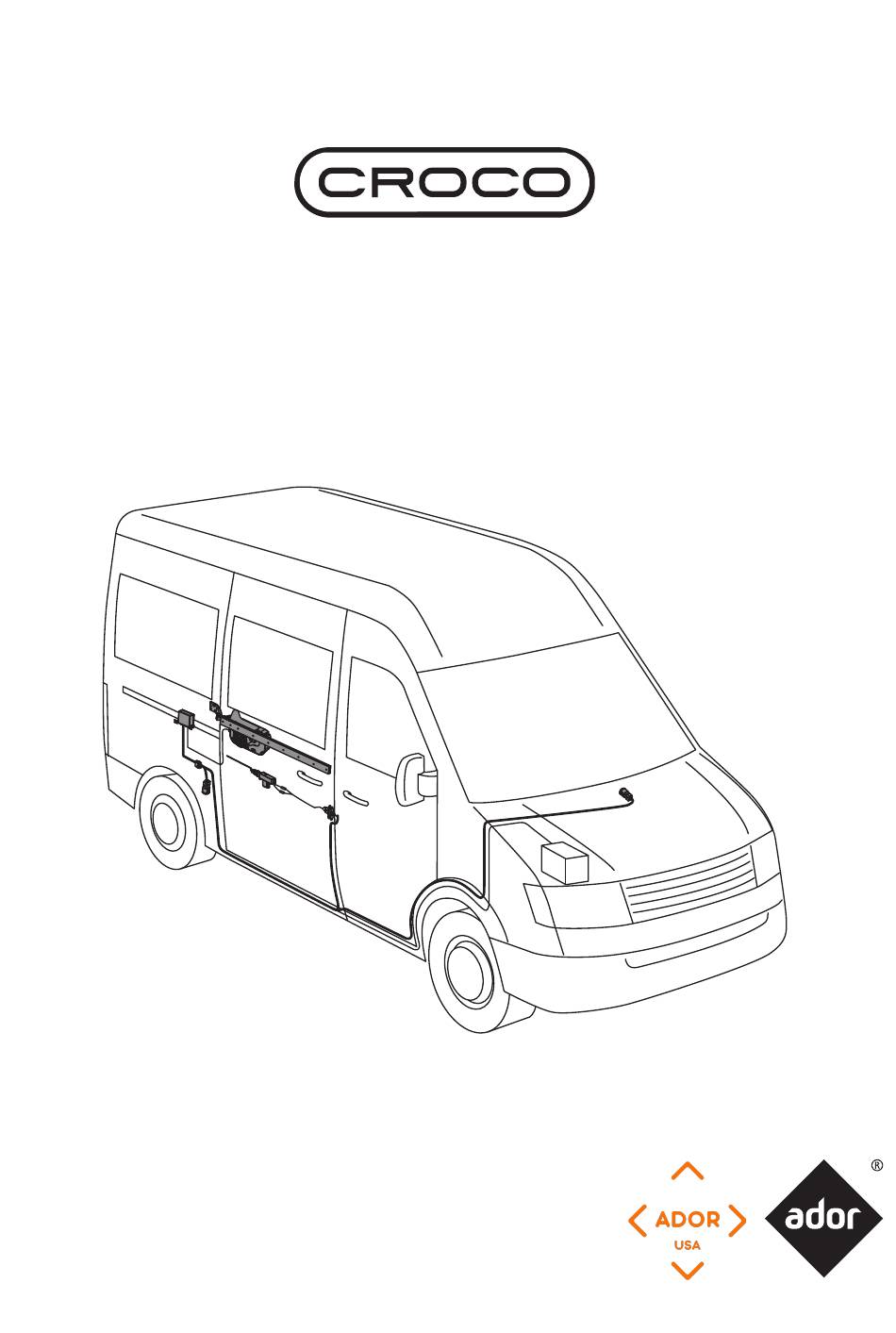

- Page 1 Gear Train Door Opener OPERATIONS MANUAL iveco Daily Fiat Ducato 240; 250 ForD transit toyota Hiace Gaselle, BarGuZin, soBol PeuGeot Boxer / citroen jumPer merceDes sPrinter 906 / volkswaGen craFter...
- Page 2 ADDRESS TO THE OWNER we congratulate you upon the acquiring of croco sliding door drive! we hope that its operation will bring you in a good mood. if you have any questions concerning maintenance and repair, please contact authorized representatives of the manufacturing plant aDor ltd. if you have other questions or suggestions, please contact us on AdorUSA@gmail.com...
-
Page 3: Basic Characteristics
BASIC CHARACTERISTICS croco drive is designed for opening and closing doors in minibuses working as taxi buses. the models of the buses are listed on the manual cover. Basic characteristics Power consumption (nominal) 70 w Power consumption (maximum) 250 w time of door opening (depends on the width set- ~2 sec. - Page 4 ELECTRIC NETWORK K - r e d Latch actuators s - g r e e n ' - I - b l a c k c/6 - grey-and-white , - b l u e c/Y - grey-and-black 6/K - white-and-red ,/y - blue-and-black >Ki, - yellow-and-blue Fiat Ducato...
- Page 5 DISPOSITION OF THE DRIVE IN A MINIBUS Door drive External door handle Link Sliding door contacts Bearing support Controller Rack Control button Additional button (not included) Main harness Lock drive Activator +12V/30A Information sticker Internal door handle Rapidly wearing parts •...
- Page 6 4 DRIVE FUNCTIONS, DESCRIPTION OF OPERATION OPENING AND cLOSING ThE DOOR Press the control button for ~0.5 sec. the door will start moving after you re- lease the button. AUTOMATIc ROLL-BAck if the door pushes against an obstacle while it is closing, it will stop automati- cally and roll back.
- Page 7 DRIVE FUNCTIONS, DESCRIPTION OF OPERATION EMERGENCY DOOR OPENING FROM THE INSIDE 1) Turn the door handle and hold it 2) Move the drive 10 cm to the left 3) Open the door by hand Pic. 1 EMERGENCY DOOR OPENING IN THE OPERATING MODE WITHOUT FIXING 1) Pull the back side of the door 2) Open the door by...
- Page 8 6 DRIVE FUNCTIONS, DESCRIPTION OF OPERATION chANGING TO MANUAL OPERATING MODE Remove the external handle cover Remove the internal handle cover Pic. 5 Pic. 6 1)Remove the index pin 2)Open the door by the handle Pic. 7 2) Remove the drive off the rack 1) Unscrew the link Pic.
-
Page 9: Maintenance
MAINTENANCE to ensure long-term operation of the drive you have to undergo regular main- tenance at aDor authorized representatives’ workshops in accordance with table 1. the minibus’s owner has to do self-maintenance in accordance with table 2. MAINTENANcE AT ADOR REPRESENTATIVES’ wORkShOPS... -
Page 10: Self-Maintenance
MAINTENANCE SELf-MAINTENANcE table 2 № Description of work frequency 1 cleaning and greasing the rack (wD-40) every week cleaning and greasing the rack guide and every week door carriage rollers (wD-40) 3 Greasing sliding door contacts (picture 9) every week checking wear and replacement of sliding every 4 months door index pins (picture 9) - Page 11 MAINTENANCE maintenance in aDor authorized representatives’ workshops requires pay- ment. it is carried out in accordance with the schedule and the representative’s rates. During the maintenance the owner must show a warranty certificate. IMPORTANT! The first check-up is carried out in 1 month after installation.
- Page 12 MANUFACTURER’S GUARANTEE OBLIGATIONS aDor gives guarantee for this drive for 12-month period or 150,000 opening/ closing cycles in a minibus working as a taxi bus. the guarantee does not cover rapidly wearing parts: • sliding door contacts (operating life 6 months);...
-
Page 13: Warranty Certificate
WARRANTY CERTIFICATE (vin) Drive installation date Guarantee period is 12 month starting from the installation date. installation carried out by /name / signature/ installation checked by /name / signature/ address and phone number of the installing company (stamp of the installing company) Hereby i acknowledge that i do not have any complaints about quality of the product and its installation. - Page 14 check-up Description of work and list of spare parts date work carried out by / Name / Signature...
- Page 15 check-up Description of work and list of spare parts date work carried out by / Name / Signature...
- Page 16 check-up Description of work and list of spare parts date work carried out by / Name / Signature...
- Page 17 check-up Description of work and list of spare parts date work carried out by / Name / Signature...
- Page 18 Email: AdorUSA@gmail.com Phone number: +1 (216) 214-0828 (USA) Please, make pictures/video of failed part, issue with installation or operation of device. Text or email. Ador Tech support will reply shortly with solution.
