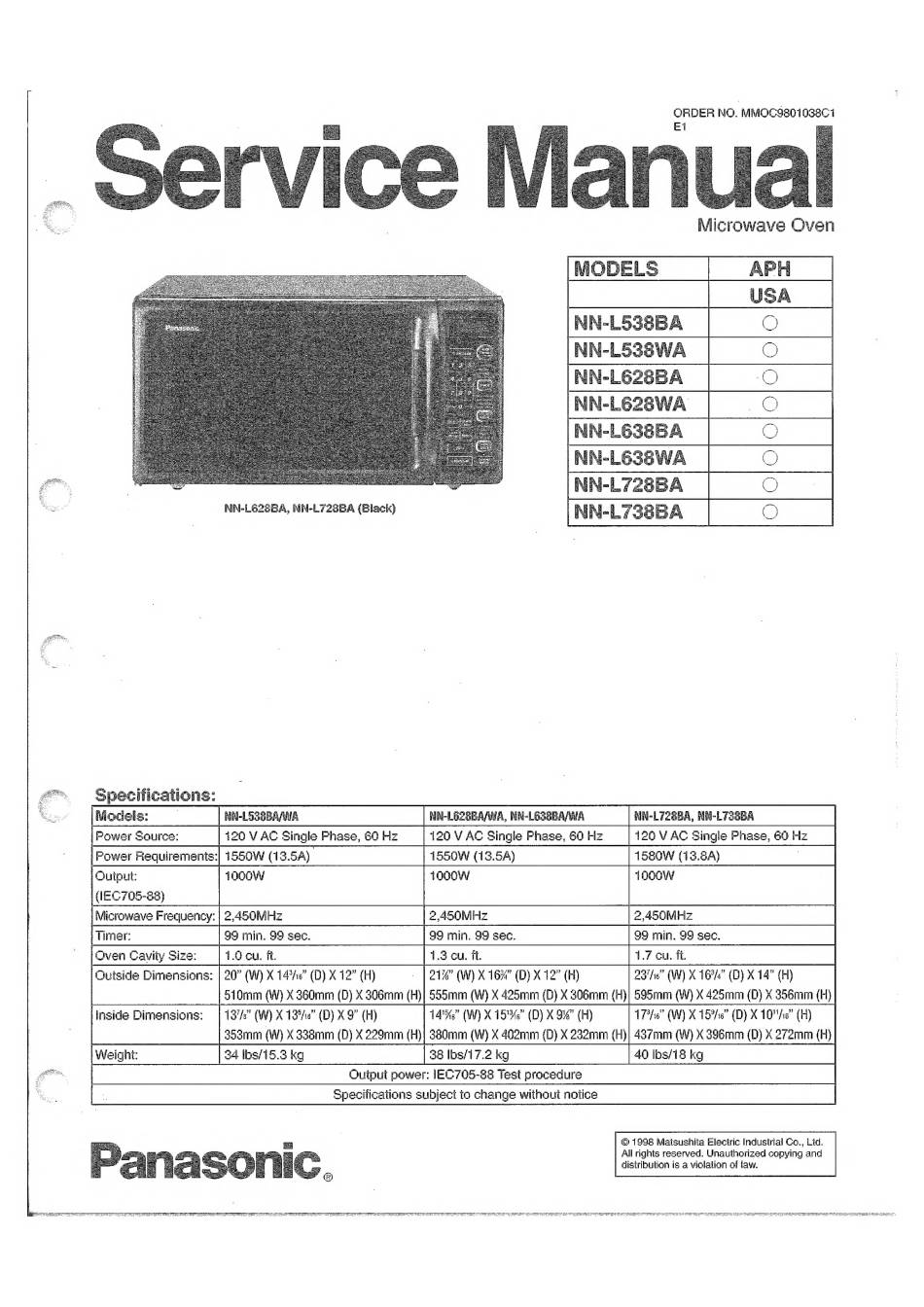

Panasonic NN-L538BA Service Manual

ORDER NO. MMOC9801038C1
Ej
Microwave Oven
Specifications:
NN-LSSSBAWA NN-L62SBA/WA, NN-L6SSBA/WA NN-L728BA, NN-L738BA |
120 VAC Single Phase, 60Hz | 120 VAC Single Phase, 60 Hz —_| 120 V AC Single Phase, 60H
2 Power Requirements:| 1IS550W (13.5A) | 1550W (13.5A) 1580W (13.8A) .
| Ouiput: 1000W 1000W 1000W
| Microwave Frequency: | 2,450MHz 2,450MHz 2,450MHz |
| (IEC705-88)
99 min. 99 sec 99 min. 99 sec. 99 min. 99 sec.
[Oven Cavity Size: 1.7 ou. ft
Outside Dimensions: | 20" (W) X 14%" (D) X 12" (H) _ | 217% (W) X 16%" (D) X 12" (H) 23/6" (W) X 16%" (D) X 14" (H)
| 510mm (W) X 360mm (D) X 308mm (H)] 555mm (W) X 425mm (D) X 306mm (H)| 595mm (W) X 425mm (D) X 356mm (H)
Inside Dimensions: | 197" (W) X 13%e" (D) X 9" (H) 145%" (W) X 15°%s" (D) X 9%" (H) 17536 (W) X 15%6" (D) X 10"/6" (H)
353mm (W) X 338mm (D) X 229mm (H)| 380mm (W) X 402mm (D) X 232mm (H)| 437mm (W) X 386mm (D) X 272mm (H)
Weight: 34 Ibs/15.3 kg 38 lbs/17.2 kg 40 Ibs/18 kg
| Output power: IEC705-88 Test procedure
Ee Specifications subject to change without noiice
© 1998 Maisushita Electric Industrial Co., Lid.
All rights reserved. Unauthorized copying and
distribution is a violation of faw.
