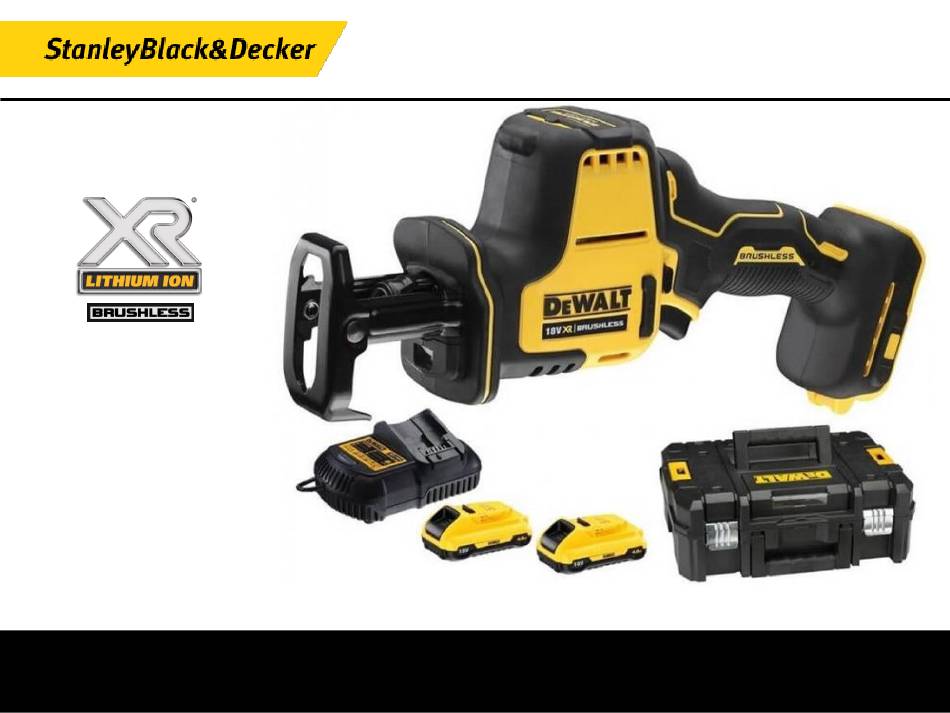

  • Page 1 DCS369 DCS369 18V LI-ION CORDLESS ONE-HANDED RECIPROCATING SAW EUROPEAN SERVICE REPAIR TRAINING...
  • Page 2 DCS369 Follow the safety instruction Before attempting any repairs, the following should be observed, Ensure that the correct tool is used and only use good quality hand tools. Ensure the work shop is clean and tidy. Always wear protective clothing, Overalls, safety gloves, safety glasses, safety hat/net etc. Check that guards function correctly, if not repair before running the product.
  • Page 3 DCS369 Следуйте инструкции по технике безопасности Перед попыткой любого ремонта следует соблюдать следующее: • Убедитесь, что используется подходящий и качественный ручной инструмент. • Убедитесь, что мастерская чиста и опрятна. • Всегда носите защитную спецодежду, перчатки, защитные очки, головной убор и т.д.
  • Page 4 ADDENDUM FOR KEY (LEGEND OF SYMBOLS) ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH RUSSIAN ПРОКОНТРОЛИР УЙТЕ CHECK ÜBERPRÜFEN CONTROLLARE CONTROLER COMPROBAR VERIFIQUE CONTROLEREN ПОСМОТРИТЕ ВНИМАНИЕ ! ATTENTION ! ACHTUNG ! ATTENZIONE ! ATTENTION ! ATENCION ! ATENÇÃO! ATTENTIE ! КОРРЕКТНО CORRECT RICHTIG CORRETTO...
  • Page 5 ADDENDUM FOR KEY (LEGEND OF SYMBOLS) ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH RUSSIAN LEVANTAR ИЗВЛЕКИТЕ LIFT OVER ANHEBEN SOLLEVARE SOULEVEZ LEVANTAR OPHEFFEN SOBRE A ИЗВЛЕКИТЕ ATTENTION! ATTENZIONE! ATTENTION ! ATENCION! ATENÇÃO! OPGELET ! ACHTUNG! AKKU АККУМУЛЯТОРНУ REMOVE RIMUOVERE LA RETIREZ LA QUITAR LA RETIRAR A...
  • Page 6 ADDENDUM FOR KEY (LEGEND OF SYMBOLS) ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH RUSSIAN ДАТА HERSTELLUNGS- DATA DI FECHA CÓDIGO DE DATE CODE DATE CODE DATUM CODE ПРОИЗВОДСТВА DATUM PRODUZIONE FABRICACION PRODUÇÃO СОБЕРИТЕ В ОБРАНОЙ ASSEMBLY ZUSAMMENBAU ASSEMBLAGE MONTAGE MONTAGEM ASSEMBLAGGIO MONTEREN ПОСЛЕДОВАТЕ...
  • Page 7 ADDENDUM FOR KEY (LEGEND OF SYMBOLS) ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH RUSSIAN МИГАНИЕ BLINKING BLINKEN LAMPEGGIO CLIGNOTTANT INTERMITENTE INTERMITENTE KNIPPEREN СВЕТОДИОДА GEHE ZUR WEB ALLEZ SUR VISITA LA PARA MAIS GA NAAR ONZE ОБРАТИТЕСЬ НА GO TO WEB SITE VISITARE IL SITO SEITE FÜR NOTRE SITE...
  • Page 8 ADDENDUM FOR KEY (LEGEND OF SYMBOLS) ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH RUSSIAN CHASSE- ВЫКОЛОТКА PUNCH DURCHSCHLAG PUNZONE PUNZON PUNÇÃO DOORSLAG GOUPILLE СЪЕМНИК BUITENBORG- PINCE CIRCLIP ALICATE ALICATES ВНЕШНИХ CIRCLIP PLIERS SEEGERRING VEERTANG PINZA CIRCLIP EXTERIEUR CERCLIP FREIOS СТОПОРНЫХ EXTERNAL ZANGE WELLE ESTERNA...
  • Page 9 DCS369 Repair workbench EUROPEAN SERVICE REPAIR TRAINING...
  • Page 10 DCS369 2helpu.com EUROPEAN SERVICE REPAIR TRAINING...
  • Page 11 DCS369 2helpu.com EUROPEAN SERVICE REPAIR TRAINING...
  • Page 12 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 13 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 14 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 15 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 16 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 17 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 18 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 19 DCS369 XXXXXXX EUROPEAN SERVICE REPAIR TRAINING...
  • Page 20 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 21 DCS369 10 screws EUROPEAN SERVICE REPAIR TRAINING...
  • Page 22 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 23 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 24 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 25 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 26 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 27 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 28 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 29 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 30 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 31 DCS369 2 screws M4x25 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 32 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 33 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 34 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 35 DCS369 4 screws EUROPEAN SERVICE REPAIR TRAINING...
  • Page 36 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 37 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 38 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 39 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 40 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 41 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 42 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 43 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 44 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 45 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 46 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 47 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 48 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 49 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 50 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 51 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 52 DCS369 4 screws EUROPEAN SERVICE REPAIR TRAINING...
  • Page 53 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 54 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 55 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 56 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 57 DCS369 3 screws M3x9 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 58 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 59 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 60 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 61 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 62 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 63 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 64 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 65 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 66 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 67 DCS369 4 screws M3x9 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 68 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 69 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 70 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 71 DCS369 EUROPEAN SERVICE REPAIR TRAINING...
  • Page 72 DCS369 EUROPEAN SERVICE REPAIR TRAINING...

  • Page 73: After Repair

    DCS369 After repair Check condition of battery electrolyte where appropriate. Dispose of batteries in the correct manner where appropriate. Ensure all guards function correctly where appropriate. Run product to check that it functions correctly, including all features. Remove the battery / unplug the unit before making any adjustments.
