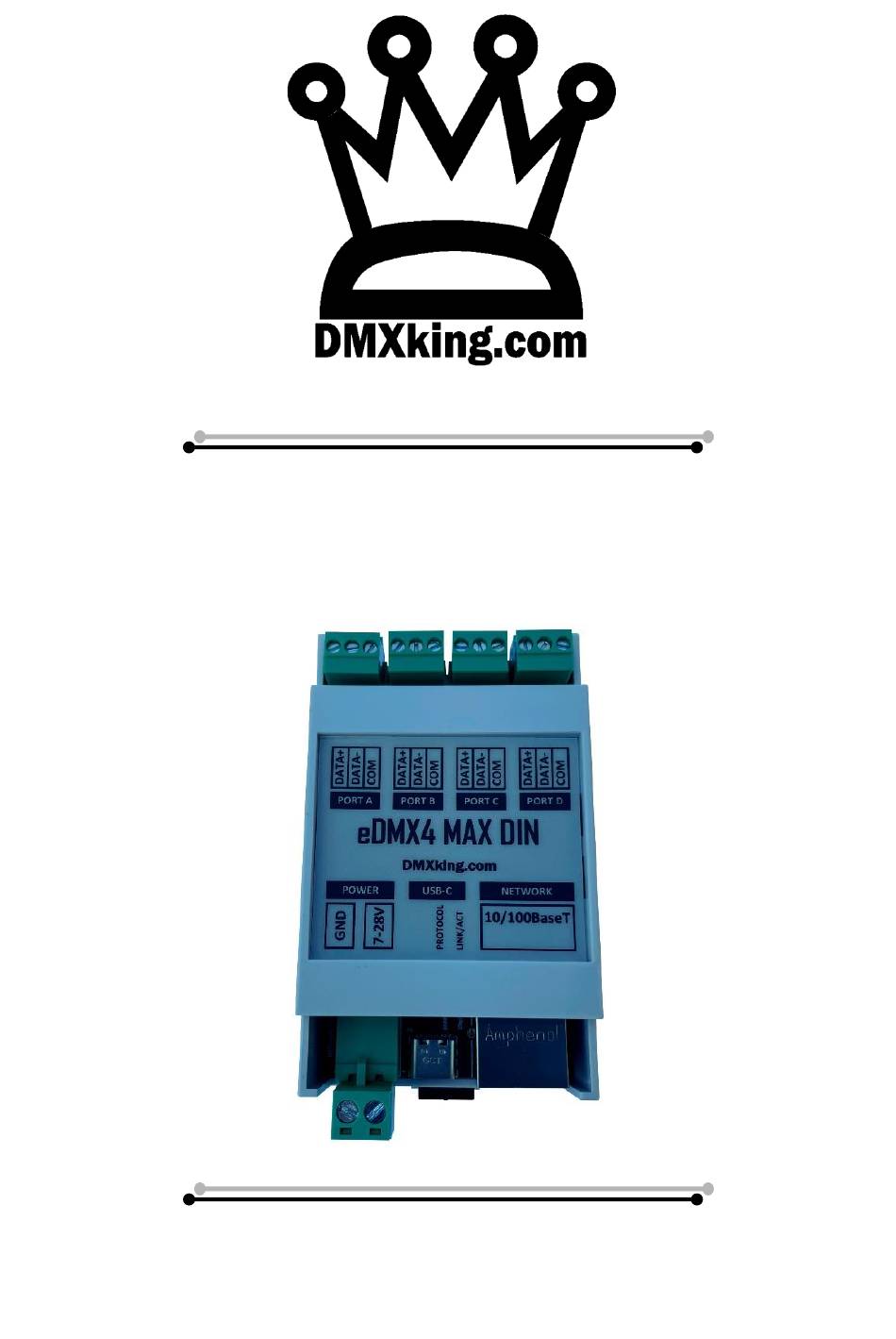

- Page 1 MAX DIN USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0...
-
Page 2: Table Of Contents
/ E1.31 Priority – DMX Receive ............................13 DMX512 In – Unicast / Broadcast / Multicast ..........................14 Compatible Software ................................14 Technical Specifications ................................15 Warranty ....................................15 DMXking Hardware Limited Warranty ............................15 DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... -
Page 3: Introduction
HARDWARE AND FIRMWARE VERSIONS From time-to-time minor hardware changes occur in our products usually small feature additions or unseen optimizations. The table below lists eDMX4 MAX DIN product variants. Check the product label for P/N details. Part Number Feature addition 0126-1.1... -
Page 4: Main Features
Supported operating systems: Windows, MacOS, Linux, iOS, Android − eDMX4 MAX DIN - 4x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support − Art-Net broadcast, Art-Net II,3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support −... -

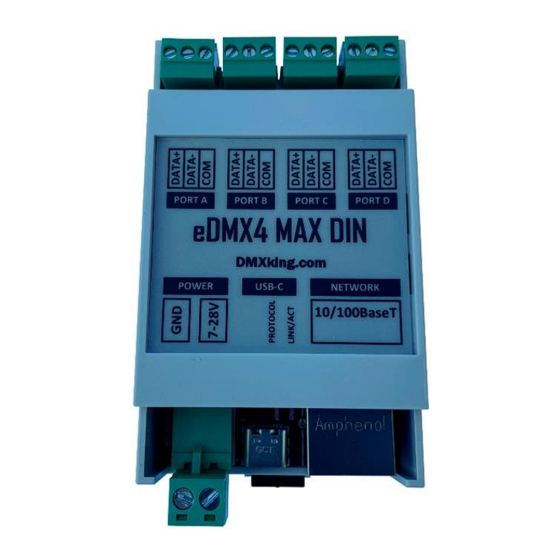

Page 5: Exterior View
Network activity. Green = Link, Flash = Traffic Port A DMX512 Port A TX/RX activity Port B DMX512 Port B TX/RX activity Port C DMX512 Port C TX/RX activity Port D DMX512 Port D TX/RX activity DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... -
Page 6: Default Configuration
3. DEFAULT CONFIGURATION All eDMX4 MAX DIN units ship with default IP address settings. Please reconfigure network settings as required before use. Parameter Default Setting IP Address 192.168.0.112 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.254 IGMPv2 Unsolicited Unchecked Report Network Mode Static IP address DMX512 Port configuration parameter defaults. -
Page 7: Configuration Utility
This is intended as a deployment mechanism where complete device configuration and show content can be prepared externally on an SD card. DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... -
Page 8: Network Tab
Network Adapter IP Address dropdown box and also ensure the subnet mask is appropriate. Settings Broadcast is suppored by eDMX MAX which allows node settings to be updated regardless of the network adapter subnet range. DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... -
Page 9: Port Tab
We do not recommend performing firmware updates over routed networks. Note only signed encrypted firmware files from DMXking.com can be successfully loaded to ensure you won’t brick your device by accident. Future firmware releases for this product will be in the form 0126-500-VersionMajor.VersionMinor.enc... - Page 10 When incoming DMX512 channel 1+N exceeds 512 to channels are ignored/lost. Make changes to the applicable Port settings then click Update. Changes on all port tabs are updated regardless of which tab the Update button is clicked. DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0...
-
Page 11: Recorder Tab
Both the ON level and mouse wheel step can be set by right clicking anywhere within the black display area. Number of channels transmitted and the refresh rate can be adjusted using the applicable sliders adjacent to transmit options. DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... - Page 12 Note Art-Net II unicast is not supported meaning only Art-Net broadcast streams are displayed. The DMX Display utility works with any manufacturers Art-Net hardware and can be useful for diagnostics and simple testing of DMX512 fixtures. DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0...
-
Page 13: Node Report
NODE REPORT Node provide a brief status report indicating DMX frame rates, SYNC status, SHOW playback selection and RECorder status. Above an eDMX4 MAX DIN reports Port A,B,C,D at 40fps with no synchronization present (Async mode) and the recorder state Idle. -
Page 14: Summary Of Settings
DMX Universe sACN 1-63999 which is translated to an Art-Net Port-Address (Net:Sub:Uni). Setting DMX Universe = 1 results in sACN Universe = 1 and Art-Net 00:0:0 (Universe 1 = Art-Net Universe DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... -
Page 15: Ports, Merging, Priority And Dmx Input
3 seconds applies. If you want to HTP/LTP merge two sACN streams together they must be of the same priority. SACN / E1.31 PRIORITY – DMX RECEIVE DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... -
Page 16: Dmx512 In - Unicast / Broadcast / Multicast
There are many free and commercial software packages available and by selecting Art-Net as your DMX device compatibility is guaranteed. Check the following page for a short list of compatible software: http://dmxking.com/control-software DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0... -
Page 17: Technical Specifications
Failure due to operator error or incorrect application of product. What DMXking will do DMXking will repair or replace, at its sole discretion, the defective hardware. How to obtain service Contact your local distributor or visit https://www.dmxking.com DMXking.com • JPK Systems Limited • New Zealand 0126-700-4.0...
