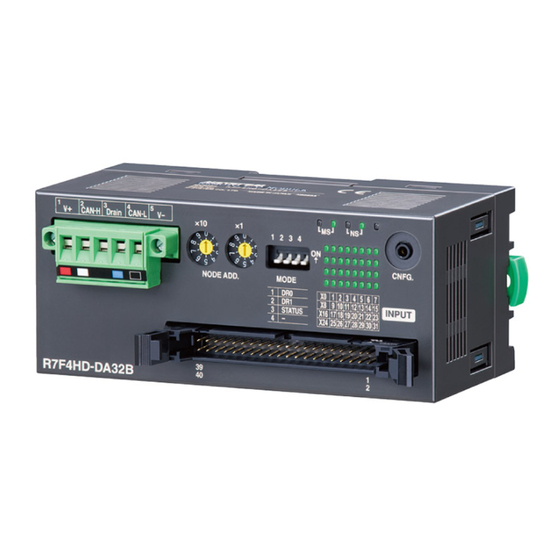

Devicenet i/o module

Advertisement

Quick Links

INSTRUCTION MANUAL
Devicenet
(PNP discrete input, PNP transistor output, 16 points each, MIL connector)
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
■ PACKAGE INCLUDES:
Discrete I/O module ............................................................(1)
DIN rail mounter slider ......................................................(2)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
■ EDS FILE
EDS files are downloadable at our web site.
DeviceNet is registered trademark of ODVA.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
I/O MODULE
®
MODEL
POINTS OF CAUTION
■ CONFORMITY WITH EU DIRECTIVES
• The equipment must be mounted inside the instrument
panel of a metal enclosure.
• The actual installation environments such as panel con-
figurations, connected devices, connected wires, may af-
fect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures* to ensure the CE con-
formity.
* For example, installation of noise filters and clamp fil-
ters for the power source, input and output connected
to the unit, etc.
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and I/O signal for safety.
• Before you remove the terminal block or mount it, make
sure to turn off the power supply and I/O signal for safety.
• DO NOT set the switches on the module while the power
is supplied. The switches are used only for maintenance
without the power.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
• Observe at the minimum of 10 mm left and right the
units for heat dissipation when mounting vertically.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
• Be sure to close the terminal cover for safety.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
R7F4HD-DAC32D
EM-8006-F Rev.2 P. 1 / 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R7F4HD-DAC32D and is the answer not in the manual?

Questions and answers

Summary of Contents for MG R7F4HD-DAC32D

  • Page 1 10 minutes is required for satisfying complete performance described in the data sheet. DeviceNet is registered trademark of ODVA. EM-8006-F Rev.2 P. 1 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 2: Component Identification

    0 (125 kbps), 1 (250 kbps) or 2 (500 kbps). For the settings auto-tracking, it analyzes the PLC’ s network to determine the baud rate on the network. EM-8006-F Rev.2 P. 2 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 3: Terminal Assignment

    Input 13 Input 5 Input 12 Input 4 Input 11 Input 3 Input 10 Input 2 Input 9 Input 1 Input 8 Input 0 EM-8006-F Rev.2 P. 3 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 4: Mounting Instructions

    3) Remove the upper hook of the unit from the DIN rail. 2) Mount the unit with M4 screws referring to the External Dimensions. (Torque: 1.4 N·m) EM-8006-F Rev.2 P. 4 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 5: Terminal Connections

    ■ EXTERNAL DIMENSIONS unit: mm [inch] 138 [5.43] 123 [4.84] 75 [2.95] 115 [4.53] 55 [2.17] DIN rail (35mm wide) (4[.16]) 2-4.3 [.17] dia. 4 [.16] deep EM-8006-F Rev.2 P. 5 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 6: Mounting Requirements

    DeviceNet VS1+ VS2+ device CAN_L VS2- V– VS1– VS2– VS2- VS1– VS2– VS1+ VS1+ VS1– VS1– MOUNTING REQUIREMENTS unit: mm [inch] 125 [4.92] 2-M4 EM-8006-F Rev.2 P. 6 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 7: Setting Range

    ‘Begin’ address is determined by the R7F4HD’s node address and the master setting. ■ Without Status Output data Input data Begin + 0 R7F4HD-DAC32D (x0 to x15) Begin + 0 R7F4HD-DAC32D (y0 to y15) ■ With Status Output data Input data...
  • Page 8 0: Normal/1: Low voltage (approx. 16 V or less) Excitation supply (output) 0: Normal/1: Low voltage (approx. 16 V or less) Unused Unused Unused Unused Unused EM-8006-F Rev.2 P. 8 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 9: Output Data

    (R7F4HD to master) (Master to R7F4HD) Enabled Disabled *1. Output Data means those sent to the master. *2. Input Data means those received from the master. EM-8006-F Rev.2 P. 9 / 9 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
