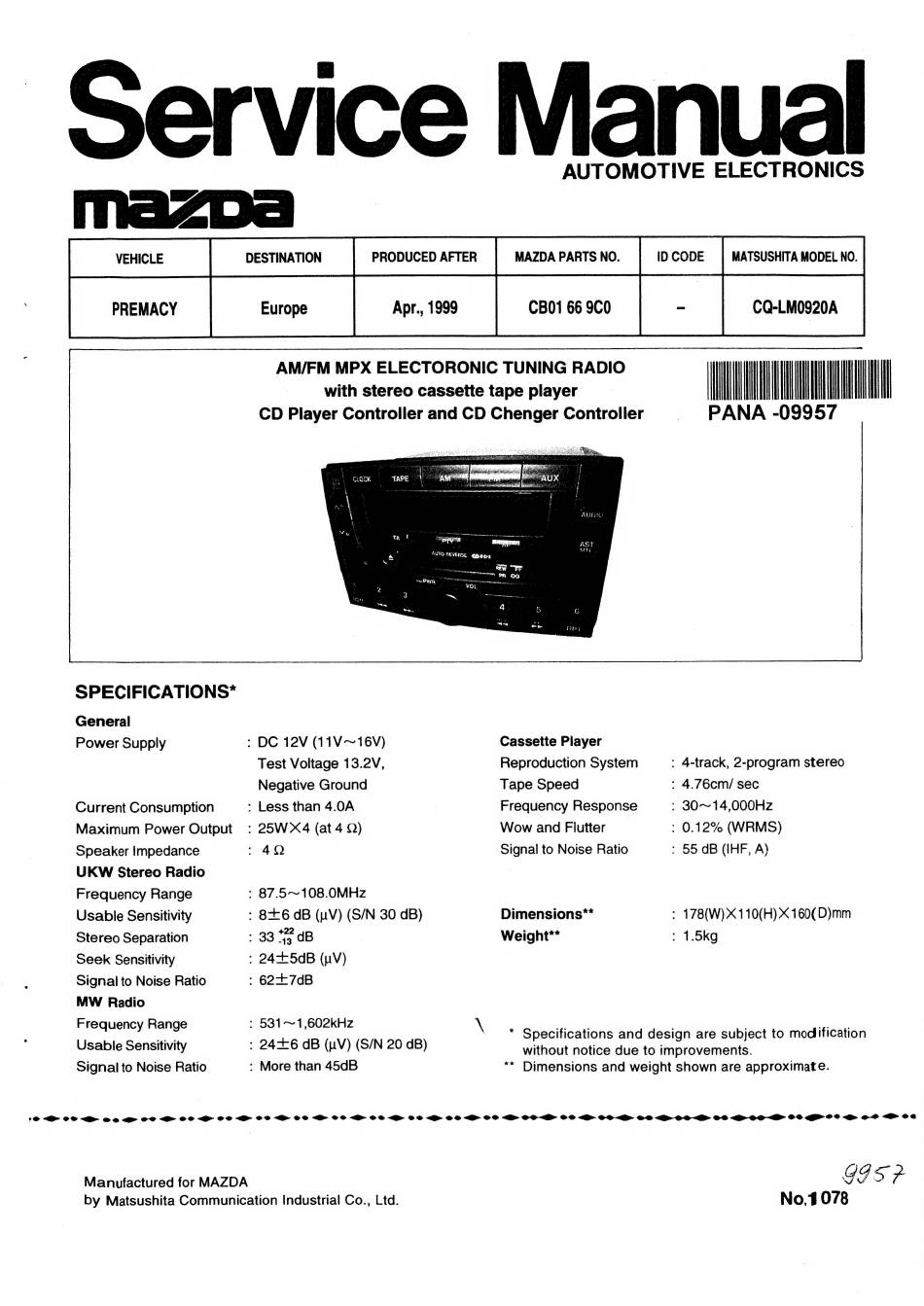

Panasonic MAZDA CB01 66 9C0 Service Manual

AUTOMOTIVE ELECTRONICS
mazpDa
PREMACY eae Apr., 1999 CB01 66 9C0 =| CQ-LM0920A
AM/FM MPX ELECTORONIC TUNING RADIO Wai
with stereo cassette tape player A
CD Player Controller and CD Chenger Controller = PANA -09957
AUTO REVERSE eh mos
SPECIFICATIONS*
General
Power Supply : DC 12V (11V~16V) Cassette Player
Test Voltage 13.2V, Reproduction System : 4-track, 2-program stereo
Negative Ground Tape Speed : 4.76cm/ sec
Current Consumption : Less than 4.0A Frequency Response : 30~14,000Hz
Maximum Power Output : 25W%X4 (at 4 Q) Wow and Flutter : 0.12% (WRMS)
Speaker Impedance : 4Q Signal to Noise Ratio : 55 dB (IHF, A)
UKW Stereo Radio 7
Frequency Range : 87.5~108.0MHz
Usable Sensitivity : 86 dB (uV) (S/N 30 dB) Dimensions** > 178(W)X110(H)X160(D)mm
Stereo Separation : 33 en dB Weight** : 1.5kg
Seek Sensitivity - 24+5dB (pV)
Signal to Noise Ratio : 62--7dB
MW Radio
ee cali \. Specifications and design are subject to modification
Usable Sensitivity : 2456 dB (uV) (S/N 20 dB) without notice due to eee acie
Signal to Noise Ratio : More than 45dB ** Dimensions and weight shown are approximate.
ep oo p- oom oo DP oo Poo DP oo PD oe DP oo Poe VP oo DP oe PD oo DH coP oo |P oo DP oo DP oe DP cf PD coeoM O06 WP oe wS or PD oe
DBE.
Manufactured for MAZDA
g vie, a
by Matsushita Communication Industrial Co., Ltd. No.4078
