1. Disassembly Procedures:
Note:
This "Disassembly Procedures" is for EMEA only, not for other
regions. Please note that Dell will deem warranty void if any
disassembly is done on the monitors.
List of tools/equipment:
1. Philips-head screwdriver
2. Electric screwdriver
3. Hex-head screwdriver
4. Soldering iron and absorber

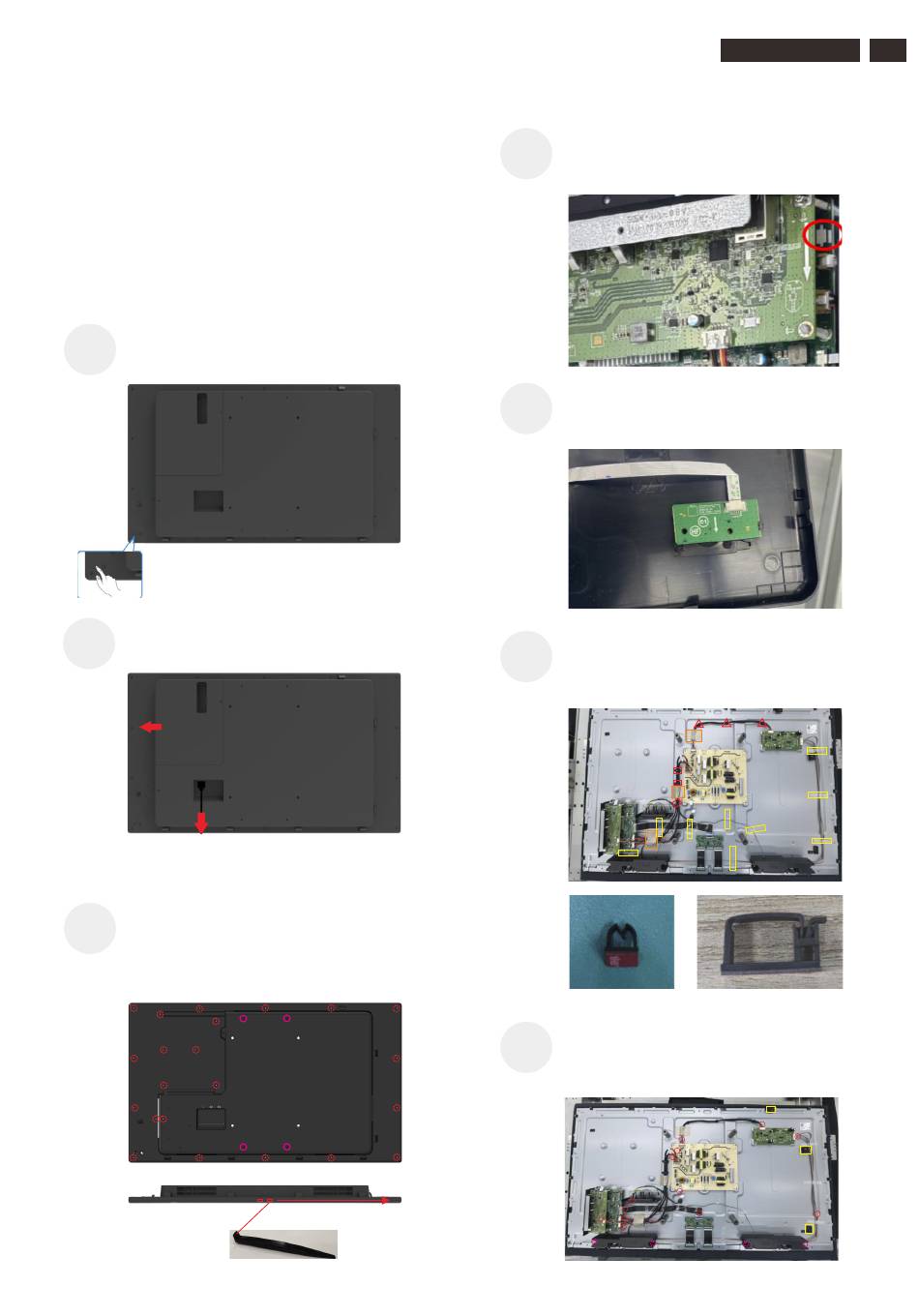

S1
Turn off power.
Unplug external cables (power cable and video cable)
S2
and OptiPlex PC box (optional) from the monitor.
PC Box
Loose the display back cover.
a. Place the monitor on a soft cloth or cushion.
b. Remove 22 screws (M3x4).
c. Remove 4 rubbers plugs.
S3
d. Use a rework jip to insert the hole on the bottom side.
e. Loose the back cover with Jip as indicated by arrow.
f. Pull up the display back cover to by band.
rubber plug
Remove the display back cover.
S4
a. Disconnect joystick cable from main board.
b. Remove the display back from panel.
Remove joystick board from the back cover.
S5
a. Remove 2 screws (M3x5).
b. Peel all tape on the key cable.
Remove all tapes and cable clips.
a. Remove 3 strips of conductive tape.
S6
b. Remove 9 strips of white tape.
c. Remove 6 cable clips.
Triangle cable clip
Remove two speakers and all cables.
a. Remove 4 screws (M4x10) on two speakers.
S7
b. Peel 3 rubber plugs.
c. Disconnect and remove all cables.
1
5
4
6
6
3
4
5
4
DELL P5525QC
square cable clip
rubber
1
2
rubber
3
2
rubber
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the P5525QC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dell P5525QC

  • Page 1 Disconnect joystick cable from main board. This “Disassembly Procedures” is for EMEA only, not for other b. Remove the display back from panel. regions. Please note that Dell will deem warranty void if any disassembly is done on the monitors. List of tools/equipment: 1.
  • Page 2 DELL P5525QC Remove USB board and I/O cover. a. Remove 2 Hex screws (M3x8) on VGA connector. b. Remove 2 screws (M3x6) on the USB board. c. Remove the I/O cover and USB board. speaker’s cable Disconnect IR cable and LED cable from PCBA.
  • Page 3 DELL P5525QC Remove the LED board and IR board from front cover. Loose the bottom side of the front cover. a. Remove the LED board from the lower left corner a. Remove10 screws (M3x5). of the front cover. b. Remove the IR board from the bottom side of the front cover.
  • Page 4 DELL P5525QC Remove LGP. Remove electrolyte capacitors (red mark) from a. Remove LGP with a sucking tool. printed power board. Remove the reflector film. a. Remove a reflector film from the back bracket. S25-1 Cut the glue between bulk cap. and PCB with a knife.
  • Page 5 DELL P5525QC S25-4 Take out bulk cap. pin solder with soldering iron and absorber. S25-5 Lift the bulk cap. up and away from the PCB.
  • Page 6 DELL P5525QC 2. Product material information: The following substances, preparations, or components should be disposed of or recovered separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC. Capacitors or condensers Not used (containing PCB/PCT) Mercury containing components...
