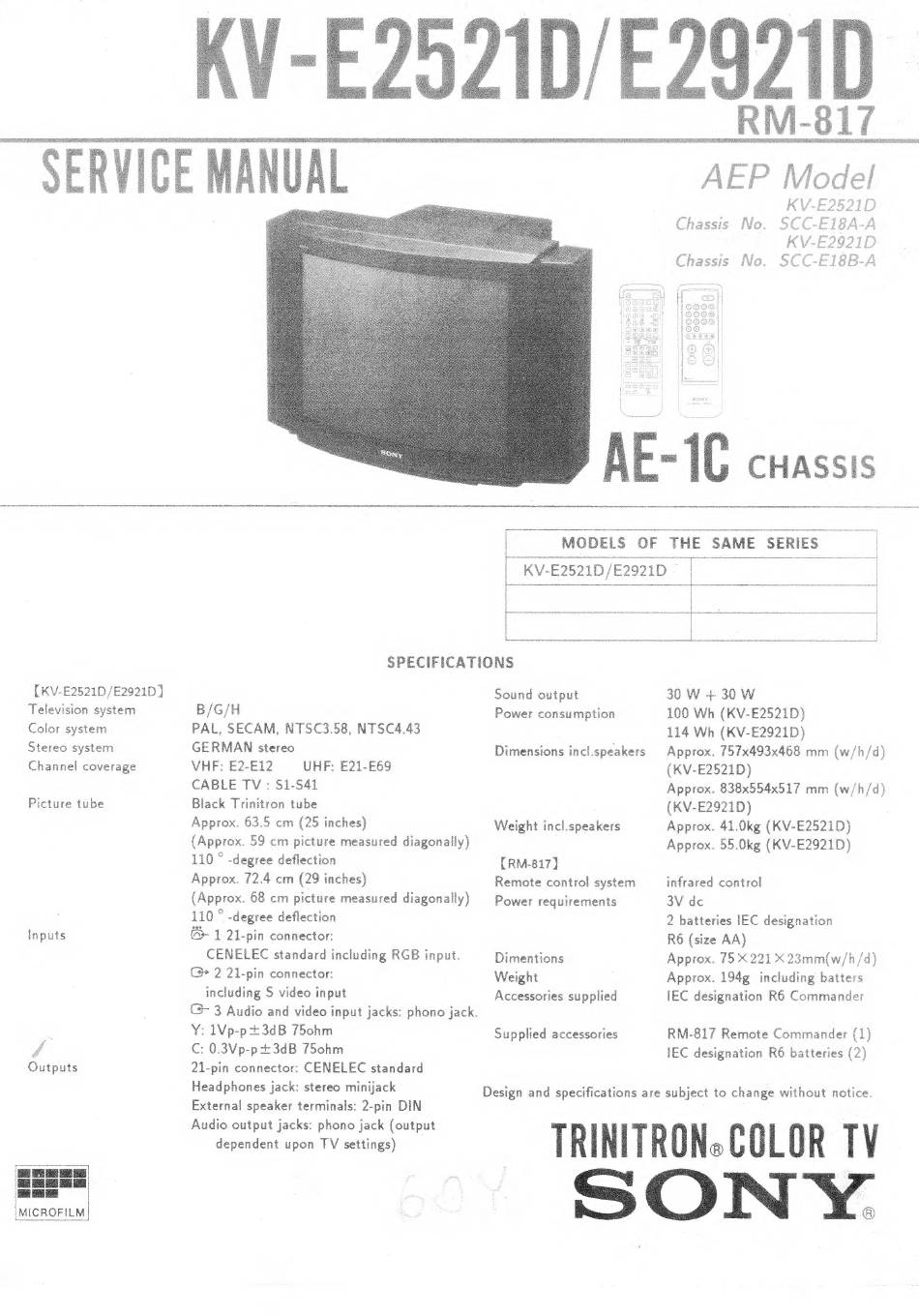

Sony TRINITRON KV-E2521D Service Manual

(KV-E£2521D /E2921D }
Television system
Color system
Stereo system
Channel coverage
Picture tube
Inputs
Outputs
aes
(MICROFILM |
SPECIFICATIONS
B/G/H
PAL, SECAM, NTSC3.58, NTSC4.43
GERMAN stereo
VHF: E2-E12 UHF: E21-E69
CABLE TV : $1-S41
Black Trinitron tube
Approx. 63.5 cm (25 inches)
(Approx. 59 cm picture measured diagonally)
110 ° -degree deflection
Approx. 72.4 cm (29 inches)
(Approx. 68 cm picture measured diagonally)
110 ° -degree deflection
@* 1 21-pin connector:
CENELEC standard including RGB input.
C} 2 21-pin connector:
including S video input
(3 3 Audio and video input jacks: phono jack.
Y¥: 1Vp-p+3dB 750hm
C: 0.3Vp-p+3dB 750hm
21-pin connector: CENELEC standard
Headphones jack: stereo minijack
External speaker terminals: 2-pin DIN
Audio output jacks: phono jack (output
dependent upon TV settings)
| MODELS OF THE SAME SERIES _
t. inte i in ea
inners Sipe
Sound output
Power consumption
Dimensions incl.speakers
Weight incl.speakers
(RM-817]
Remote control system
Power requirements
Dimentions
Weight
Accessories supplied
Supplied accessories
| KV-E2521D/E2921D |
i nn ie
30 W + 30 W
100 Wh (KV-E2521D)
114 Wh (KV-E2921D)
Approx. 757x493x468 mm (w/h/d)
(KV-E2521D)
Approx. 838x554x517 mm (w/h/d)
(KV-E2921D)
Approx. 41.0kg (KV-E2521D)
Approx. 55.0kg (KV-E2921D)
infrared control
3V de
2 batteries IEC designation
R6 (size AA)
Approx. 75 X 221 * 23mm(w/h/d}
Approx. 194g including batters
IEC designation R6 Commander
RM-817 Remote Commander (1)
IEC designation R6 batteries (2)
Design and specifications are subject to change without notice.
TRINITRON. COLOR TV
SON
