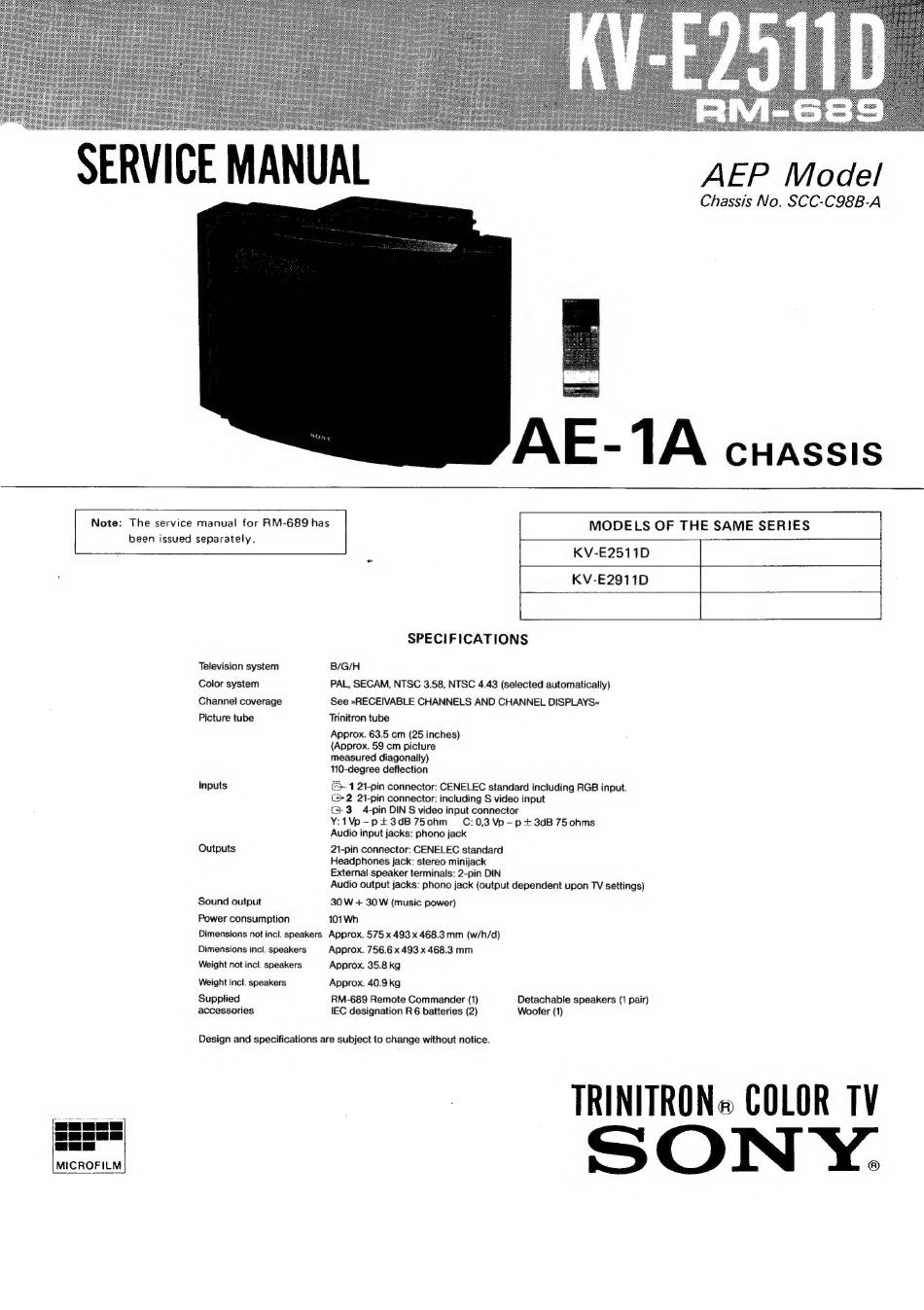

SERVICE MANUAL
Note:
The service manual
for RM-689 has
been issued separately.
AEP Model
Chassis No. SCC-C98B-A
AE-1A cuassis
MODELS OF THE SAME SERIES
KV-E2511D
MICROFILM
Television system
Color system
Channel coverage
Picture tube
Inputs
Outputs
Sound output
Power consumption
Dimensions not incl. speakers
Dimensions incl. speakers
Weight not incl. speakers
Weight incl. speakers
Supplied
accessories
KV-E2911D
SPECIFICATIONS
B/G/H
PAL, SECAM, NTSC 3.58, NTSC 4.43 (selected automatically)
See »RECEIVABLE CHANNELS AND CHANNEL DISPLAYS«
Trinitron tube
Approx. 63.5 cm (25 inches)
(Approx. 59 cm picture
measured diagonally)
110-degree deflection
G+ 1 21-pin connector: CENELEC standard including RGB input.
(2
21-pin connector: including S video input
(3
4-pin DIN S video input connector
Y¥:1Vp-p+3dB75o0hm
C:0,3 Vp -p+3dB 75ohms
Audio input jacks: phono jack
21-pin connector: CENELEC standard
Headphones jack: stereo minijack
External speaker terminals: 2-pin DIN
Audio output jacks: phono jack (output dependent upon TV settings)
30 W + 30 W (music power)
101Wh
Approx. 575 x 493 x 468.3 mm (w/h/d)
Approx. 756.6 x 493 x 468.3 mm
Approx. 35.8 kg
Approx. 40.9 kg
RM-689 Remote Commander (1)
Detachable speakers (1 pair)
IEC designation R 6 batteries (2)
Woofer (1)
Design and specifications are subject to change without notice.
TRINITRON. COLOR TV
SONTY.
