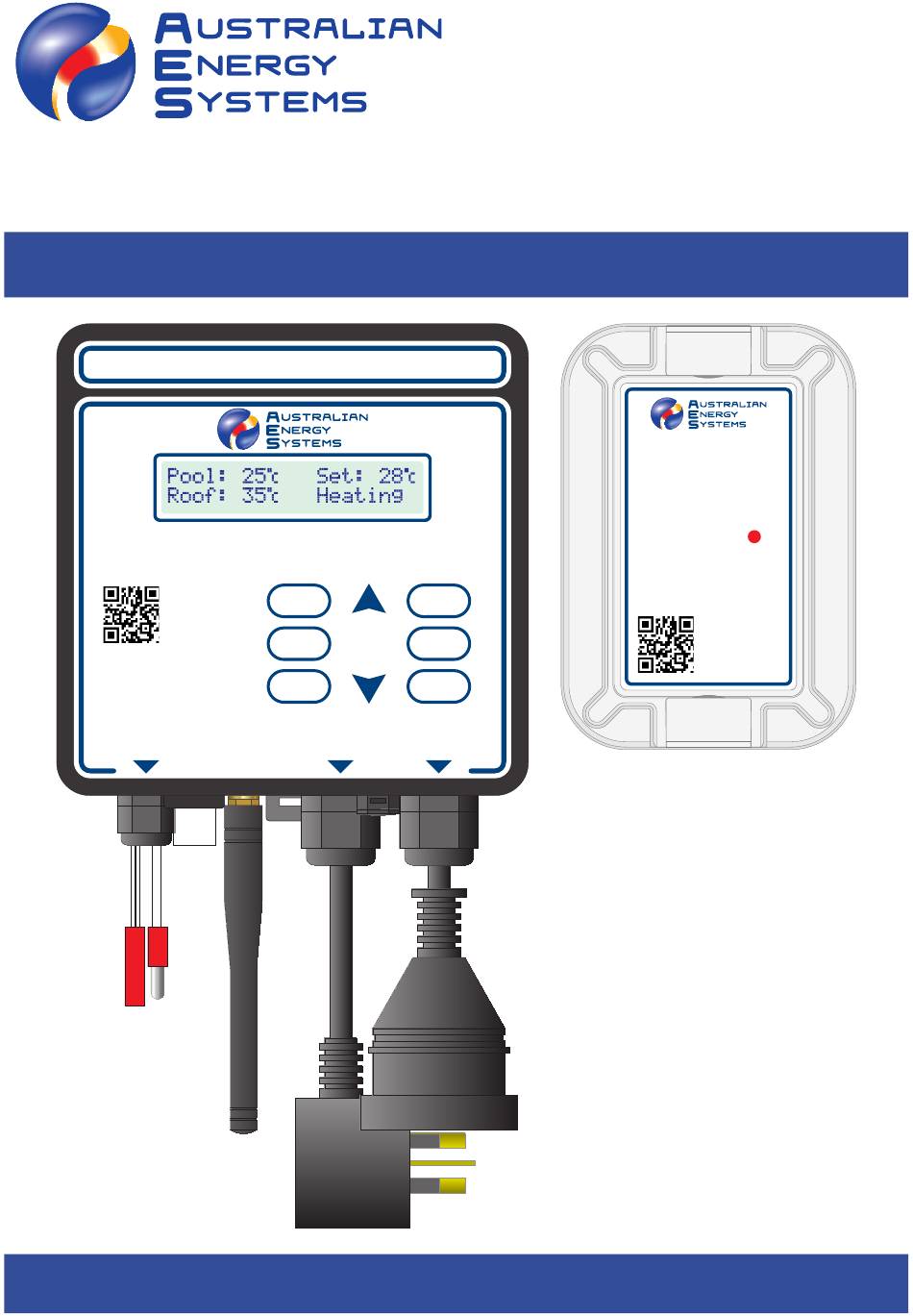

- Page 1 SC-1 WIRELESS ULTRA SOLAR CONTROLLER INSTRUCTION MANUAL ULTRA WIRELESS SOLAR CONTROLLER SC-1 ULTRA SOLAR CONTROLLER WIRELESS TEMPERATURE TRANSMITTER STATUS SETUP OVERRIDE ENTER SET POINT SC-1W CANCEL WINTER POOL SOLAR SENSOR POWER PUMP www.australianenergysystems.com.au...
-
Page 2: Table Of Contents
CONTENTS Thank you for purchasing the SC-1 Ultra Wireless Solar Controller. The SC-1 has been designed for maximum reliability and long service life. Please be sure to follow the instructions in this manual to get the best performance and life from your equipment. -
Page 3: Cautions & Warnings
CAUTIONS & WARNINGS ! Please read the instructions fully and Any damaged cables must be replaced keep this manual on hand whenever immediately to prevent electrical operating or maintaining your SC-1. shock. Although the SC-1 has a weather Unplug the SC-1 power lead before resistant design, its service life will be inspecting or working on the pump. -
Page 4: Getting To Know Your Sc-1
GETTING TO KNOW YOUR SC-1 DISPLAY ULTRA WIRELESS SOLAR CONTROLLER SC-1 User-friendly plain text menu and help system. KEYPAD Used for setup and maintenance of your SC-1. Three One-Touch buttons are provided for regularly accessed functions. POOL SENSOR INPUT SETUP OVERRIDE Connect the Pool Temperature Sensor to ENTER... -
Page 5: Sc-1 Display
SC-1 DISPLAY POOL TEMPERATURE This is the readout of the current temperature of your pool water. ROOF TEMPERATURE This is the readout of the current roof temperature. It is not an air temperature measurement. It is the temperature inside a black tube that absorbs heat from the sun. Roof Temperature in some hot and sunny climates could exceed 70 C. -
Page 6: Sc-1 Unit Installation
SC-1 UNIT INSTALLATION PRE-INSTALLATION CHECKLIST ! The SC-1 unit MUST be mounted ! Ensure that the power lead from the vertically, with the cables at the bottom Solar Pump can reach the power outlet on the SC-1 without straining. The in order to be weather resistant. -
Page 7: Pool Temperature Sensor Installation
POOL TEMPERATURE SENSOR INSTALLATION SELECT POOL SENSOR LOCATION TO HEATER Install the Pool Temperature Sensor in COLLECTOR the suction line before the solar pump. The grommet is designed to be fitted into the pipe, not into thicker walled PVC fittings. The Pool Temperature Sensor can be m o u n t e d i n a ny o r i e n t a t i o n , i n a convenient location of the pipe. -
Page 8: Wireless Roof Temperature Sensor Installation
WIRELESS ROOF TEMPERATURE SENSOR INSTALLATION ENSURE THAT SC-1W IS PAIRED TO SC-1 The SC-1W Transmitter is supplied pre- ULTRA WIRELESS SOLAR CONTROLLER SC-1 paired to the SC-1 Controller. Before installation, ensure that this pairing is still ULTRA SOLAR CONTROLLER WIRELESS TEMPERATURE correct. - Page 9 WIRELESS ROOF TEMPERATURE SENSOR INSTALLATION CONNECT SOLAR SENSOR TO SC-1W Align the keyway of the Solar Sensor plug with the socket of the SC-1W Wireless Transmitter. Push the plug into the socket, then screw down the retaining ring firmly. MOUNT SC-1W TRANSMITTER TO PIPE ! Mount the SC-1W Transmitter to the cold or hot water pipe going to or from the heater collector on the roof.
- Page 10 WIRELESS ROOF TEMPERATURE SENSOR INSTALLATION INSTALL SOLAR SENSOR Mount the Solar Panel / Temperature Sensor (Solar Sensor) in a suitable location on the roof, without straining the cable or connector. The Solar Sensor is normally mounted alongside the heater collector mats, however it can be mounted on any surface that is at the same angle to the sun as the collector mats.
-
Page 11: Power And Plumbing Connections, Standalone System
POWER AND PLUMBING CONNECTIONS Standalone System (Separate Solar Provisions) ULTRA WIRELESS SOLAR CONTROLLER SC-1 POWER SETUP OVERRIDE OUTLET ENTER SET POINT CANCEL WINTER POOL SOLAR SENSOR POWER PUMP SC-3 POWER TO HEATER COLLECTOR SOLAR FROM PUMP POOL POWER SOLAR PUMP ! Connect the SC-1 power lead to a suitable 10 Amp rated, weather resistant power outlet. -
Page 12: Power And Plumbing Connections, Integrated System
POWER AND PLUMBING CONNECTIONS Integrated System (Shared Solar Provisions) POWER CONNECTIONS ! Connect the Sanitiser System power lead to a suitable 10 Amp rated, weather resistant power outlet. ! Connect the SC-1 power lead to the Sanitiser System pool pump outlet. ! Connect the Pool Pump power lead into the piggy-back socket of the SC-1 power lead. - Page 13 ULTRA WIRELESS SOLAR CONTROLLER SC-1 SETUP OVERRIDE ENTER SET POINT CANCEL WINTER POOL SOLAR SENSOR POWER PUMP ULTRA SOL AR CONTROLLER WIRELESS TEMPERATURE TRANSMITTER STATUS SC-1W PLUMBING CONNECTIONS ! Plumb the suction line of the Solar Pump into the pool return line after the filter, and before the heated water return from the Heater Collector.
-
Page 14: How The Sc-1 Works
HOW THE SC-1 WORKS For most applications, the SC-1 can be simply installed and switched on without any further adjustment. The default set point is 28.0 C with a 1.0 C control band. This means that the solar pump will be switched ON when the water temperature falls below 27.0 C, and back OFF again when the water temperature rises above 28.0 C. -
Page 15: Winter Mode
WINTER MODE Winter mode is used to stop heating when there is not WINTER enough solar energy to heat the pool sufficiently during the winter months. In Winter mode, the SC-1 will run the solar pump for 5 minutes per day, to help preserve seals and other parts of the system. -
Page 16: Start Time
START TIME In some areas, there is enough solar energy to start the SETUP solar pump very early in the morning, resulting in high noise levels for you and your neighbours. The default setting is 7:00am. The SC-1 allows you to set the earliest start time: ! Press the SETUP button. -
Page 17: Setting The Clock
SETTING THE CLOCK ! Press SETUP button. SETUP ! Press ‡ and ˆ until Set Clock is displayed. The current time is shown in brackets. ! Press ENTER to set the clock. ! Press ‡ and ˆ to set the clock hours. This is in 24 ENTER hour format. -
Page 18: Temperature Calibration
TEMPERATURE CALIBRATION The SC-1 is pre-calibrated to the Pool Temperature SETUP sensor supplied in the kit. Re-calibrating the Pool Temperature sensor should only be required if the sensor is replaced. The Wireless Roof Temperature sensor does not require calibration, even if the sensor and/or SC-1W ENTER transmitter are replaced. -
Page 19: Pairing A New Transmitter
PAIRING A NEW TRANSMITTER The SC-1W Transmitter and SC-1 Controller are paired at the factory before being packed. If this pairing has been lost, or if the SC-1W Transmitter or SC-1 Controller is replaced in the future, this section explains how to pair the two devices. Ensure that the current SC-1W Transmitter is not communicating with the SC-1 Controller. - Page 20 PAIRING A NEW TRANSMITTER Pair the SC-1 Controller with the new SC-1W Transmitter: ! If the SC-1 Controller was showing “No RF” as detailed in Step 1, and the SC-1W Transmitter was SETUP put into pairing mode as per Step 2, the SC-1 Controller will now show “Pair?”...
-
Page 21: Wireless Link Information
WIRELESS LINK INFORMATION The SC-1 Controller can display information about SETUP the wireless link to the SC-1W Transmitter. This can be usef ul when tr ying to diagnose possible communication problems between the SC-1 and the SC-1W. ! Press the SETUP button. ENTER ! Press the ‡... -
Page 22: Troubleshooting
TROUBLESHOOTING Pool Temp Messages Possible Causes and Remedies Pool Temperature shown as “Low”. The sensor is open circuit (e.g. wire has been cut). The sensor is faulty and measuring a false very low reading. The temperature is 2.0 C or lower. If the temperature really is 2.0 C or lower, then no action is required. -
Page 23: Resetting The Circuit Breaker
TROUBLESHOOTING Hardware Error Messages Explanation of Message The SC-1W is in shade for too much of the daylight hours. The rechargeable battery in the SC-1W Transmitter is aged. Check that the SC-1W is full sun for most of the day. Have any trees grown up since the SC-1W was installed? Replace the SC-1W battery. -
Page 24: Warranty
WARRANTY Australian Energy Systems Pty Ltd (“Australian Energy Systems”) guarantees the Ultra Solar Controller to be free from defects in material and workmanship when subjected to normal use and service. This is a limited 3 year warranty, whereby the faulty device is returned to Australian Energy Systems, or Authorised Dealer, freight prepaid within three years from the date of purchase.
