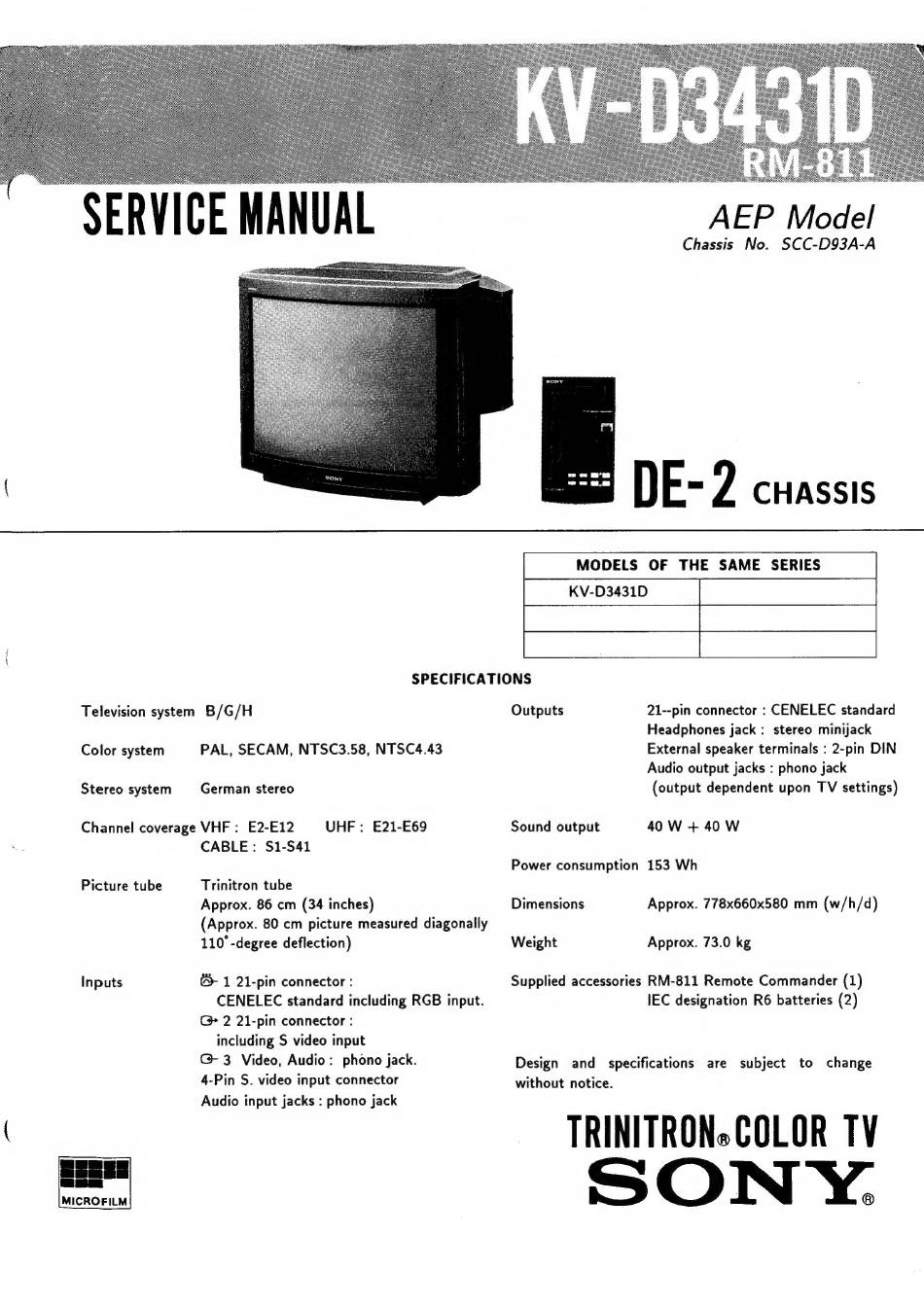

Sony TRINITRON KV-D3431D Service Manual

SERVICE MANUAL
AEP Model
Chassis No. SCC-D93A-A
SPECIFICATIONS
Television system B/G/H
Color system PAL, SECAM, NTSC3.58, NTSC4.43
Stereo system German stereo
Channel coverage VHF : E2-E12 UHF : E21-E69
CABLE: S1-S41
Trinitron tube
Approx. 86 cm (34 inches)
(Approx. 80 cm picture measured diagonally
110°-degree deflection)
Picture tube
Inputs &- 1 21-pin connector :
CENELEC standard including RGB input.
C} 2 21-pin connector :
including S video input
( 3 Video, Audio: phono jack.
4-Pin S. video input connector
Audio input jacks : phono jack
BEES
MICROFILM
Outputs 21--pin connector : CENELEC standard
Headphones jack : stereo minijack
External speaker terminals : 2-pin DIN
Audio output jacks : phono jack
(output dependent upon TV settings)
Sound output 40 W + 40 W
Power consumption 153 Wh
Dimensions Approx. 778x660x580 mm (w/h/d)
Weight Approx. 73.0 kg
Supplied accessories RM-811 Remote Commander (1)
IEC designation R6 batteries (2)
Design and specifications are subject to change
without notice.
