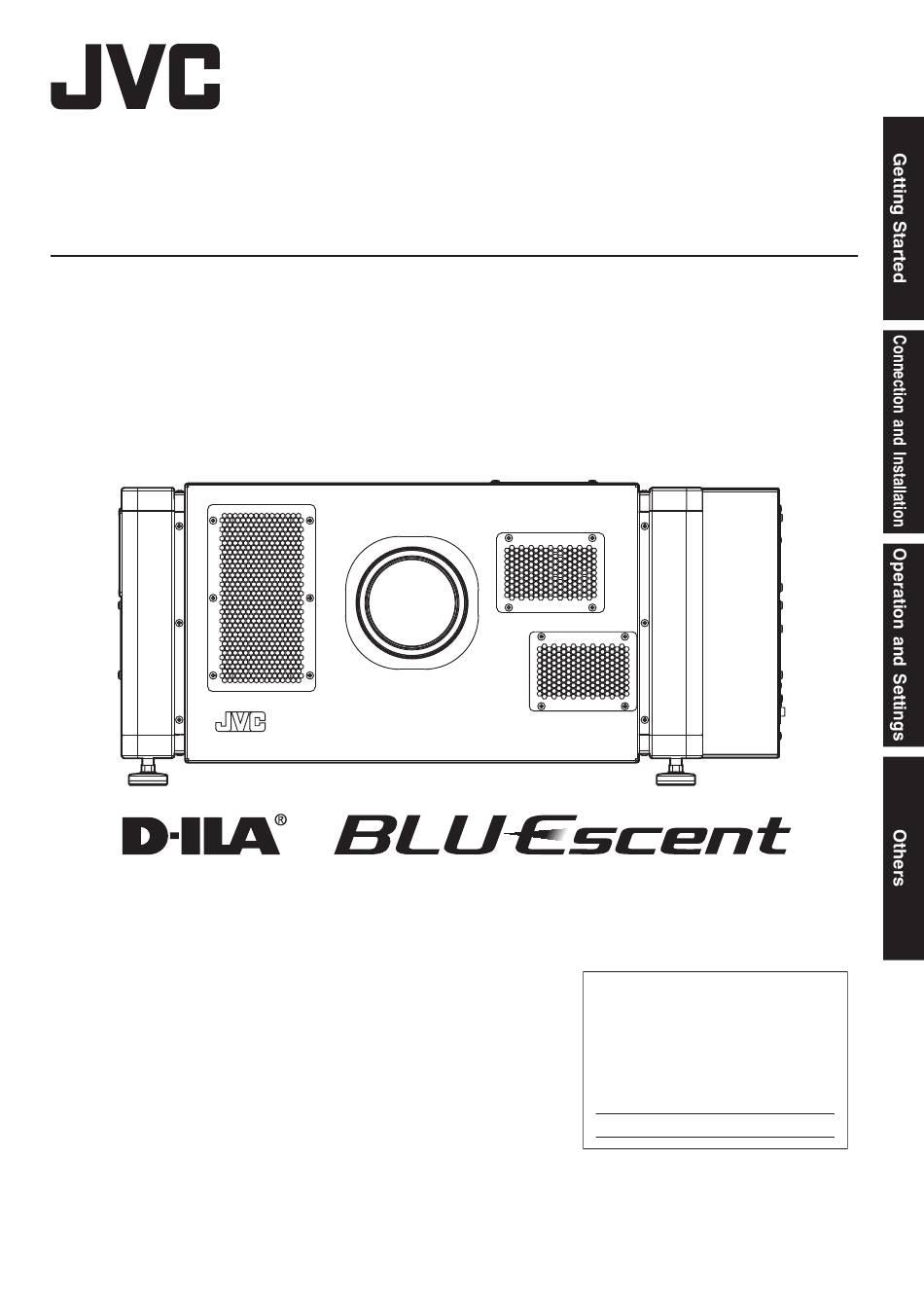

D-ILA

PROJECTOR

DLA-VS8000

Thank you for purchasing this JVC product.

Please study this instruction manual carefully before starting to

operate the unit, in order to use the unit correctly.

We take no responsibility for any problems resulting from misuse

of this unit by operating this equipment other than instructed in this

manual.

INSTRUCTIONS

For Customer use :

Enter below the model No. and

the serial No. which are located

on the back of the cabinet. Retain

this information for future

reference.

Model No.

Serial No.

B5A-4457-00

Table of Contents

Chapters

Need help?

Do you have a question about the D-ILA BLUEscent DLA-VS8000 and is the answer not in the manual?

Questions and answers

Summary of Contents for JVC D-ILA BLUEscent DLA-VS8000

Page 1 INSTRUCTIONS D-ILA PROJECTOR DLA-VS8000 Thank you for purchasing this JVC product. For Customer use : Please study this instruction manual carefully before starting to Enter below the model No. and operate the unit, in order to use the unit correctly.
Page 2: Safety Precautions
WARNING REMOVE THE LENS COVER BEFORE TURNING ON THE PROJECTOR Changes or modifications not approved by JVC could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 3 IMPORTANT SAFEGUARDS 600 mm and above Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE 600 mm 600 mm CAN RESULT IN POTENTIAL ELECTRICAL and above and above SHOCK OR FIRE HAZARD.
Page 4 Do not detach or attach the projection lens with the power replacement, please consult your dealer, or the nearest connected. authorized JVC service center. Attempting to disassemble, repair or modify the projector Video images can burn into the electronic component parts.
Page 5 POWER CONNECTION IMPORTANT (Europe only): For USA and Canada only Use only the following power cord. The wires in the mains lead on this product are Power cord colored in accordance with the following cord: : Earth Green-and-yellow Blue : Neutral Brown : Live As these colors may not correspond with the...
Page 6 ENGLISH Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.
Page 7 IEC60825-1 CLASS 1 LASER PRODUCT LASER CAUTION LABEL IEC60825-1:2014 WARNING Do not look into the lens while in use. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Location information of the labels RIGHT SIDE IEC60825-1:2014...
Page 8 IEC62471-5 RG2 label for IEC62471-5:2015 B4B-0070-00 Location information of the labels TOP SIDE RG2 LABEL As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015 Light source specifications 30 W Laser diodes ×12 Wavelength 440 - 470 nm Maximum output is 68.5 W Beam divergence angle from lens of this unit α...
Page 9: Table Of Contents
List of Menu Items ..........29 Content of this manual Picture Adjust ........... 31 Contents of this manual are the copyright of JVC. All Input Signal ..........35 rights reserved.Unauthorized reproduction and duplication of this manual, in whole or in part, Installation ..........
Page 10: Names And Functions Of Parts
Names and Functions of Parts Front/Right, Left and Rear Side Intake air Exhaust air Intake air Intake air Intake air Exhaust Intake air Exhaust air A Air Inlet/Filter D Lens Mounting Bracket The air inlets absorb air to cool the interior of the Mount the optional projection lens.
Page 11: Right Side
Right Side JK L STANDBY/ON LIGHT WARNING OPERATE UPDATE H [DisplayPort] input terminal O [REMOTE CONTROL] terminal (stereo (DP1-1 to 1-4, DP2-1 to 2-4) mini jack) (20-pin male) This terminal connects a remote control directly to the projector with a cable. For connecting to devices that support DisplayPort output.
Page 12: Installation
Installation Please read the following carefully when installing this unit. CAUTION Special expertise and techniques are required for mounting this unit. Be sure to ask your dealer or a specialist to perform mounting. Turn off the power of the projector unit, and unplug the power cord when fixing screws to the unit body. Use only the screws that are used for this unit.
Page 13: Minimum Space Required
Minimum Space Required Do not use a cover that may enclose this unit or block the air inlets/vent holes. Allow sufficient space around this unit. When this unit is enclosed in a space with dimensions as indicated below, ventilate accordingly so that the internal and external temperatures are the same.
Page 14: Projector Installation Angle
Projector Installation Angle There are no restrictions on the vertical or horizontal installation angle of this unit. CAUTION Vertical Angle Special expertise and techniques are required for mounting this unit. Be sure to ask your dealer or a specialist to perform mounting. Adjusting the Inclination Adjust the horizontal angle of the projector.
Page 15: Installing The Projector And Screen
Installing the Projector and Screen It is recommended that this projector be installed at right When shift amount in the downward direction angle to the screen. is -50 % When a lens that supports lens shift (optional) is in use, Install the projector such that the upper end of the you can make use of the lens shift feature of this projector projection screen is at the same height as the center of...
Page 16 When shift amount in the left direction is -25 % Install the projector such that the center of the lens is aligned with the 1/4 position from the right edge of the screen. When light passes through the glass of projection booth MEMO When light passes through the glass, the quantity of...
Page 17: Screen Size And Projection Distance
Screen Size and Projection Distance Adjust the distance from the lens to the screen to achieve your desired screen size. GL-MS8016SZ Zoom lens Projection distance Projection Screen Size Image Width (Diagonal Length) Tele End Wide End 70" (Approx. 1.79 m) 1.54 m 2.73 m 2.24 m...
Page 18: Connecting Video Signals
Connecting Video Signals Possible Input Signals and Projected Image No. of Total No. Total No. No. of Projector Displayed V Freq. Effective H Freq. dot CLK Input Designation of Lines of Dots Effective Terminal for Projector [Hz] Lines [kHz] [MHz] [line] [dot] Dots [dot]...
Page 19 3840x2160p60 x 8ch DP1-1, DP1-2, DP1-3, DP1-4 : Odd Frame Input DP2-1, DP2-2, DP2-3, DP2-4 : Even Frame Input 7680 7680 7680 7680 DP2-1 DP2-2 DP1 -1 DP1 -1 DP1-1 DP1 -2 DP1 -2 DP1-2 4320 4320 DP1 -3 DP1 -3 DP1-3 DP1 -4 DP1 -4...
Page 20 1920x2160p60 x 8ch DP1-1, DP2-1, DP1-2, DP2-2 : Left Frame Input DP1-3, DP2-3, DP1-4, DP2-4 : Right Frame Input 7680 DP1-1 DP2-1 DP1-3 DP2-3 4320 DP1-2 DP2-2 DP1-4 DP2-4 Displayed Image 60Hz DP1-1, DP2-1, DP1-2, DP2-2 Fa (L) Fa+1(L) Fa+2(L) Fa+3(L) Fa+4(L) (Left Frame)
Page 21 1920x2160p120 x 8ch DP1-1, DP2-1, DP1-2, DP2-2 : Left Frame Input DP1-3, DP2-3, DP1-4, DP2-4 : Right Frame Input 7680 DP1-1 DP2-1 DP1-3 DP2-3 4320 DP1-2 DP2-2 DP1-4 DP2-4 Displayed Image 120Hz DP1-1, DP2-1, Fa+1 Fa+2 Fa+3 Fa+4 Fa+5 Fa+6 Fa+7 Fa+8 DP1-2, DP2-2...
Page 22 3840x2160p60 x 4ch DP1-1, DP1-2, DP1-3, DP1-4 : Input DP2-1, DP2-2, DP2-3, DP2-4 : No Input 7680 7680 DP1 -1 DP1 -1 DP1-1 DP1 -2 DP1 -2 DP1-2 4320 DP1 -3 DP1 -3 DP1-3 DP1 -4 DP1 -4 DP1-4 Displayed Image 60Hz DP1-1,2,3,4 Fa+1...
Page 23 3840x2160p120 x 4ch DP1-1, DP1-2, DP1-3, DP1-4 : Input DP2-1, DP2-2, DP2-3, DP2-4 : No Input 7680 7680 DP1 -1 DP1 -1 DP1-1 DP1 -2 DP1 -2 DP1-2 4320 DP1 -3 DP1 -3 DP1-3 DP1 -4 DP1 -4 DP1-4 Displayed Image 120Hz Fa+1 Fa+2...
Page 24: Connecting The Projector
Connecting the Projector Connecting to the DisplayPort Terminals This Unit PC, etc. To [DP1-1] to [DP2-4] Input Terminals STANDBY/ON LIGHT WARNING OPERATE UPDATE DisplayPort Terminal DisplayPort Cable (Sold Separately) For 8-ch input mode, connect to the [DP1-1] to [DP2-4] terminals. For 4-ch input mode, connect to the [DP1-1] to [DP1-4] terminals.
Page 25: Connecting To The Rs-232C Terminal
Connecting to the RS-232C Terminal This Unit Laptop, etc. To [RS-232C] Terminal RS-232C Terminal RS-232C Connection Cable (Sold Separately) STANDBY/ON LIGHT WARNING OPERATE UPDATE For more information on control, please refer to “External Control”P. 57. Connecting to the REMOTE Terminal This Unit To [REMOTE] Terminal Wired Remote Controller...
Page 26: Turning On The Main Power
Turning On the Main Power Check to ensure that this projector, computer, and switching hub are properly connected Connect the power cord to the power input terminal of this projector Power Cord (Supplied) CAUTION Do not connect the power cord when a lens (optional) is not attached. Insert plug into the power outlet on the wall Remove the lens cap Turn on the main power of the projector to set to [C]...
Page 27: Projecting Image
Projecting Image Connect the power cord, and ensure that the [STANDBY/ON] indicator lights up in red. Remove the lens cap. Turn on the power Press the [OPERATE] button on the projector unit for more than one second. The unit is turns on and the image is projected. The [STANDBY/ON] indicator lights up in green.
Page 28: Firmware Update
Firmware Update Required Equipment A PC capable of connecting to the Internet, downloading the firmware for updating from our website and extracting the zip file. USB drive (1 GB or more, FAT32 format) * Make sure there are no other folders and files in the USB drive. Downloading the Update File Checking the Firmware Version Performing the Update...
Page 29: Adjustments And Settings In The Menu
Adjustments and Settings in the Menu You can use the optional remote control to display menus and configure various function settings. This chapter describes the functions that can be configured by displaying the menu. * For information on how to configure using external control, please consult your dealer. Pressing the [MENU] button displays the menu.
Page 30 Installation Lens Control ..............................P. 37 9 Focus ................................. P. 37 9 Zoom ................................P. 37 9 Shift ................................P. 37 9 Image Pattern ............................. P. 37 9 Lock ................................P. 38 Pixel Adjust ..............................P. 39 9 Adjust ................................. P. 39 9 Adjust Area ..............................
Page 31: Picture Adjust
Picture Adjust Picture Mode You can adjust the image quality according to the type of video image you are viewing. Setting Description Natural Image quality that focuses on natural color and gradation reproduction. Suitable for displaying video images in general. Dynamic This is the picture setting best suited for viewing the picture in a room that cannot be made completely dark.
Page 32: Color Temp
Color Temp. For setting the color temperature of the video image. The selectable “Color Temp.” settings vary according to “Picture Mode”. “Color Temp.” Color Temp. Description 6380K(0.31,0.37) Increasing the value enhances the blue tone of the video image, while decreasing the value enhances the red tone.
Page 33: Gamma
Gamma You can adjust the output value of the projected image with respect to the video signal input. “Gamma” Gamma Description The gamma is set to “1.8”. The gamma is set to “2.2”. The gamma is set to “2.6”. Custom 1 to Custom 3 Enables fine adjustment of gamma according to preference.
Page 34: Blur Reduction
Blur Reduction For reducing the after-image, which occurs in a fast-moving scene. Blur Reduction is grayed out and cannot be adjusted when signal is out of range or when detecting the input. Clear Motion Drive For reducing the after-image, which occurs in a fast-moving scene. Pressing the [C.M.D.] button each time switches the mode in the following sequence: “Off”...
Page 35: Input Signal
Input Signal Input Level For setting the dynamic range (gradation) of the video input. If the dynamic range is not appropriate, the bright areas become overexposed, and the dark areas become underexposed. Setting Description 16-235 (Video) Select this setting if you are inputting video signals (dynamic range: 16 - 235). 0-255 (PC) Select this setting if you are inputting PC signals (dynamic range: 0 - 255).
Page 36 1ch Display Setting For configuring the display method during 1-ch Input Mode. (“Possible Input Signals and Projected Image”P. 18) Setting Description 4 Tiles Displays four input signals side by side. Scaling Magnifies and displays the input signal twice its size horizontally and vertically. Forced 60Hz Display Setting This function is for setting the display screen when the device protection function is activated.
Page 37: Installation
Installation Lens Control Focus / Zoom / Shift For adjusting the lens according to the projection position Press the [LENS CONTROL] button, and use the [JKH I] keys to adjust Focus, Zoom (screen size), and Shift (screen position) Focus Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence: “Focus”...
Page 38: Lock
Adjustment Pattern Displayed on the Adjustment Screen Focus 2.35:1 1.33:1 (4:3) 1.78:1 (16:9) Adjust the display according to the viewing angle of the respective aspect ratios for the adjustment patterns. * This is not displayed when “Image Pattern” is configured to “Off”. Lock For setting whether to lock or unlock the lens.
Page 39: Pixel Adjust
Pixel Adjust For correcting the phase shifting between each RGB color by adjusting the pixel. Adjust For setting the adjustment feature to On or Off. Adjust Area Setting Description Whole Adjusts the entire image. Zone Enables fine adjustment of each area by dividing the screen evenly into 10 vertical and horizontal zones.
Page 40 Whole Adjust (Pixel) Operation Procedure For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image. A Set “Adjust Area” to “Whole” B Select “Adjust Color” and “Adjust Pattern Color” C Select “Adjust (Pixel)”, and press the [OK] button The Adjustment mode is activated, and the selected adjustment pattern and Adjustment (Pixel) window are displayed.
Page 41 Whole Adjust (Fine) Operation Procedure For making general adjustments on the misalignment of the entire screen using “Adjust (Pixel)”, followed by making fine adjustments. A Set “Adjust Area” to “Whole” B Select “Adjust Color” and “Adjust Pattern Color” C Select Adjust (Fine), and press the [OK] button The Adjustment mode is activated, and the selected adjustment pattern and Fine window are displayed.
Page 42 Zone Adjust Operation Procedure For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using “Adjust (Pixel)” and “Adjust (Fine)”. The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made. A Set “Adjust Area”...
Page 43: Image Shift
Image Shift This is a function to mechanically shift the “Red” and “Blue” elements. It is mainly used to align the display positions of the “Green” image at the center of the screen and the “Red”/“Blue” image. MEMO If the display position of the “Red”/“Blue” image does not move, turn off the power to the main unit, turn it on again, and then perform the same adjustment.
Page 44: Adjust
Adjust Image Shift Operation Procedure A Select “Adjust Color” B Select “Adjust”, and press the [OK] button The Adjustment mode is activated, and the selected adjustment pattern and Adjustment window are displayed. Adjustment Pattern Image Shift HIDE INFO. Adjustment Window Adj.Col.
Page 45: Mask
Mask For hiding the peripheral area of the image with a mask (black strip). Setting Description Not masked. Hides the ranges specified in “Top”, “Bottom”, “Left” and “Right” by masking (with black strips). Mask: black strip around the periphery “Top” / “Bottom” / “Left” / “Right” For specifying the ranges to hide by masking (with black strips).
Page 46: Display Setup
Display Setup Back Color For setting the color of the background to “Blue” or “Black” when there is no signal input. Menu Position For setting the display position of the menu. Signal Display For setting the display of the input information to “On” or “Off”. Setting Description Not displayed.
Page 47: Function
Function Sync Out For selecting the type of signal to output from Sync Out. Setting Description Input (Positive) Outputs a signal that is synchronized with the vertical sync signal of the input video signal. Input (Negative) Outputs a signal with reversed polarity that is synchronized with the vertical sync signal of the input video signal.
Page 48: Network Password
Network Password For configuring the password during LAN connection. Characters that are usable include alphabets (upper or lower case), numeric characters, and symbols. Enter a password with at least 8 characters and not more than 10 characters. Input Cursor Selection Cursor After entry is complete, select “OK”...
Page 49: Remote Code
Remote Code For changing the remote control code. Setting Description Change the remote control code from “B” to “A”. Change the remote control code from “A” to “B”. You need to configure the remote control according to the settings of this unit. On the remote control unit, press the [MENU] and [BACK] buttons at the same time for three seconds or longer to switch the code.
Page 50: Information
Information Page 1 Setting Description Input Displays the selected Input Mode. Status Displays the image output status. DP1-1 to DP2-4 Displays the information of signal input to each of the terminals. Light Source Time Displays the laser light source time. Soft Ver.
Page 51: Maintenance
If dirt has entered this product or if you need to purchase the filter, please consult the authorized dealer from which this product is purchased or any nearby JVC servicing center. Type D...
Page 52 Type C Filter Filter Cover Sponge Filter Cover Type D Filter Cover Sponge Filter Cover Loosen the screws and remove the Restore the sponge and filter. cover Mount the filter and sponge to the projector using the reverse removed procedure. The filter is located at the front, top, left and right side of the projector unit.
Page 53: Routine Servicing
Routine Servicing Clean dirt on the cabinet Do this with a soft cloth. In case of heavy soiling, soak a cloth in neutral detergent diluted with water, wring dry and wipe, followed by wiping again using a dry cloth. Pay attention to the following to prevent the cabinet from deteriorating in condition, getting damaged, or the paint from coming off.
Page 54: Troubleshooting
Troubleshooting Before sending the unit to your authorized dealer for repair, please check the following points. The following symptoms are not malfunctions. You do not need to worry about the following symptoms if there is no abnormality on the screen. A part of the top or front surface of the unit is hot.
Page 55 Video image looks unnatural Colors are unnatural Check Action Refer to Is the color space of the input signal The color may turn out unnatural when the input signal is P. 35 correctly set? different from that in the projector setting. Set the “Color Space”...
Page 56: When The Following Messages Appear
Noise is heard Check Action Refer to Is the exhaust vent blocked? Check the installation condition of the projector. P. 13 Is the unit used near a heater or air- When the surrounding temperature of the projector is high, conditioner? the fan revolution speed increases to protect the projector unit, hence a louder operating sound.
Page 57: External Control
External Control It is possible to control this unit by connecting it to a PC using an RS-232C cross cable (D-sub 9-pin). The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control commands to be sent to the projector.
Page 58: Command Format
Command Format The command between this unit and the computer consists of “Header”, “Unit ID”, “Command”, “Data” and “End”. Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte) Header This binary code indicates the start of communication. Binary Code Type Description...
Page 59: Remote Control Code
Remote Control Code Binary code is sent during communication. The following applies to the case when the remote control code is “A”. In the case of “B”, add “36” to the beginning of the code. Remote Control Button Binary Code Name STANDBY 37 33 30 36...
Page 60: Communications Example
Communications Example This section shows the communication examples of RS-232C. Operating command Type Command Description Connection check PC " This unit: 21 89 01 00 00 0A Connection check This unit " PC: 06 89 01 00 00 0A Power (On) PC "...
Page 61: Specifications
Specifications Product Name D-ILA Projector Model Name DLA-VS8000 Display Panel/Size D-ILA device *1, *2 1.21” 8K D-ILA (7680 x 4320 pixels) x 3 Light Source Blu-Escent Laser / Phosphor Screen Size Refer to P. 17. Brightness 5000 lm Projection Distance Refer to P.
Page 62 Optional Items Projection Lens GL-MS8016SZ 1.6:1 to 1.9:1 8K Resolution Zoom Lens Replacement filter/sponge (for front left side) F1K-0173-00 (Filter) J3K-0134-00 (Sponge) Replacement sponge (for top surface) J3K-0159-00 Replacement sponge (for front right/right/left side) J3K-0072-00 LC43030-002A Design and specifications are subject to change without prior notice. Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized in order to aid comprehension.
Page 63: Indicator Display On The Main Unit
Indicator Display on the Main Unit Operation mode display Displays using the different colors and solid/blinking light of the indicator on the projector unit. Indicator Description STANDBY/ON LIGHT WARNING Light On In standby state (Red) Light On When LD block is starting up (Green) Blinking In the Cool-down mode...
Page 64 Warning display You can tell the details of a warning from the (repeated) displays of the “WARNING” and “LIGHT” indicators. The “STANDBY/ON” indicator will light up or appear blinking according to the operation mode of the projector unit. (Please refer to ““Operation mode display”P. 63”.) The Warning mode is activated once the message is displayed.
Page 65: Dimensional Outline Drawing
Dimensional Outline Drawing (Unit: mm) Top Surface Side Exhaust air Exhaust air Intake air M10 hole (x 12) Tightening depth: 10 to 20 Front Rear Surface Exhaust air 43.5 Intake air CAUTION Using screws with dimensions other than those specified in the above diagram may cause the projector to drop or malfunction.
Page 66: Index
Index A Accessories............9 H H Frequency (Information)........50 Adjust (Fine) ............39 H/V Total (Information)..........50 Adjust (Image Shift)..........44 Hide Mode............49 Adjust (Pixel Adjust)..........39 High Altitude Mode..........45 Adjust (Pixel) ............39 Image Pattern............37 Adjust Area (Pixel Adjust)........39 Indicator Display...........
Page 67 R Remote Code............49 REMOTE Terminal..........25 Resolution (Information)........50 Routine Servicing..........53 RS-232C Terminal........11, 25, 57 S Safety Precautions..........2 Screen Size and Projection Distance....17 SERVICE Terminal..........11 Sharpness.............31 Shift...............37 Signal Display............46 Soft Ver. (Information)...........50 Software Update........... 49 Specifications............61 Sponge..............62 Status (Information)..........
