Rangemaster Aquanomic Aquadisc 4 Monobloc TAD4-AN Quick Start Manual

TAD4 – AN - Aquanomic Aquadisc 4 Monobloc
FLOW RESTRICTED (3.8 L/M +0/-20%)
5 Year warranty Terms and Conditions:
In the unlikely event that you should experience any defect in the materials or workmanship of your new Leisure mixer within FIVE years of purchase, the
purchaser's sole remedy shall be the replacement (at the manufacturer's discretion) of all or any part of the product that is defective. All working parts and
valves are guaranteed for a period of TWO years from purchase. Decorative surface finishes and O-rings are guaranteed for ONE year from the date of
purchase provided that our advice concerning care has been observed and no scouring agents have been used.
This is provided that the mixer has been used for normal domestic purposes in the UK or Eire and that the care, installation and maintenance instructions
have been observed. The warranty extends to the original purchaser only. You should retain a copy of your dated invoice as proof of purchase to validate any
claims under this guarantee.
Marks, scuffs and scratches caused by improper installation or accidental damage are not covered by this guarantee. Neither are shade variations or any
damage or defect caused by incorrect installation or abuse of the fitting.
As we are continuously improving and developing our range of products, finishes & colours, in the event of a valid claim, we may not be able to provide an
identical replacement for the defective product throughout the guarantee period. Where an identical product is no longer available, we will supply the nearest
equivalent from our then current product range. In assessing your claim, we must be given the opportunity to inspect the product as installed prior to removal.
Any product returns must be packaged as received and complete.
No other warranties, express or implied, are made, including merchantability or fitness for a particular purpose. Under no circumstances shall the
manufacturer be liable for any loss or damage arising from the purchase, use or inability to use this product, or for any special, indirect, incidental or
consequential damages. No liability is accepted for consequential damage to other household fixtures, fittings or furnishings arising from this claim, even if
attached to the product. No installer, dealer, agent or employee of Aga Rangemaster Limited has the authority to modify the obligations or limitations of this
warranty.
Care Instructions for your Kitchen Sink Mixer:
To maintain the appearance of this tap, ensure that it is regularly cleaned only using a clean, soft damp cloth. A solution of warm water and a mild liquid
detergent may be used where necessary, and then the fitting rinsed thoroughly and wiped dry. Any other cleaning action will invalidate your warranty.
Abrasive cleaners, scouring cleaners and acidic cleaners must not be used under any circumstances. Avoid contact with all solvents (including chlorinated
solvents, ketones or acetones as these may result in surface deterioration or etching). Also avoid contact with any harsh household chemicals such as oven
cleaners, drain cleaners, rust removers, paint strippers, bar keepers friend or Brasso.
Where the tap has a removable aerator on the spout exit it can be removed and cleaned periodically to maintain optimum flow performance.
:
About this product
This product is installed with neoperl™ water saving technology; this
will reduce your water consumption to a maximum of 3.8 litres a
minute (mixed) regardless of the incoming water pressure, this is
designed to reduce the amount of water wasted during everyday use
and meets current UK building guidelines.
Should the flow regulators become blocked with debris or require
maintenance they can be cleaned then replaced.
The Graph shows typical water consumption in litres per minute at
various input pressure ranges.
Important Technical Data:
Min / Max operating pressure: 1 / 4 bar*
Tap hole size and centres: ∅35mm
Flow characteristics: Single flow, 3.8l/min @ 3bar mixed
This product is either WRAS approved or manufactured in accordance with recognised European standards. Please ensure that your Kitchen mixer is fitted in
accordance with Local Water Byelaws. Where hot and cold water mix within the mixertap (single flow), then suitable non-return (check) valves should be
installed to the hot and cold supplies to prevent backflow (can be factory fitted – see parts list).
Hot and cold supply pressures should be as closely balanced as possible for best results. Supply pipes should maintain the maximum diameter until
immediately before the fitting. Always use the tail pipes provided. The differential between the hot and cold water supply temperatures should be sufficient to
allow correct mixing function.
These installation guidelines have been prepared for your direction and you must exercise due care at all times. We do not accept responsibility for problems
that may occur through improper installation. Whilst assembling the tap take care not to accidentally loosen any factory fixed assemblies.
This tap has been 100% assembly tested; therefore you may expect a small residual amount of water to remain in the tap when delivered. Any water marks
can be removed using the above care advice.

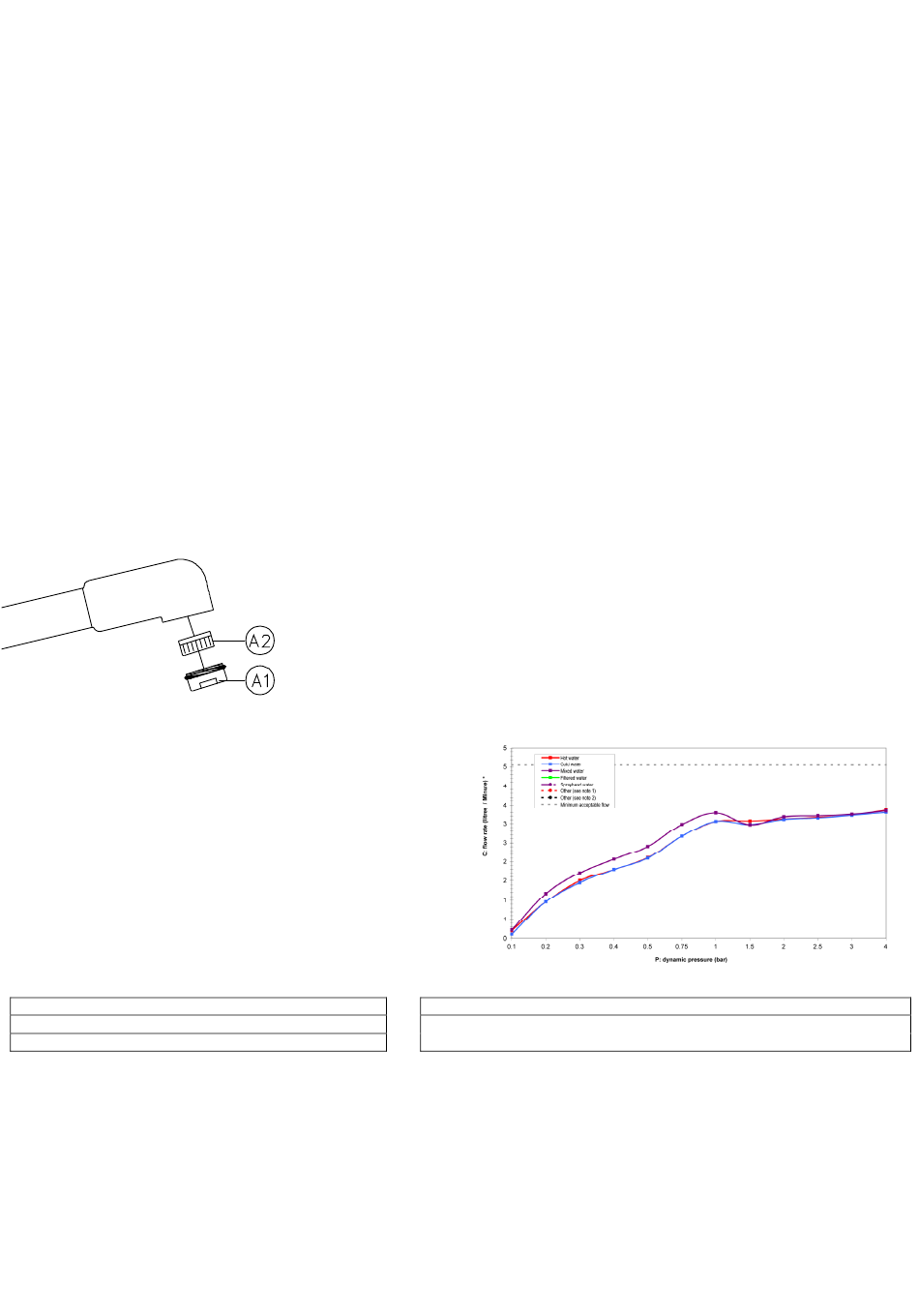

1. Holding the spout using an adjustable or 22mm spanner unscrew the aerator
case (A1)
2. Push the aerator (A2) out from the centre of the aerator case (A1)
3. If the aerator (A2) is blocked due to Limescale deposits, we recommend soaking
the aerator in vinegar to loosen the scale, and an old toothbrush to clear away any
debris.
4. Reassemble the tap in the reverse order making sure that aerator case (A1) is
screwed on in 2-3 complete rotations.
Recommended / Maximum hot water temperature: 46 / 70°C*
*If these temperatures or pressures are exceeded, even for short periods, damage can result.
In these instances a thermostatic mixing or pressure reducing valve should be installed.
PLEASE LEAVE THESE INSTRUCTIONS
FOR YOUR CUSTOMER.
FOR REPLACEMENT PARTS &
TECHNICAL ADVISE CALL 0870 789 5108
