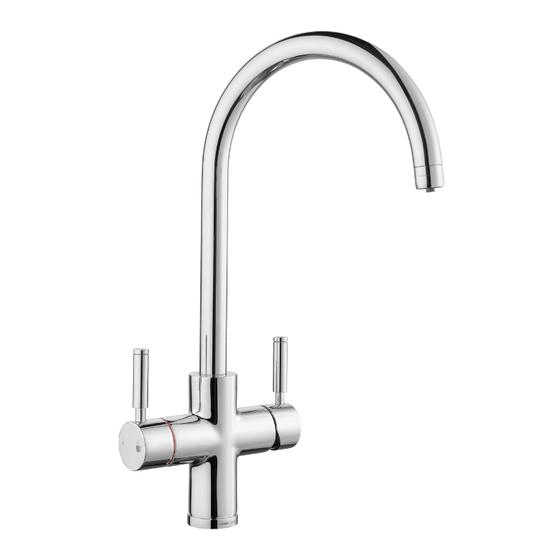

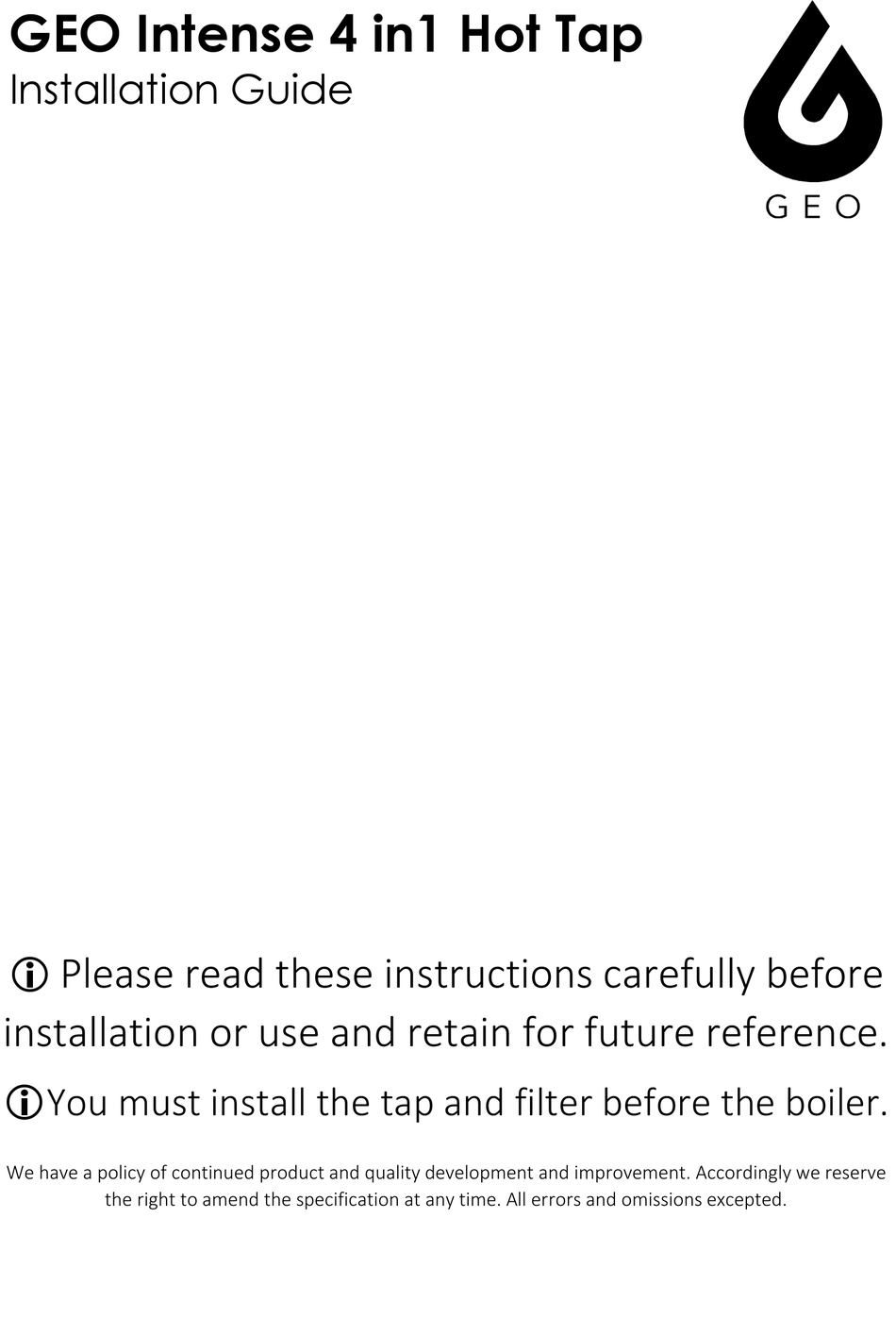

GEO Intense 4 in1 Hot Tap
Installation Guide
Please read these instructions carefully before
installation or use and retain for future reference.
You must install the tap and filter before the boiler.
We have a policy of continued product and quality development and improvement. Accordingly we reserve
the right to amend the specification at any time. All errors and omissions excepted.
Advertisement
Table of Contents
Related Manuals for Rangemaster GEO Intense GEO4TIDCM
Summary of Contents for Rangemaster GEO Intense GEO4TIDCM
- Page 1 GEO Intense 4 in1 Hot Tap Installation Guide Please read these instructions carefully before installation or use and retain for future reference. You must install the tap and filter before the boiler. We have a policy of continued product and quality development and improvement. Accordingly we reserve the right to amend the specification at any time.
-
Page 2: Using The Product
⚠ A technical or safety An information point or tip for A service, maintenance consideration or warning of installation or usage. or care consideration. hazardous situation with regard to life and property. Using the product Using the product Using the product Using the product Thank you for choosing this product. - Page 3 Your tap can dispense Your tap can dispense 4 4 4 4 types of water: Your tap can dispense Your tap can dispense types of water: types of water: types of water: Cold (filtered) water – – – – This is delivered when the left side handle is rotated backwards up to a maximum Cold (filtered) water Cold (filtered) water Cold (filtered) water...
- Page 4 In the unlikely event that you should experience any defect in the materials or workmanship of your new Rangemaster 4 in 1 hot mixer tap within FIVE years of purchase, the purchaser’s sole remedy shall be the replacement (at the manufacturer’s discretion) of all or any part of the product that is defective. All working parts and valves are guaranteed for a period of FIVE years from purchase.
-
Page 5: Tap Installation
Tap installation Tap installation Tap installation Tap installation Important Technical Data Important Technical Data Important Technical Data Important Technical Data Minimum operating pressure (hot): 0.5 bar Minimum operating pressure (cold): 1.5 bar Maximum operating pressure: 5.5 bar* Maximum domestic hot water temperature: 70°C* Flow characteristics: Domestic Hot, Cold &... -
Page 6: Installation Preparation
Installation Preparation Installation Preparation Installation Preparation Installation Preparation ⚠ You must install the mixertap and filter before the boiler. ⚠ Before installing the new mixer it is essential that you thoroughly flush through the supply pipes flush through the supply pipes in order flush through the supply pipes flush through the supply pipes to remove any remaining solder, swarf or impurities from your system. -
Page 7: Parts And Contents
Parts and Contents Parts and Contents Parts and Contents Parts and Contents Key Description Description Description Description Mixer tap Base plinth Base plinth seal Sink or worktop (max. 50mm) White triangular plate (for use with steel sinks only) Lower gasket Metal horseshoe Fixing stud Fixing nut... - Page 8 Install the tap: Install the tap: Install the tap: Install the tap: This diagram shows the view of the base of the tap (A1) with the 98°C water handle to the left of the body. ⚠ YOU MUST CAREFULLY ACKNOWLEDGE THE INLETS AND OUTLETS AS SHOWN...
-
Page 9: Install The Filter
15. Arrange and install the domestic cold in isolation valve (G1) and a stub of 15mm pipe (G4) using 15mm compression nut (G3) and olive (G2). 16. Fix the ½” x ½” x 3/4” isolating tee valve (G7) to the cold water feed pipe (G4) using 15mm compression nut (G5) and olive (G6). - Page 10 Meadow Lane, Long Eaton, Nottingham, NG10 2GD, England Trade Enquiries: +44 (0)115 946 4000 Consumer Enquiries: +44 (0)1926 457628 E-mail: consumers@agarangemaster.co.uk www.rangemaster.co.uk 06/2022 Please leave these instructions for your customer...
