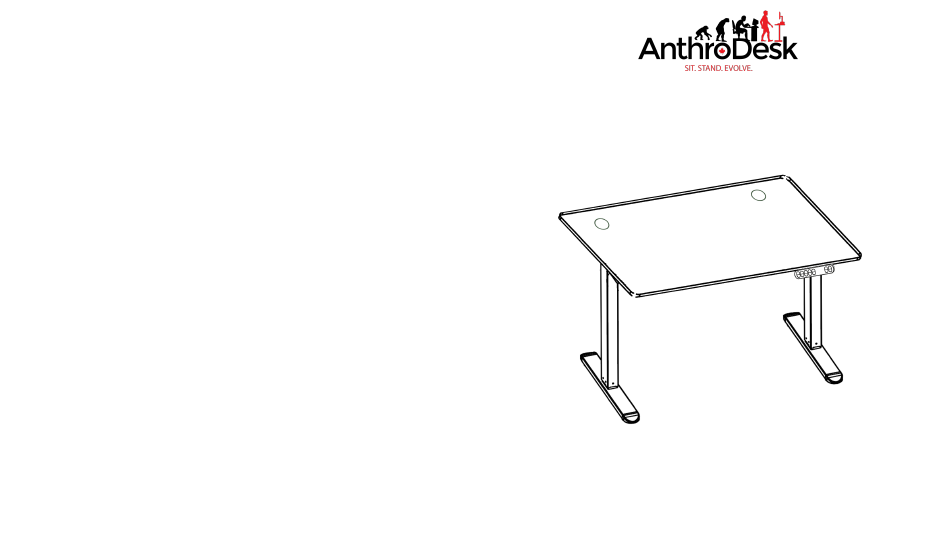

- Page 1 ASSEMBLY INSTRUCTIONS MODEL: AD-A5 PROGRAMMABLE SINGLE MOTOR STANDING DESK WITH TABLETOP Please take the time to carefully read this manual before using the product. If you need customer support, please call us at 1-800-267-1783 www.AnthroDesk.ca [Canada] www.AnthroDesk.com [USA]...
- Page 2 #1 - First, attach the motor to the hexagonal rod, insert the hexagonal rod into the leg, then secure Parts and Tool List the motor on the leg with 2 M4*35 screws, and finally, insert the other end of the hexagonal rod into the other leg, and fix the beam to the legs using 12 M6*10 screws.
-
Page 3: Product Specifications
#3 - Attach the brackets to the legs using 4 M6*10 screws, then fit the 8 rubber cushions to the #5 - Connect the leg cables and power cords to the handset. brackets. 4mm Allen Key Rubber Cushion *8 M6*10 Screw *4 #4 - Fix the desk frame to the tabletop with 8 ST4.8*16 screws, then fix the handset below the desktop with 2 ST3.5*16 screws. -
Page 4: Handset Interface
Handset Interface Upper and Lower Limit Settings The system supports setting height limits for the desk. Here's how to do it: ● Press and hold both the ∧ and ∨ buttons simultaneously for 5 seconds at the desired height until you hear a buzzer. -
Page 5: Error Code
Short-Circuit inside the Motor 2. Change the motor. Error Code Locked-Rotor inside the Motor 2. Initialize the frame and reset the operation. The Motor 2 runs in the wrong direction. Change the motor wire or Hall wire. Error Code Description Action Weight on Motor 2 is over the limit.
