Configuration Chart; Installation Instructions - Altronix TROVE PLUS T1M1CK1V Installation Manual

Altronix Trove Plus kits are pre-wired, pre-assembled and consist of Trove1M1 enclosure/backplane with factory installed Altronix power supply/
charger and sub-assemblies, wire harnesses and finger duct.
220VAC
60Hz
Altronix Input
Model Current
Number (A)
T1M1CK1V
T1M1CK2V
T1M1CK3V
2.1
T1M1CK1DV
T1M1CK2DV
T1M1CK3DV
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the
wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws; level and secure.
Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners.
Place the enclosure's upper keyholes over the three upper screws. Install the three lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch
bracket onto the edge of the enclosure approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access
Control Panel input or the appropriate UL Listed reporting device. To activate alarm signal open the door of the enclosure.
4. Mount Mercury modules to backplane(s), refer to page 3.
5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow4NBV
and corresponding Installation Guides for PDS8(CB), VR6, and ACM4(CB)
for further installation instructions.
Hardware:
Snap On Spacer |
- 2 -

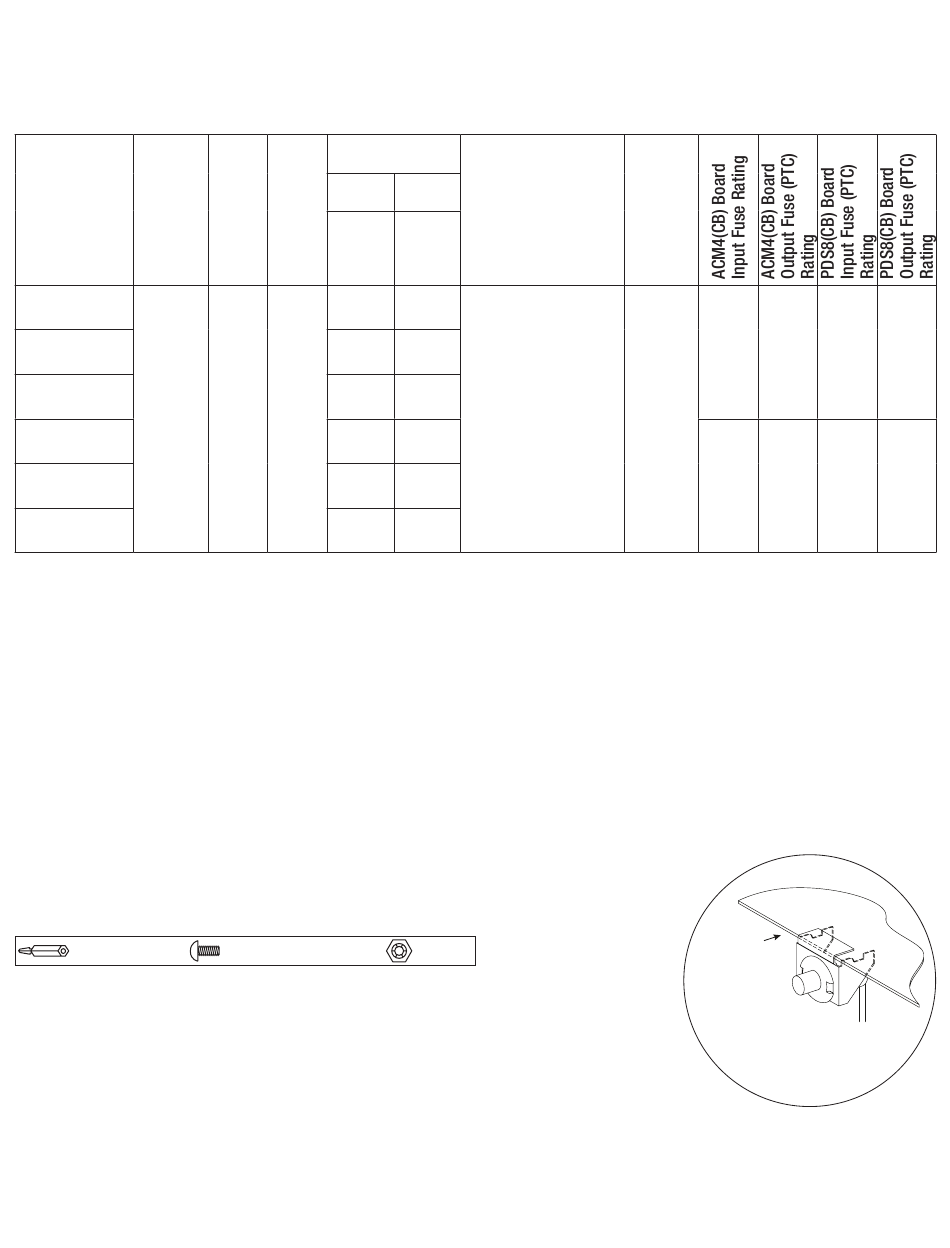

Configuration Chart:

Nominal DC
Output Voltage
Power Power
Supply Supply
[DC]
Board Board
Input Battery Output
Fuse Fuse Range
Rating Rating (VDC)
20.17-
26.4
20.17-
26.4
20.17-
26.4
5A/ 10A/
250V 32V
20.17-
26.4
20.17-
26.4
20.17-
26.4

Installation Instructions:

5/16" Pan Head Screw |
Overview:
Maximum Supply
Current for Main
Outputs on Power
[Aux]
Supply board and
Output ACM4(CB) Access
Range Power Controller's
(VDC) outputs
20.28-
26.4
20.28-
26.4
20.28-
26.4
24VDC @ 3.8A
20.28-
26.4
20.28-
26.4
20.28-
26.4
Lock Nut
Fail-
Safe/
Fail-
Secure
Outputs
10A/ 3A/
32V 250V
4
10A/
2.5A
32V
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
T1M1CKV Series Installation Guide
10A/ 3A/
250V 250V
9A 2.5A
Fig. 1
