Configuration Chart; Installation Instructions - Altronix TROVE T1KE34V Installation Manual

Altronix Trove Kisi kits are pre-assembled and consist of Trove1LU1 or Trove2LU2 enclosure/backplane with factory installed Altronix power
supply/charger(s) and sub-assemblies. Trove Kisi kits also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a
single enclosure.
220VAC
60Hz
Altronix Input
Model Current
Number (A)
T1KE34V
T1KE34DV
T1KE38V
1.5
T1KE38DV
T2KE3316V
T2KE3316DV
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having juris-
diction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners
and screws in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the two/three upper
screws, level and secure. Mark the position of the lower two/three holes. Remove the enclosure. Drill the lower holes and
install the two/three fasteners. Place the enclosure's upper keyholes over the two/three upper screws. Install the two/three lower
screws and make sure to tighten all screws refer to pages 6-7.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent)
in desired location, opposite hinge. Slide the tamper switch bracket onto the edge
of the enclosure, approximately 2" from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the
appropriate UL Listed reporting device. To activate alarm signal
open the door of the enclosure.
4. Mount Kisi Pro Controllers to TLU1 or TLU2 backplane, refer to pages 3-5.
5. Refer to the XBV Power Supply/Charger Installation Guide for AL600XB220
and corresponding Sub-Assembly Installation Guides for ACM4(CB) and ACM8(CB) for
further installation instructions.
Hardware:
Spacer |
- 2 -

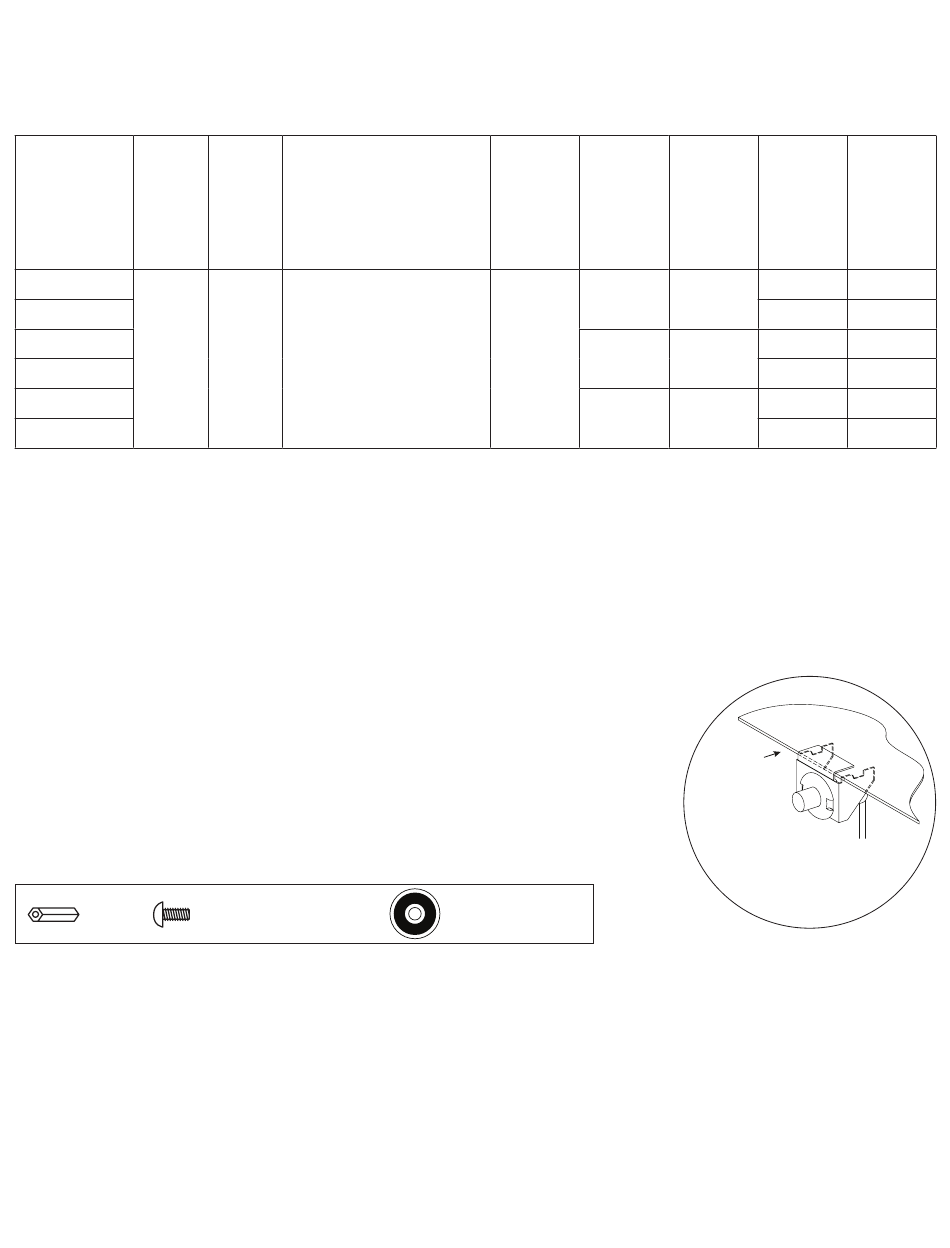

Configuration Chart:

Power
Supply Maximum Supply
Board Current for Main Output on
Input Power Supply board(s)
Fuse and ACM4/ACM8 Access
Rating Power Controllers' outputs
5A/
24VDC @ 5.7A
250V

Installation Instructions:

5/16" Pan Head Screw |
Overview:
Nominal
DC
Output
Voltage Fail-Safe/
Range Fail-Secure
(VDC) Outputs
20.17-26.4
Mounting Magnet
ACM4(CB)/ ACM4/
ACM8(CB) ACM8
Board Board
Input Output
Fuse Fuse
Rating Rating
3A/32V
4 10A/32V
3A/32V
8 10A/32V
3.5A/250V
16 10A/250V
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
Trove KE XBV Kits Installation Guide
ACM4CB/
ACM8CB
Board
Output
PTC
Rating
–
2.5A
–
–
2.5A
–
–
2.5A
–
Fig. 1
