Elite Security Products espire ES1CLV Quick Start Manual

Quick Start Guide
General Information
Read the instructions before commencing installation. The user is to retain the instructions for future reference.
• Espire Alarms have been designed and developed for fixed residential installation and use.
• The Alarm is required to be permanently wired to a 230V mains electrical supply by a qualified electrician in accordance with the local wiring
regulations.
• Before commencing electrical work, ensure the mains isolator on the consumer unit is in the 'OFF' position to prevent electric shock and ensure the
Alarm is complete with the Lock-in Wiring Base.
• After installation the Alarm is to be tested weekly: Press and hold the Test/ Hush button for at least 10 seconds to ensure the Alarm sounds and all
interconnected Alarms activate.
Product Description
• ES1CLV Carbon Monoxide Alarm Powered by
Mains with a 10 Year Lithium Battery
• ES1CHLV Carbon Monoxide and Heat
Multi-Sensor Alarm Powered by Mains with
a 10 Year Lithium Battery
The Alarm is supplied with a Lock-In Wiring Base.
The RF-Link (ES1RF) module is supplied with the
Alarm or available separately.
The Alarm's backup battery is sealed
and non-replaceable.

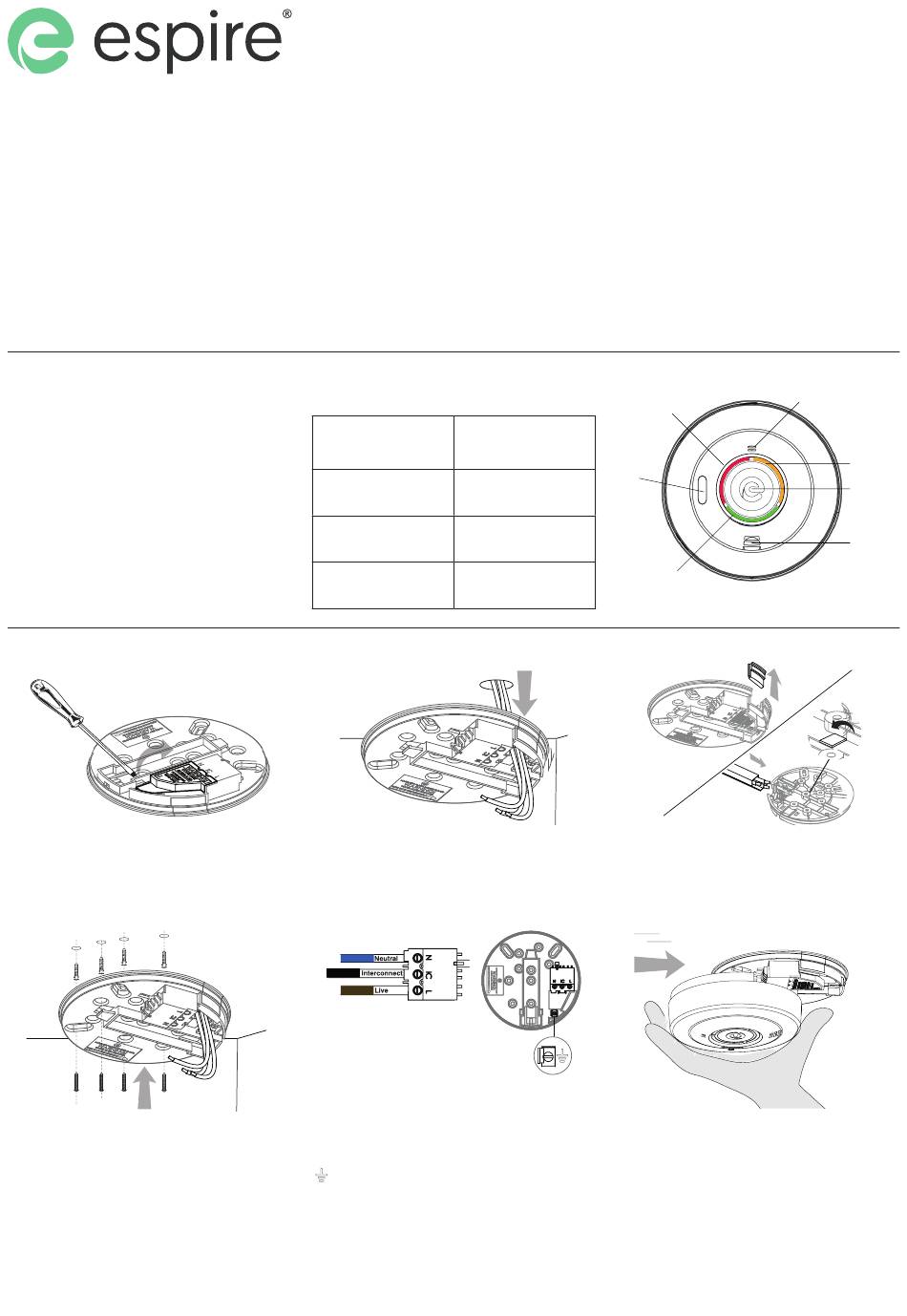

Alarm Connections
Step 1.
On the Lock-in Wiring Base remove the cover
for the wiring terminal block using a
flathead screwdriver.
Step 4.
Using the base, mark the desired mounting holes,
drill and re-align the base, screwing into place.
Multiple mounting holes are available for
retro fit installations.
Step 7.
After the wiring connections have been made and checked, connect the mains power supply. The CO Alarm will initiate a 3 minute self-test on
power up. After this is complete check that the Green power status LED is permanently illuminated.
Alarm Powered by Mains Supply with a Sealed 10 Year
Lithium Battery with Optional RF-Link Module
The CO Alarms response times are designed to
act in accordance with BS EN 50291-1:2018;
Parts per Million
Time until Alarm
(PPM) of CO
50 60-90 minutes
100 10-40 minutes
Must alarm in less
300
than 3 minutes
Step 2.
Lead recessed wires through the rear entry
of the base.
Earth Terminal
Step 5.
Connect the wires to the terminal block;
L: Live (Brown), N: Neutral (Blue),
IC: Interconnect (UK/Black) or (ROI/White)
: Earth Terminal (Green & Yellow)
The Alarm is not required to be Earthed, the Earth
Terminal has been provided for safe termination.
ES1CLV, ES1CHLV
Red Alarm LED
Sensor
Tunnel
Green Power LED
Step 3.
For surface wiring; slide the trunking clip away
from the base.
Step 6.
Replace the terminal block cover as shown
in Step 1, and carefully line up the Alarm to
the base and slide on until secured and a
'click' is heard.
Light Sensor
Amber
Fault LED
Test/Hush
Button
Sounder
1
