Elite Security Products espire ES1SRV Full Manual

UK Full Manual
General Information
Read the instructions before commencing installation. The user is to retain the instructions for future reference.
• Espire Alarms have been designed and developed for fixed residential installation and use.
• The Alarm is required to be permanently wired to a 230V mains electrical supply by a qualified electrician in accordance with the local wiring regulations.
• Before commencing electrical work, ensure the mains isolator on the consumer unit is in the 'OFF' position to prevent electric shock and ensure the
Alarm is complete with the Lock-in Wiring Base.
• After installation the Alarm is to be tested weekly: Press and hold the Test/ Hush button for at least 10 seconds to ensure the Alarm sounds and all
interconnected Alarms activate.
Product Description
• ES1SRV Optical Smoke Alarm Powered by Mains with a Replaceable 9V Battery
• ES1HRV Heat Alarm Powered by Mains with a Replaceable 9V Battery
The Alarm is supplied with a Lock-In Wiring Base.
The Alarm's backup battery is 9V replaceable.
9V Battery Replacement Types;
DURACELL MN1604, RayMax 6LR61,
Gold Peak 1604A, PEAK POWER 1604E
Recommended

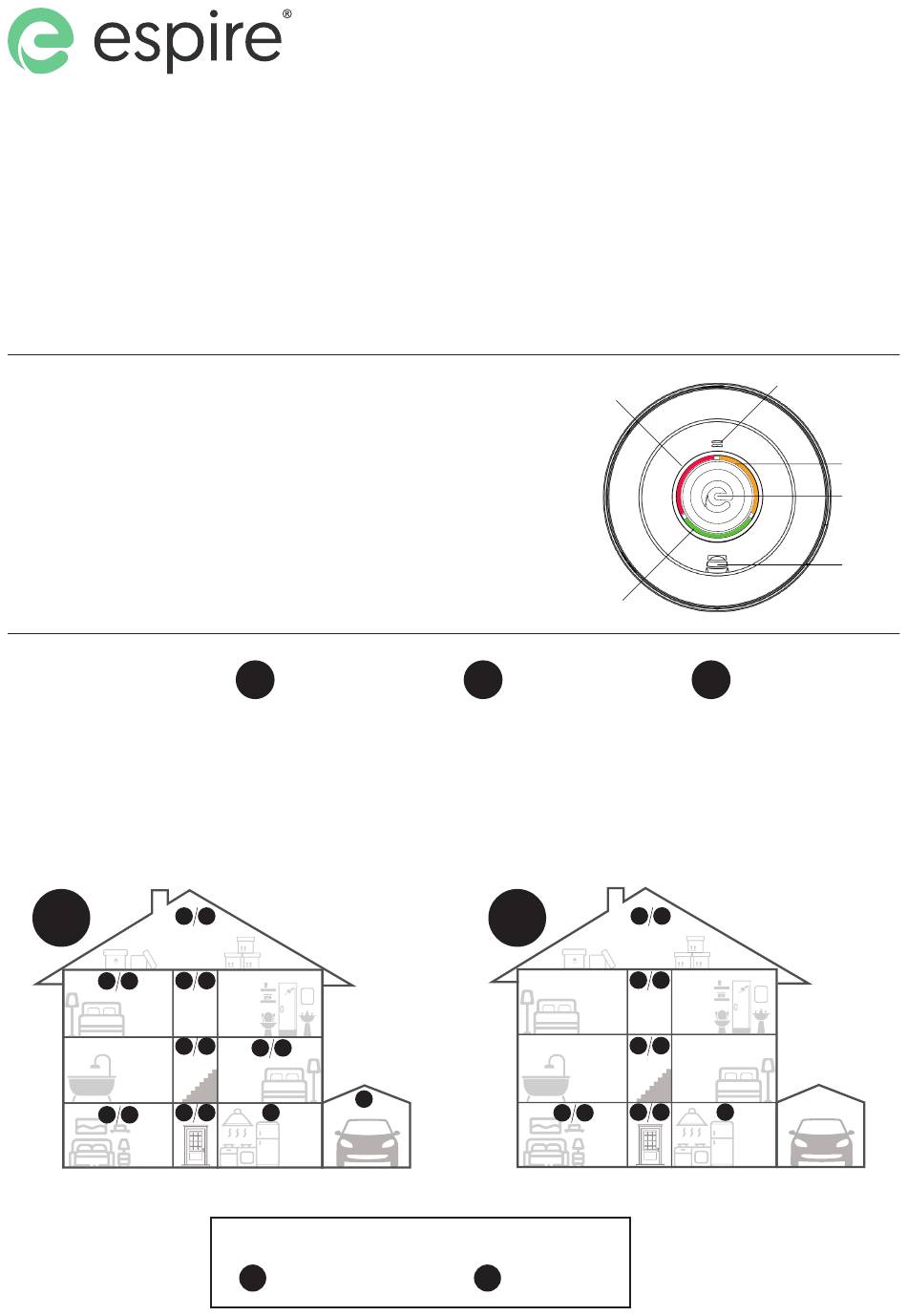

Alarm Location
Alarm locations are to follow
guidance provided in British
Standard; BS 5839-6:2019.
A Fire Risk Assessment is used to
determine the Grade and Category
of system required;
LD1
S M M
Bedro Bedroom
Hallway
Bathroom
S M
Living Room
Multi Story Dwelling Example
Multi Storey Dwelling Example
OPTIMUM
LD1
PROTECTION
Appropriate where occupants
are likely to be vulnerable (e.g
the elderly.) In addition to LD3
recommendations, Alarms are
installed in all circulation areas
and all rooms or areas in which
fire might start. Excludes toilets,
bathrooms or shower rooms.
S M
Loft
S M
Shower
S M
S M
Bedroom
Stairs
S M H
Kitchen Garage
Diagram Key
S ES1SRV Optical Smoke
Alarm Powered by Mains Supply with a
BASIC
LD2
PROTECTION
In addition to the recommendations
for an LD3 system, additional
Alarms are installed in certain
rooms determined by the risk
assessment. For example; a heat
Alarm is installed in each kitchen, or
a smoke Alarm installed in the living
room. Excludes toilets, bathrooms
or shower rooms.
LD2
H
H
ES1HRV Heat
Replaceable 9V Battery
Red Alarm LED
Green Power LED
LD3
Alarms installed in all hallways,
stairways and circulation areas that
form part of the escape routes.
All Alarms are to be interconnected.
S M
Loft
S M
Bedroom
Shower
Hallway
S M
Bathroom
Bedroom
Stairs
S M
S M
Living Room
Kitchen
Multi Story Dwelling Example
Multi Storey Dwelling Example
ES1SRV, ES1HRV
Light Sensor
Amber
Fault LED
Test/Hush
Button
Sounder
MINIMUM
PROTECTION
H
Garage
1
