MV Heating Airo 5 Operation Manual
Lcd 7-day timer
Hide thumbs
Also See for Airo 5:
- Operation manual (22 pages) ,
- Workshop manual (19 pages) ,
- Instruction manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for MV Heating Airo 5
Summary of Contents for MV Heating Airo 5

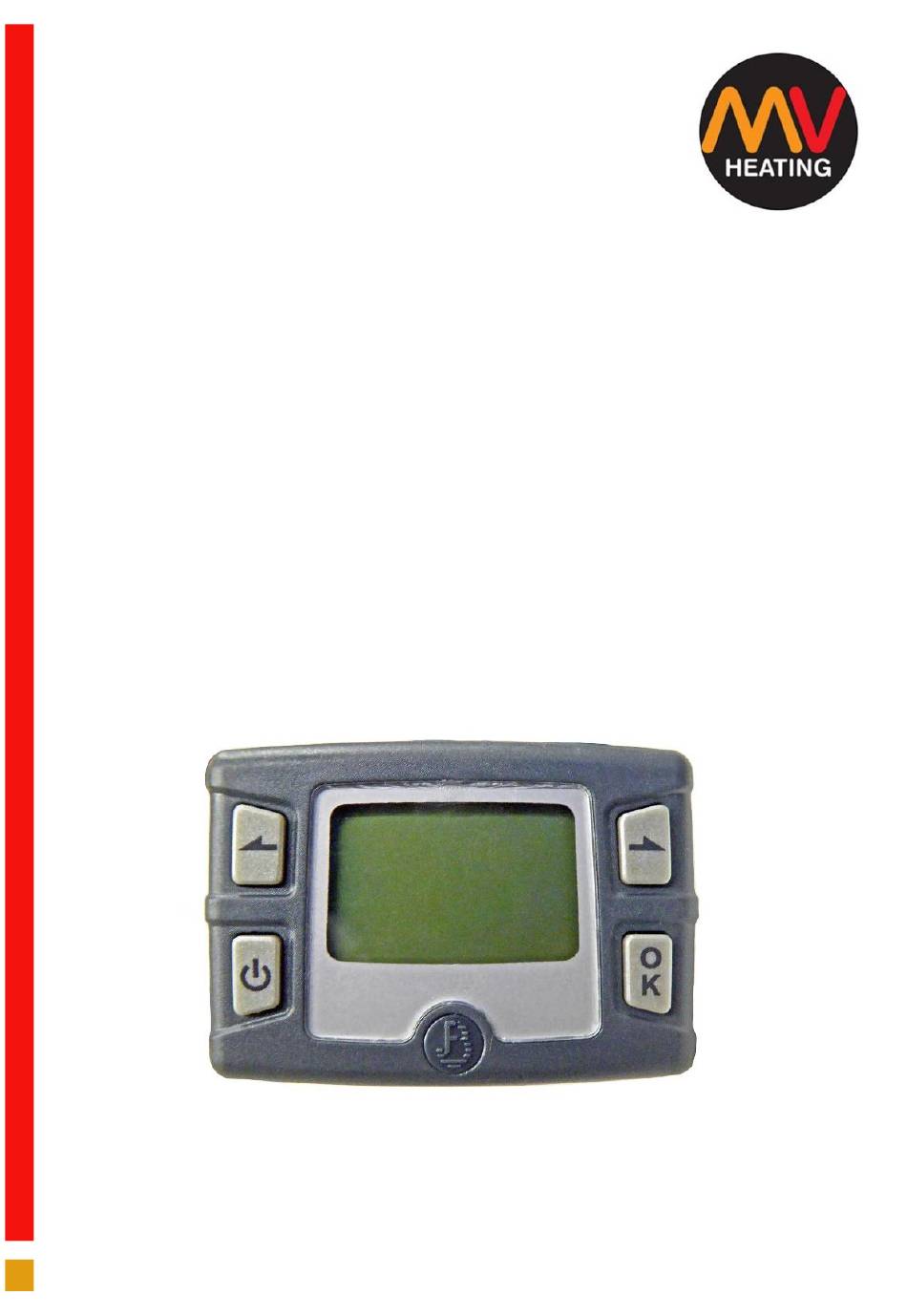

- Page 1 MV LCD 7-Day Timer LPINE PERATION ANUAL MV Heating UK Ltd Unit 6 1.00 Second Avenue Business Park Millbrook Southampton SO15 0LP MV Heating UK LTD +44 (0)2380 522345...
-
Page 2: Table Of Contents
Changing Temperature Scale ................10 Information Mode .................... 11 Connecting to Bluetooth .................. 12 Installation Fuel Priming Feature ..............13 Error Code ......................14 Resetting to Factory Settings ................15 Fault Codes ....................... 16 Notes ........................ 17 MV Heating UK Ltd... -
Page 3: Key
B. Heating times (1-3) 3. Right Arrow Button C. Heating Symbol 4. Power/Back Button D. Fan Symbol 5. OK Button E. Info Symbol 6. Fixing Screw Hole F. Program/Timer Symbol G. Clock Symbol H. Digital Clock Face MV Heating UK Ltd... -
Page 4: Installing The Control
To remove it, push down the tab on the male plug, and separate the two. 4 Way Plug (Female) 4 Way Plug (Male) - From Main Wiring Harness - From Control Unit Brown Brown Blue/White Blue/White Yellow Yellow MV Heating UK Ltd... -
Page 5: Changing Language
6. Press any of the arrow keys until the screen reads ‘02:on’ 7. Keep pressing ok until back to the P1 menu screen 8. Press the power button to return. The language will now be set to English. MV Heating UK Ltd... -
Page 6: Changing The Date And Time
5. Once completed, the control will return to the home screen (displaying the correct time) NOTE: If the LCD digital timer is disconnected from the loom, the date and time will need to be re- entered. MV Heating UK Ltd... -
Page 7: Manual On/Off
OK. The fan will then automatically switch on and its speed can be adjusted from high to low (07 to 01 respectively) using the arrow keys. To switch it off, press the power button. MV Heating UK Ltd... -
Page 8: Switching To Thermostatic Mode
3. To adjust back to the manual on/off (variable output mode), simply press and hold the ok button again until the display changes to variable output. 4. To switch the heater off, press the power button to return to the home screen. MV Heating UK Ltd... -
Page 9: Pre-Setting Heating Times
800 minutes. Run time can be selected from 50- 990. Press OK to confirm. 5. Select the hour you wish the heater to start at by using the arrow keys and then pressing OK to confirm. MV Heating UK Ltd... - Page 10 NOTE: To turn any of the preset times off without altering the set times, simply go through to step 3 and select ‘OFF’ using the arrow keys. Then repeatedly press OK until you have returned to the home screen. MV Heating UK Ltd...
-
Page 11: Changing Temperature Scale
3. Press ‘OK’ 3 times until ‘01:oF’ appears on the screen. 4. Press the left arrow key to change the display to ‘01:on’ – Meaning Fahrenheit 01:0F display is on. 5. Press the power button to return to the home screen. o1:on 18:30 MV Heating UK Ltd... -
Page 12: Information Mode
3. Use the arrow keys to view the atmospheric pressure to the nearest 100hPa. L 15 4. Press the power button to return to the home screen Note: Temperature reading may take P 98 several minutes to regulate. 18:30 MV Heating UK Ltd... -
Page 13: Connecting To Bluetooth
7. When the controller is connected to a smart phone 61el - ‘blEt’ will appear on the screen and will remain until the controller has been disconnected. The controller cannot be used when the app is being operated. 61el - MV Heating UK Ltd... -
Page 14: Installation Fuel Priming Feature
90 seconds. Use the arrow keys to alter the pumping time. 5. It will automatically shut down after 90 18:30 seconds or press the power, or ‘OK’ button to stop pumping at any time and return to the home screen. MV Heating UK Ltd... -
Page 15: Error Code
(buttons not activating) the system will need to be hard reset by either removing the main fuse from the loom (12V – 20A, 24V – 15A), or disconnecting the unit from the power supply (battery). 18:30 MV Heating UK Ltd... -
Page 16: Resetting To Factory Settings
3. Press the right arrow key 3 times until ‘- -‘ followed by a number appears and press OK. 4. The control should now be reset to its original factory settings. --18 一 二 三 18:30 四 五 六 日 MV Heating UK Ltd... -
Page 17: Fault Codes
Hydro only - blower relay open circuit Hydro only - blower relay short circuit Preheating temperature broken circuit Preheating temperature short circuit Crystal oscillator in ECU broken Fault information storage failure Maintenance reminder Earthing Issue Constant Flash Connection Issue Traffic Light MV Heating UK Ltd... -
Page 18: Notes
+44 (0)23 8052 2345 Notes ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. MV Heating UK Ltd...
