MV Heating Airo 5 Operation Manual
Lcd 7-day timer
Hide thumbs
Also See for Airo 5:
- Operation manual (22 pages) ,
- Workshop manual (19 pages) ,
- Instruction manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for MV Heating Airo 5
Summary of Contents for MV Heating Airo 5

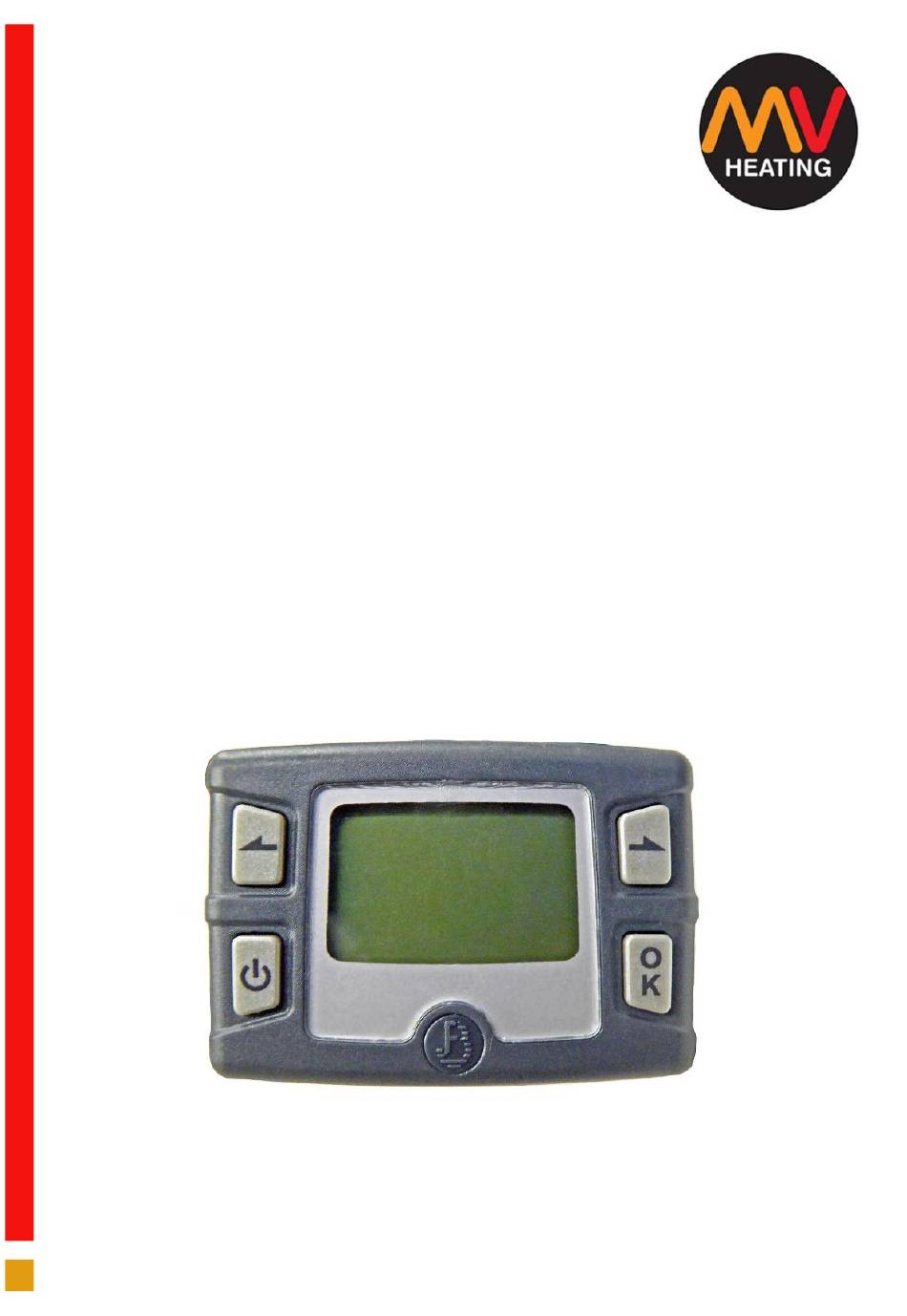

- Page 1 MV LCD 7-Day Timer – H LATEAU YDRO ERSION PERATION ANUAL MV Heating UK Ltd Unit 6 1.00 Second Avenue Business Park Millbrook Southampton SO15 0LP MV Heating UK LTD +44 (0)2380 522345...
-
Page 2: Table Of Contents
Changing the Date and Time ................4 Manual On/Off ....................5 Pre-setting Heating Times .................. 6 Installation Fuel Priming Feature ............... 8 Checking Error Codes ..................9 Resetting Digital Controller to Factory Settings ..........10 Fault Codes ....................... 11 Notes ........................ 12 MV Heating UK Ltd... -
Page 3: Lcd Digital 7-Day Timer
4. Power/Back Button d. Clock Symbol 5. OK Button e. Clock Face 6. Fixing Screw Hole Functions: • 7 day timer, programmable up to 3 times daily • Simple on/off countdown timer • Initial fuel priming feature MV Heating UK Ltd... -
Page 4: Changing Language
6. Press any of the arrow keys until the screen reads ‘02:on’ P 1 P 1 7. Keep pressing ok until back to the P1 menu screen 8. Press the power button to return. The language will now be set to English. 18:30 18:30 18:30 MV Heating UK Ltd... -
Page 5: Changing The Date And Time
5. Once completed, the control will return to the home screen (displaying the correct time) NOTE: If the LCD digital timer is 12:05 12:05 12:05 disconnected from the loom, the date and time will need to be re-entered. 12:05 12:05 12:05 MV Heating UK Ltd... -
Page 6: Manual On/Off
The maximum heating time is 99 minutes. 4. To switch the heater off, simply press 18:30 18:30 18:30 the power button to return to the home screen. MV Heating UK Ltd... -
Page 7: Pre-Setting Heating Times
Run time can be selected from 1-99 minutes by pressing or holding the arrow keys. Press OK to confirm. 5. Select the hour you wish the heater to start at by using the arrow keys and then pressing OK to 06:30 confirm. MV Heating UK Ltd... - Page 8 NOTE: To turn any of the preset times off without altering the set times, simply go through to step 3 and select ‘OFF’ using the arrow keys. Then repeatedly press OK until you have returned to the home screen. MV Heating UK Ltd...
-
Page 9: Installation Fuel Priming Feature
4. The fuel pump will begin to rapidly pump the fuel. 5. It will automatically shut down after three minutes or press any key to stop 18:30 18:30 18:30 the pumping at any time, and return to the home screen. MV Heating UK Ltd... -
Page 10: Checking Error Codes
3. Press OK to delete all errors or power to go back. Once the display Ie 00 Ie 00 Ie 00 reads ‘IE00’ then no errors have been found. 4. Press OK or power to return. 18:30 18:30 MV Heating UK Ltd... -
Page 11: Resetting Digital Controller To Factory Settings
P 1 P 1 button. 4. The control should now be reset to its original factory settings. 0 1 0 1 一 一 二 二 三 三 18:30 18:30 四 四 五 五 六 六 日 日 MV Heating UK Ltd... -
Page 12: Fault Codes
Hydro only - blower relay open circuit Hydro only - blower relay short circuit Preheating temperature broken circuit Preheating temperature short circuit Crystal oscillator in ECU broken Fault information storage failure Maintenance reminder Earthing Issue Constant Flash Connection Issue Traffic Light MV Heating UK Ltd... -
Page 13: Notes
+44 (0)23 8052 2345 Notes ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. MV Heating UK Ltd...
