Summary of Contents for MV Heating Airo 5

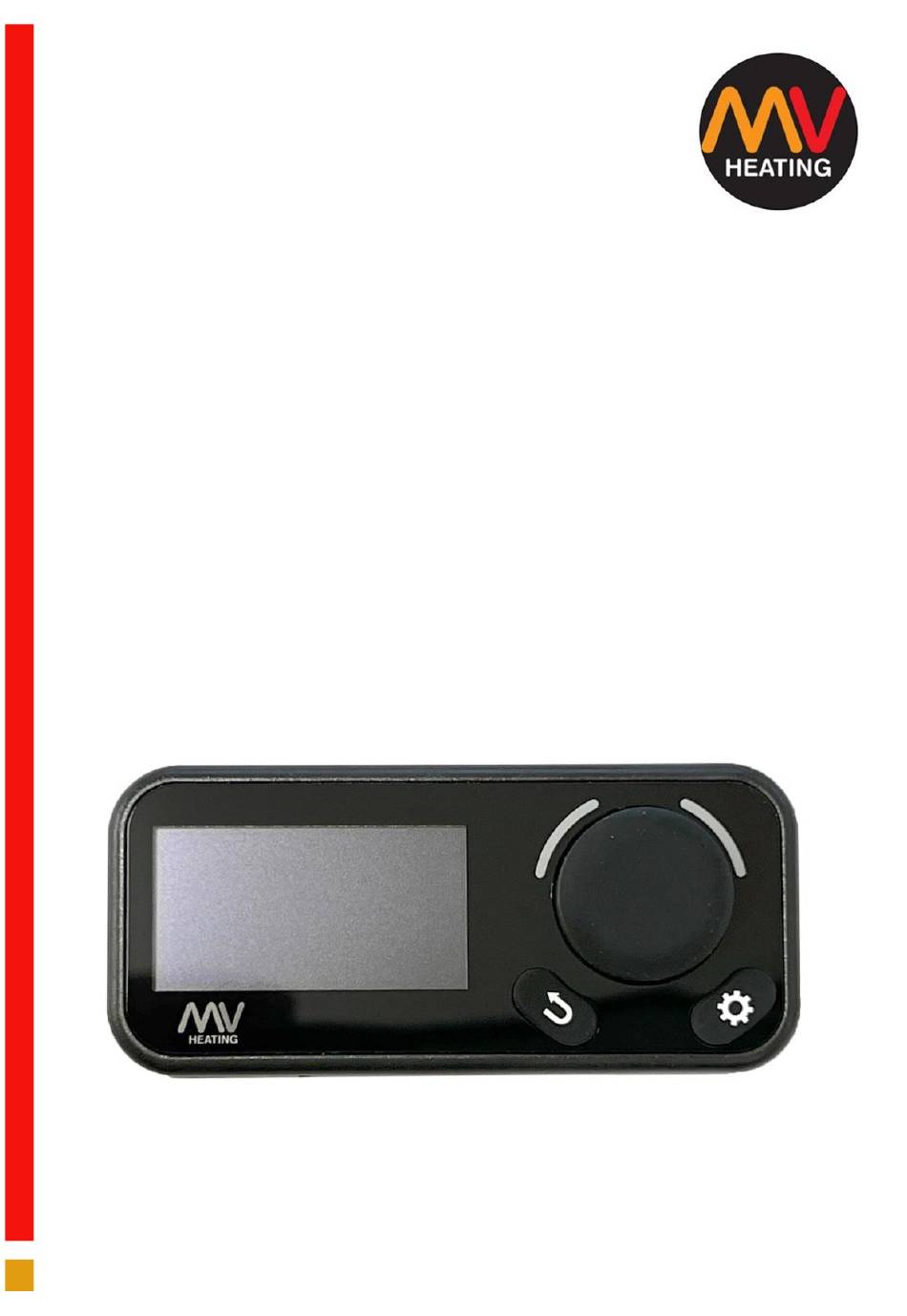

- Page 1 MV OLED Control – H LPINE YDRO ERSION PERATION ANUAL 1.00 MV Heating UK Ltd Unit 6 Second Avenue Business Park Millbrook Southampton SO15 0LP MV Heating UK LTD +44 (0)2380 522345...
-
Page 2: Table Of Contents
Countdown Timer ..................11 Factory Reset ....................12 LED Indictor ...................... 13 Faults ........................ 14 No Connection ..................... 14 Disconnect ....................14 Fault ......................15 Updates ......................15 Installation ....................... 16 Location ......................16 Installation Steps ..................17 MV Heating UK Ltd... - Page 3 +44 (0)23 8052 2345 Fault Codes ....................... 18 Notes ........................ 20 MV Heating UK Ltd...
-
Page 4: Oled Display
+44 (0)23 8052 2345 OLED Display HEATING Figure 1 1. OLED Display 2. LED Indicators 3. Rotary Knob and Confirm Button 4. Settings Button 5. Return/Back Button MV Heating UK Ltd... -
Page 5: Operation
Once this has completed, the panel will enter the normal control (home) interface. After 30 seconds of inactivity the display will turn blank. This is the standby mode. Press any button to wake the display up. MV Heating UK Ltd... -
Page 6: Setting Water Temperature
Changing Heater Output 23°C 23°C 23°C In the home screen use the rotary dial to change the output of the heater from 1-6. The higher the output the quicker the heater will reach the set water temperature. MV Heating UK Ltd... -
Page 7: Power On
(± 1°C). The heater will then shut down until the water temperature has fallen by approximately 10°C, before starting up again. The heater will continue to do this until it has been manually switched off. MV Heating UK Ltd... -
Page 8: Settings
Chinese Press the return button to go back at any time. English NOTE: The language setting has a memory function and will not change when power has been cut off. MV Heating UK Ltd... -
Page 9: Bluetooth
Press the return button to go back at any time. When turned on, the Bluetooth symbol will appear on the top left on he display. NOTE: The Bluetooth setting has a memory function and will not change when power has been cut off. MV Heating UK Ltd... -
Page 10: Sound
Select between ON and OFF by using the rotary knob and pressing to confirm. Press the return button to go back at any time. NOTE: The sound setting has a memory function and will not change when power has been cut off. MV Heating UK Ltd... -
Page 11: Information Display
OLED display. Heater Run Time Press the return button to go back at any time. Run time : 10h10m Ignition times : 55 NOTE: The monitoring mode is for professionals. MV Heating UK Ltd... -
Page 12: Countdown Timer
After the minutes have been confirmed, the End of Countdown countdown clock will begin, and the heater will start after the clock has run down. 12: 49: 59 Press the return button to go back at any time. MV Heating UK Ltd... -
Page 13: Factory Reset
Press the return button to go back at any time. The control will then briefly go out before going Factory Reset ? through its initializing sequence again. NOTE: Factory reset restores the language, Bluetooth, sound, and other related settings. MV Heating UK Ltd... -
Page 14: Led Indictor
Blue Lights Flashing: When the control panel is disconnected. HEATING Green Lights: When the heater is running. HEATING Green Lights Flashing: Fault condition - The heater has detected a fault. HEATING Red Lights: When the heater is shutting down. HEATING MV Heating UK Ltd... -
Page 15: Faults
(heater Disconnect is running, fuel priming etc.) the display will read ‘Disconnect’. If disconnect continues, check the communication cable is installed correctly, and has not become damaged. MV Heating UK Ltd... -
Page 16: Fault
If connected via Bluetooth to the MyBluee app, any updates to the OLED display or the heater will turn the display into an update state. UPDATE The display will automatically exit the update state when the update is complete. MV Heating UK Ltd... -
Page 17: Installation
The control switch should be installed where it is easy to read and locate. The control panel opening size is 16mm X 22mm, as shown below. Top Cover Back Cover 40mm Centre Distance 16mm 22mm Figure 2 Self-Tapping Screws MV Heating UK Ltd... -
Page 18: Installation Steps
Do not make any tensile stress on the control switch (communication) wires. If any of the cables are pulled out during operation, it will cause the heater to interrupt and fail, and may even damage the heater and/or controller. MV Heating UK Ltd... -
Page 19: Fault Codes
33 Fan rotation speed is too low B) Check if the fan wheel is rubbing C) Change Controller 38 Matrix heater broken circuit A) Check matrix heater motor 39 Matrix heater short circuit Fault codes continue overleaf. MV Heating UK Ltd... - Page 20 A) Check overheat sensor (power off protection switch) Overheat sensor broken circuit B) Change overheat sensor 72 Overheat sensor short circuit C) Change controller 99 Invalid fault information A) Change controller D3 Maintenance Reminder A) Clean carbon build-up inside the heater MV Heating UK Ltd...
- Page 21 +44 (0)23 8052 2345 Notes ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. ……………………………………………………………………………………………………………………….. MV Heating UK Ltd...
- Page 22 +44 (0)23 8052 2345 MV Heating UK Ltd...
