Summary of Contents for FlorCraft 709-3905

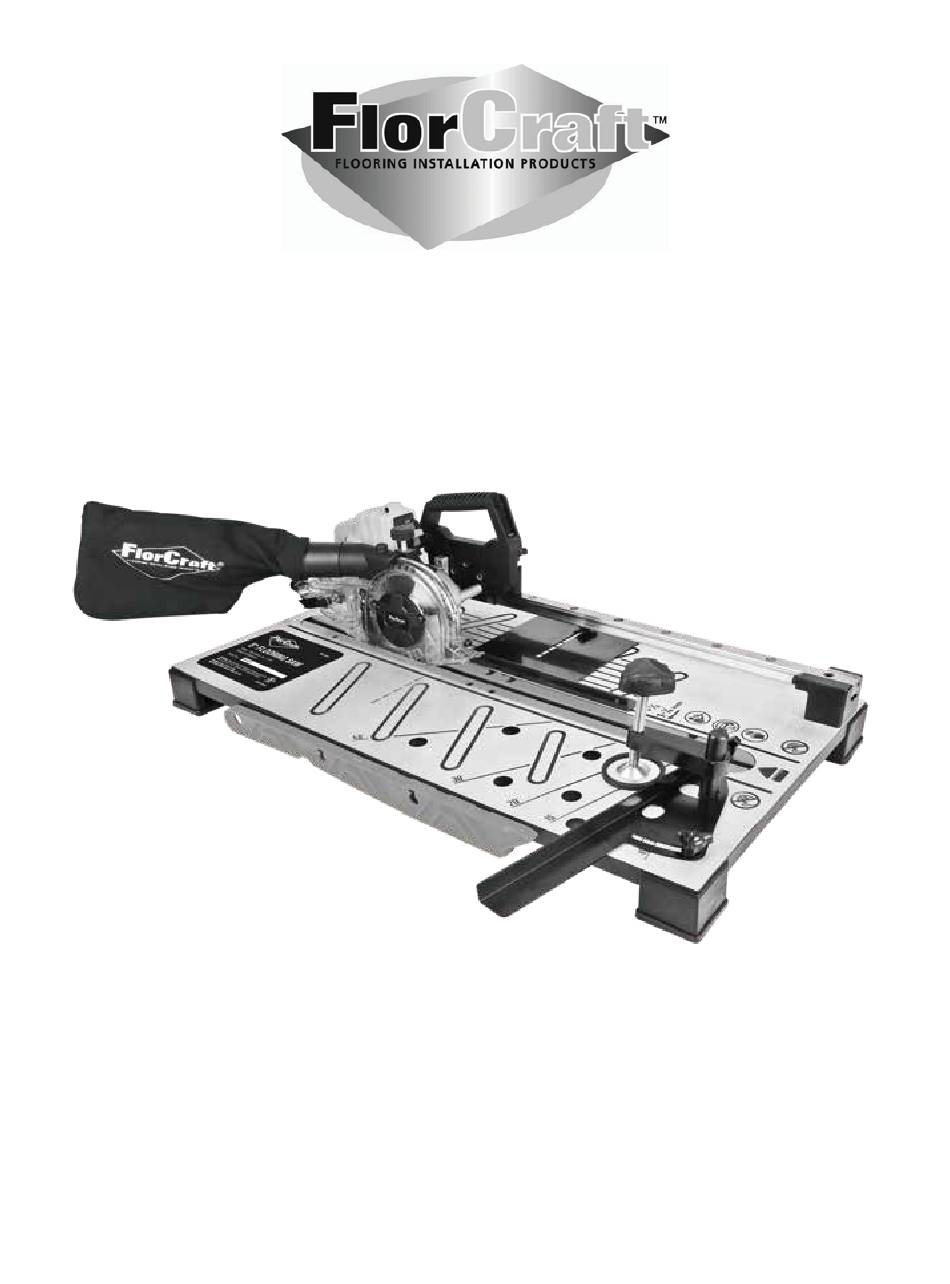

- Page 1 7 Amps Laminate/Floor Saw SKU: 709-3905 Operation and Safety Instructions...
- Page 2 Additional Safety Rules for Saws……………………………………………… Know your Product…………………………….………………………………. Operating Instructions…………………………………………………………. Maintenance……………………………………………………………………. Exploded View and Parts List………………………………………………….. Warranty……………………………………………………………………….. Specifications 7 Amps Laminate/Floor Saw SKU: 709-3905 Voltage: 120V, 60Hz Power Input: 7 Amps No Load Speed: 11,000 rpm Blade: 5" Dia. x 3/32" Carbide Tip Bore: 5/8"...
-
Page 3: General Safety Rules
General Safety Rules WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. 1. KEEP GUARDS IN PLACE AND IN WORKING ORDER. 2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on. -
Page 4: Electrical Safety
17. USE RECOMMENDED ACCESSORIES. Consult the owner’s manual for recommended accessories. The use of improper accessories may cause risk of injury to persons. 18. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted. -
Page 5: Additional Safety Rules For Saws
Additional Safety Rules for Saws 1. Replace table insert when worn. 2. Keep hands out of path of saw blade. 3. Do not operate saw without guards in place. 4. Do not perform any operation freehand. 5. Never reach around saw blade. 6. - Page 6 22. Always ensure that your work is on the table. Never use the tool to cut pieces that are not on the table. 23. Do not place your hands in awkward positions where one or both may slip suddenly and touch the saw blade.
-
Page 7: Extension Cords
Always use the saw blade guard and riving knife for every operation, including through sawing. Through sawing operations are those in which the blade cuts completely through the workpiece when ripping or crosscutting. Always hold the work firmly against the miter gauge or rip fence. Never perform any operation “free hand”. -
Page 8: Know Your Product
Know Your Product 1. Table top 12. Slide lock knob 2. Table insert 13. Mounted push stick 3. ON/OFF switch with lock 14. Spindle lock 4. Saw blade guard 15. Blade access cover 5. Saw blade 16. Blade cut indicator 6. -
Page 9: Miter Cut
Operating Instructions ACCESSORIES The product is supplied with the following accessories as standard Rip fence Workpiece clamp Cross cut fence Hex key Push stick Dust bag UNPACKING Check immediately whether all parts and accessories are included. If anything is missing,broken,or if there is a fault with the tool,contact Customer Service at 1-866-915-8626. -
Page 10: Attaching The Feet
ATTACHING THE PULL HANDLE Locate handle onto body. Fix handle using cross head screws supplied. Tighten until firmly secure. ATTACHING THE FEET Locate the plastic feet on each corner of the base. Fix feet using the screw, spring and flat washers supplied. Tighten screw until feet are firmly secure. - Page 11 USING THE SAW FOR RIP CUTTING Lock the motor unit into the rip lock position using the slide lock knob. Adjust the rip fence by sliding it to the correct depth and lock in position using the lock knob. Ensure that the anti kickback device is lowered, or in the active position.
-
Page 12: Cutting A Narrow Workpiece
CUTTING A NARROW WORKPIECE Longitudinal cuts in a workpiece smaller than 5" in width must always be made with the help of the push stick. WARNING: Worn or damaged push sticks must be replaced immediately. CUTTING AN EXTREMELY NARROW WORKPIECE Longitudinal cuts in an extremely narrow workpiece with a width of 1-1/4"... -
Page 13: Changing The Blade
CHANGING THE BLADE WARNING: Switch the tool OFF and unplug from the power source. Wear work gloves. Lock the unit with the lock pin into the runner. Undo the screw on the blade access cover and rotate it out of the way, then hold in the spindle lock. Using the hex key supplied, turn the blade bolt in an anti- clockwise direction. -
Page 14: Maintenance
Maintenance WARNING: Always ensure that the tool is switched off and the plug is removed from the power point before making any adjustments or maintenance procedures. Store the tool, instruction manual and accessories in a secure place. In this way you will always have all the information. -
Page 15: Exploded View And Parts List
Exploded View and Parts List Item Description Qty Item Description Qty Item Description Bearing set Screw Washer Bearing Coat Bracket left Armature Washer Rubber pole Roller key Special crew Slideway Check ring Bearing Sliding Block Screw Gear Bracket right Bearing Screw Locking pin cap Pinion... -
Page 17: Warranty
Warranty FLORCRAFT™ (FLOOR SAW) WARRANTY 1-YEAR LIMITED WARRANTY: This brand power tool carries a 1-Year Limited Warranty to the original purchaser. FLORCRAFT™ If the tool fails within one (1) year from the date of purchase, simply bring this tool with your original sales receipt back to your nearest retail store.
