RZ07
Smart Lock

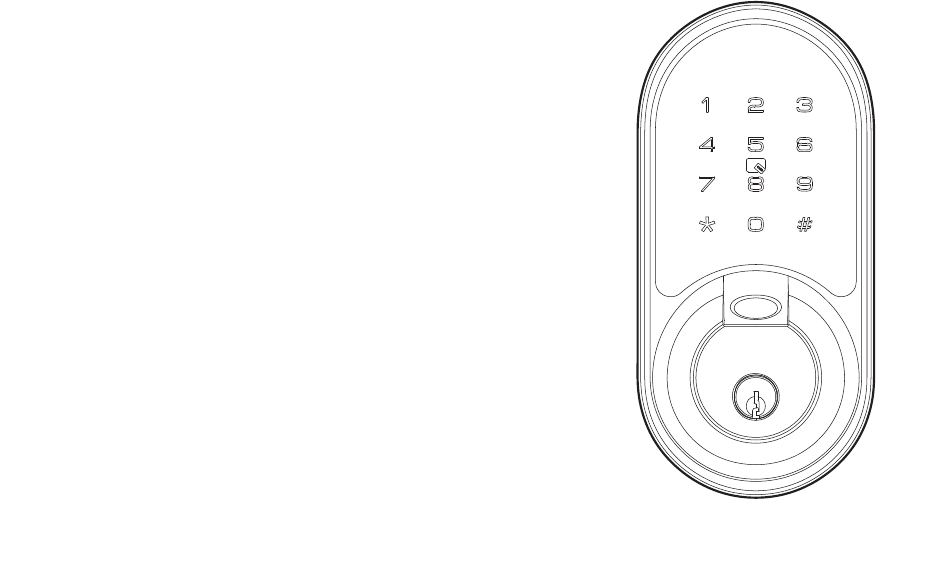

User Guide / Installation Instruction
Thank you for purchasing our products. Please review this manual thoroughly before operating your device.
All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RZ07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TEEHO RZ07

Summary of Contents for TEEHO RZ07

  • Page 1 RZ07 Smart Lock User Guide / Installation Instruction Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
  • Page 2 User Guide Installation Instruction At a Glance STEP 1: Prepare the door and check dimensions How to Lock / Unlock STEP 2: Install the latch and strike Definitions STEP 3: Install exterior assembly P 10 STEP 4: Install interior assembly P 12 Factory default settings P 13...

  • Page 3: Interior Assembly

    USER GUIDE At a Glance Exterior Assembly Interior Assembly Indicator Lights Battery Cover IC card Touch Area Keypad Reset Button Fingerprint Privacy Button Thumb Turn Keyhole...
  • Page 4 How to Lock / Unlock UNLOCK the door from inside UNLOCK the door from outside Rotate the thumb turn to Unlock position. Right handed door Left handed door LOCK the door from outside LOCK the door from inside Auto Lock Mode Manual Mode In Auto Lock mode, Rotate the thumb turn to Lock Position.
  • Page 5 Definitions • Master Code • Wrong Entry Limit The default master code is 123456. After 5 times unsuccessful attempts at entering an invalid password, the device will shut down for 2 minutes. Before pairing your lock in DDLock App, please do not change the default master code.

  • Page 6: Installation Instruction

    INSTALLATION INSTRUCTION Battery Interior Cover (H) Assembly (G) Mounting plate (E) Exterior Assembly Screw (F) Exterior Assembly Interior Assembly Screws (L) Mounting plate Screws (K) Latch (C) Strike (D) Backup key (A) Latch Screws Strike Screws...

  • Page 7: Parts List

    Parts List Exterior Assembly x1 Backup Key x2 Latch x1 Strike x1 Mounting Plate x1 Exterior Assembly Interior Assembly x1 Strike Screws x2 Screw (Optional) Latch Screws x2 Battery Cover x1 Interior Assembly Drive-In Collar (Optional) IC card x2 Mounting plate Screws x2 Screws x3 Reset Tool x1 If any parts are missing or damaged, please contact Customer Support.
  • Page 8 STEP Prepare the door and check dimensions 2-3/8" or 2-3/4" (60 or 70mm) Measure to Measure to confirm confirm that the that the backset is hole in the door is either 2-3/8" or 1-1/2" or 2-1/8" 1-1/2’’ or 2-1/8" 2-3/4" (60 or 70mm) (38mm or 54mm) 1"...
  • Page 9 STEP Install the latch and strike Determine backset and adjust the latch No adjustment is required. Proceed to next step. 180° Slotted hole is 90° NOT centered. Hold the latch in front of the door hole, Rotate and pull the with the latch face flush against the latch as shown to door edge.
  • Page 10 Use a screwdriver to test if deadbolt works smoothly. IMPORTANT: Install strike on the door frame. Make sure the hole in door frame is drilled a minimum of 1" (25mm) deep.

  • Page 11: Install Exterior Assembly

    STEP Install exterior assembly Measure the diameter of the hole in the door. IMPORTANT: 1-1/2" (38mm) Before installation, make sure the latch is fully retracted (in the unlocked position) 1-1/2" or 2-1/8" Remove the spacer (38 or 54mm) Unlocked Locked 2-1/8"...

  • Page 12: Install Interior Assembly

    STEP Install interior assembly Determine the door is right handed or left handed. Notes: If the direction of the slide switch is set incorrectly, it Push the battery cover out in can be reset in DDLock App. the direction as illustrated. Door hinge IMPORTANT: on the right...
  • Page 13 STEP Install interior assembly Insert the cable Attach Interior connector to the Assembly to socket. Push the Mounting Plate and connector in firmly tighten 3 Screws. until it is completely attached. Interior Assembly Screws (L) Insert 4 AA Alkaline batteries and put on the battery cover.

  • Page 14: Factory Default Settings

    Factory Default Settings How to Reset? Press and hold the Reset button on the interior assembly for 5 seconds by using the Reset tool, until you hear a short beep and Green light Reset button flashes once. If the lock is paired successfully, please locate IMPORTANT: the lock, go to setting in DDLock App, turn on the Reset Button before resetting.

  • Page 15: Programming Guide

    Programming Guide 123456 The default master code is . Before programming in the lock, it's required that you change IMPORTANT: the default master code to a new master code of your own. If you have changed the default master code by following the Programming Guide, you must reset the lock before pairing this lock to DDlock App.
  • Page 16 Programming Guide Unwanted user New User Code + Same New User Code + Change Code + User Code 2 Long beeps+2 Green 3 beeps 3 beeps 3 beeps light flash Master Code + Delete All User Code 2 Long beeps+2 Green 3 beeps light flash Scan 4 Times Fingerprint (Each time...

  • Page 17: Troubleshooting

    Troubleshooting Why the lock won’t accept any inputs after I entered a code or Why the thumb turn won’t turn to lock/unlock? fingerprint incorrectly for so many times? The door direction might be set wrong during the installation, please The lock will shut down for 2 minutes after 5 unsuccessful attempts at follow the Installation guide or video to re-install the lock.

  • Page 18: Fcc Statement

    FCC Statement ISED Statement This equipment has been tested and found to comply with the limits for a English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Class B digital device, pursuant to part 15 of the FCC Rules. These limits Canada’s licence-exempt RSS(s).

  • Page 19: Information & Safety Warnings

    Information & Safety Warnings • Protect your User Codes and Master Code. • Care should be taken to ensure a long-lasting finish. When cleaning is required use a soft, damp cloth. Using lacquer thinner, caustic soaps, • Restrict access to your lock’s interior assembly and routinely check your abrasive cleaners or polishes could damage the coating and result in settings to ensure they have not been altered without your knowledge.
