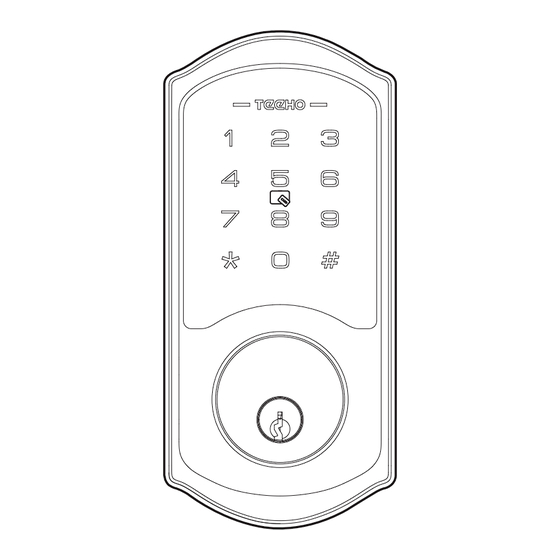

TE006
Smart Lock
Installation Guide / Programming Instructions
Scan QR code to download
DDLock App
Thank you for purchasing our products. Please review this manual thoroughly before operating your device.
All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
Scan QR code to watch
Installation Video
Advertisement
Related Manuals for TEEHO TE006
Summary of Contents for TEEHO TE006
- Page 1 TE006 Smart Lock Installation Guide / Programming Instructions Scan QR code to download Scan QR code to watch DDLock App Installation Video Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
- Page 2 Installation Overview DDLock Use Guide STEP 1: Prepare the door and check dimensions P 13 HOW TO REGISTER STEP 2: Install the latch and strike Pairing Your Lock STEP 3: Install exterior assembly P 15 Admin Passcode Management & Lock Page Overview STEP 4: Install interior assembly P 16 APP Unlock / Lock &...
- Page 3 INSTALLATION OVERVIEW Battery Interior Cover (H) Assembly (G) Mounting plate (E) Exterior Assembly Screw (F) Exterior Assembly Interior Assembly Screws (L) Mounting plate Screws (K) Latch (C) Strike (D) Backup key (A) Latch Screws Strike Screws...
- Page 4 Parts List Exterior Assembly x1 Backup Key x2 Latch x1 Strike x1 Mounting Plate x1 Exterior Assembly Interior Assembly x1 Strike Screws x2 Screw (Optional) Latch Screws x2 Battery Cover x1 Interior Assembly Drive-In Collar (Optional) IC card x2 Mounting plate Screws x2 Screws x3 Reset Tool x1 If any parts are lost or damaged, please contact Customer Support.
- Page 5 STEP Prepare the door and check dimensions 2-3/8" or 2-3/4" (60 or 70mm) Measure to Measure to confirm confirm that the that the backset is hole in the door is either 2-3/8" or 1-1/2’’ or 2-1/8" 1-1/2" or 2-1/8" 2-3/4" (60 or 70mm) (38mm or 54mm) 1"...
- Page 6 STEP Install the latch and strike Determine backset and adjust the latch No adjustment is required. Proceed to next step. 180° 90° Slotted hole is NOT centered. Hold the latch in front of the door hole, Rotate and pull the with the latch face flush against the latch as shown to door edge.
- Page 7 Use a screwdriver to test if deadbolt works smoothly. IMPORTANT: Install strike on the door frame. Make sure the hole in door frame is drilled a minimum of 1" (25mm) deep.
- Page 8 STEP Install exterior assembly Measure the diameter of the hole in the door. IMPORTANT: 1-1/2" (38mm) Before installation, make sure the latch is fully retracted (in the unlocked position) 1-1/2" or 2-1/8" Remove the spacer (38 or 54mm) Unlocked Locked 2-1/8"...
- Page 9 STEP Install interior assembly Determine the door is right handed or left handed. Notes: If the direction of the slide switch is set incorrectly, it Push the battery cover out in can be reset in DDLock App. the direction as illustrated. Door hinge IMPORTANT: on the right...
- Page 10 STEP Install interior assembly Insert the cable Attach Interior connector to the Assembly to socket. Push the Mounting Plate and connector in firmly tighten 3 Screws. until it is completely attached. Interior Assembly Screws (L) Insert 4 AA Alkaline batteries and put on the battery cover.
- Page 11 PROGRAMMING INSTRUCTIONS At a Glance Exterior Assembly Interior Assembly Red and Green Light Battery Cover IC card Touch Area Keypad Reset Button Privacy Button Thumb Turn Keyhole...
- Page 12 How to Use UNLOCK the door from inside UNLOCK the door from outside Rotate the thumb turn to Unlock position. Right hand Left hand LOCK the door from outside LOCK the door from inside Auto Lock Mode Manual Mode In Auto Lock mode, Rotate the thumb turn to Lock Position.
- Page 13 Definitions Programming Basic • Master Code • Silent Mode Required for programming and feature settings. The default master The beep sounds when pressing keypad can be muted. But you will code needs to be changed before programming. still hear low battery and system alerts. Property owner &...
- Page 14 Factory Default Settings How to Reset? Press and hold the Reset button on the interior assembly by using the reset Reset button tool, stop holding until you hear a short beep and see 1 green light flash. The reset button function must be turned on in IMPORTANT: the DDLock App before reseting.
- Page 15 DDLOCK USE GUIDE HOW TO REGISTER STEP Download “DDLock” App in Google Play or App Store. Scan QR code to download DDLock App STEP STEP Fill out this and then tap “Get Code”. You will be sent a Register verification code to verify your account ! Once you receive it, tap on “Register”...
- Page 16 Pairing Your Lock STEP STEP STEP Next + Add Lock Tap on the three Tap on Tap on “Next”. horizontal lines. “+ Add Lock”. STEP Tap on the blue plus sign. Notes: You may need to tap on lock keypad.
- Page 17 Admin Passcode Management After pairing the lock with DDLock, the admin passcode will be changed to a random 7 digit number, you can check the new admin passcode by following the picture guide below. And you can change it to your own administrator password. Lock Page Overview Unlock/Lock Settings Page...
- Page 18 APP Unlock / Lock To unlock the lock, tap this icon once. To lock the lock, press and hold on this icon. Passcode STEP STEP STEP Generate Passcode Enter a name for this Passcode Passcodes To access the Tap on Enter a name for passcode menu, “Generate...
- Page 19 IC Card STEP STEP STEP Choose the validity period of the lock. Once the lock says Add Card “Please swipe your Cards card", place the card against 5 on the keypad. Tap on “Cards”. Tap on “Add If you hear a long Card”.
- Page 20 Authorized Admin Authorized Admins are similar to eKeys; however, an authorized admin can do the following: STEP STEP Tap on “Authorized Admin” Set Timed Admin or Permanent Admin. Authorized Admin 1. Unlock/lock via the app. 2. Generate, Edit, Delete passcodes, IC cards. 3.
- Page 21 Lock Settings Here are some settings you should familiarize yourself with. Under Basics, you can view and change information such as Lock Name. Gateway shows signal strength if Gateway is connected. With Remote Unlock on and a Gateway connected, you can remotely unlock/lock your lock. Lock Sound adjusts the locks sound level.
- Page 22 Troubleshooting Why the lock won’t accept any inputs after I entered a code Why the thumb turn won’t turn to lock/unlock? incorrectly for so many times? The door direction might be set wrong during the installation, please The lock will shut down for 2 minutes after 5 unsuccessful attempts at follow the Installation guide or video to re-install the lock.
- Page 23 FCC Statement This equipment has been tested and found to comply with the limits for a This device complies with part 15 of the FCC Rules. Operation is subject Class B digital device, pursuant to part 15 of the FCC Rules. These limits to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, are designed to provide reasonable protection against harmful...
- Page 24 ISED Statement English: This device contains licence-exempt transmitter(s)/receiver(s) cet appareil est conforme à l'exemption des limites d'évaluation courante that comply with Innovation, Science and Economic Development dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition Canada’s licence-exempt RSS(s).
- Page 25 Information & Safety Warnings • Protect your User Codes and Master Code. • Care should be taken to ensure a long-lasting finish. When cleaning is required use a soft, damp cloth. Using lacquer thinner, caustic soaps, • Restrict access to your lock’s interior assembly and routinely check your abrasive cleaners or polishes could damage the coating and result in settings to ensure they have not been altered without your knowledge.
