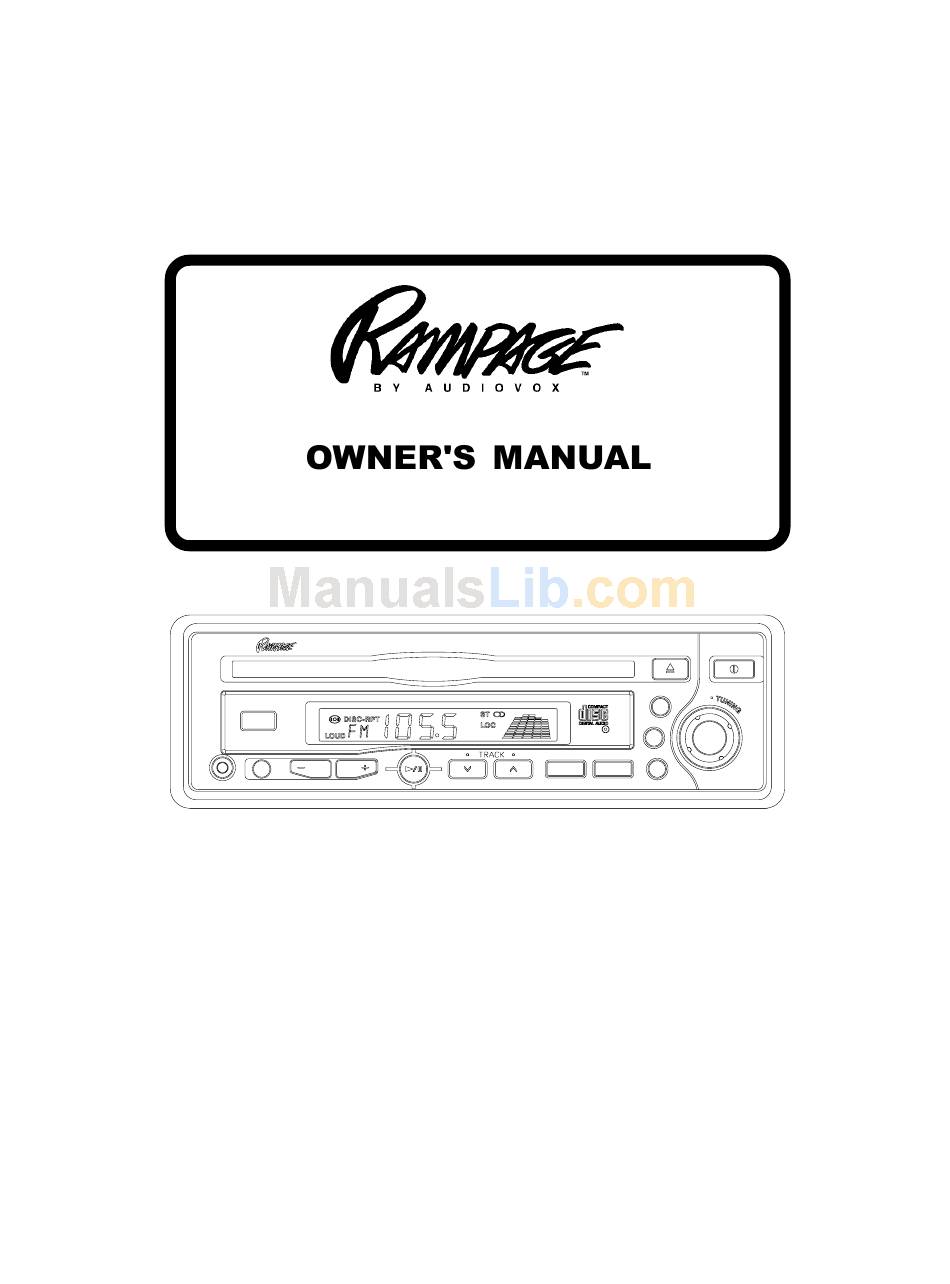

- Page 1 MUTE ACD-12 ACD-12 ACD-12 ACD-12 ACD-12 AM/FM/MPX RADIO WITH COMPACT DISC PLAYER AND QUARTZ CLOCK POWER ACD-12 EJECT LOUD/RND MONO/INT LOC/RPT RADIO BAND 128-6196A 1 of 16...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK 2 2 2 2 2 128-6196A 2 of 16...
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS This unit is designed for installation in cars, trucks, and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialist shops. - Page 4 The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do, we're here to help you. Just call our toll-free telephone assistance line at 1-800-645-4994 during the days and hours shown (U.S.A. and Canada only). MON.
- Page 5 R R R R R A A A A A DIO WIRING DIO WIRING DIO WIRING DIO WIRING DIO WIRING REFER TO PAGE 5 FOR SPEAKER WIRING 5 5 5 5 5 128-6196A 5 of 16...
- Page 6 SPEA A A A A K K K K K ER WIRING ER WIRING ER WIRING ER WIRING ER WIRING REFER TO PAGE 4 FOR RADIO WIRING 6 6 6 6 6 WARNING! l NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 1 SPEAKER. l NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
-
Page 7: Volume Control Buttons
The display will automatically return to the normal indication 5 seconds after the last volume adjustment or when another function is activated. These buttons are also used in conjunction with the SEL button to adjust ACD-12 EJECT LOUD/RND MONO/INT RADIO... - Page 8 response as desired. The bass level will be shown on the display panel from a mini- mum of B -7 to a maximum of B +7 (bAS 0 represents flat response).The display will automatically return to the normal indication 5 seconds after the last adjustment or when another function is activated.
- Page 9 conditions, the unit should be left in the stereo mode as indicated by the ST display panel when tuned to an FM stereo signal. If the stereo signal is too noisy for comfortable listening, press the MONO/INT select button to switch to monaural reception (the ST icon will disappear from the display panel).
- Page 10 temporarily stop play of the disc (the disc symbol ( ) will flash on the display panel). Press the button again to resume play of the disc from the point at which it was stopped. FORWARD TRACK SELECTOR ( During disc play, this button is used to quickly select the beginning of a particular track in the forward direction.
-
Page 11: Reset Button
the auxiliary input mode, the portable audio device will now operate through the audio system of the radio using the volume, tone and balance controls of the radio for adjustment of the sound. TIME/FREQUENCY SELECTOR (T/F) This unit can display either the clock time or radio frequency/CD player functions. -
Page 12: Specifications
Size: Operating Voltage: Fuse Ratings: Output Power: Output Wiring: Output Impedance: Tuning Range: Sensitivity: FM Stereo Separation: CD Frequency Response: CD Signal/Noise Ratio: CD Channel Separation: CD Distortion: *Specifications are subject to change without notice. CD-R AND CD-RW PLAYBACK CAPABILITY This model can play most CD-R and CD-RW media that contains audio programs. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. recommend that you keep this manual for reference on the many features found in this unit as well as how to set the clock. - Page 14 This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A.: AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 • 1-800-645-4994 CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA...
- Page 15 THIS PAGE INTENTIONALLY LEFT BLANK 15 15 15 15 15 128-6196A 15 of 16...
- Page 16 © 2001 Audiovox Electronics Corp., Hauppauge, NY 11788 Printed in China 128-6196A 128-6196A 16 of 16...
