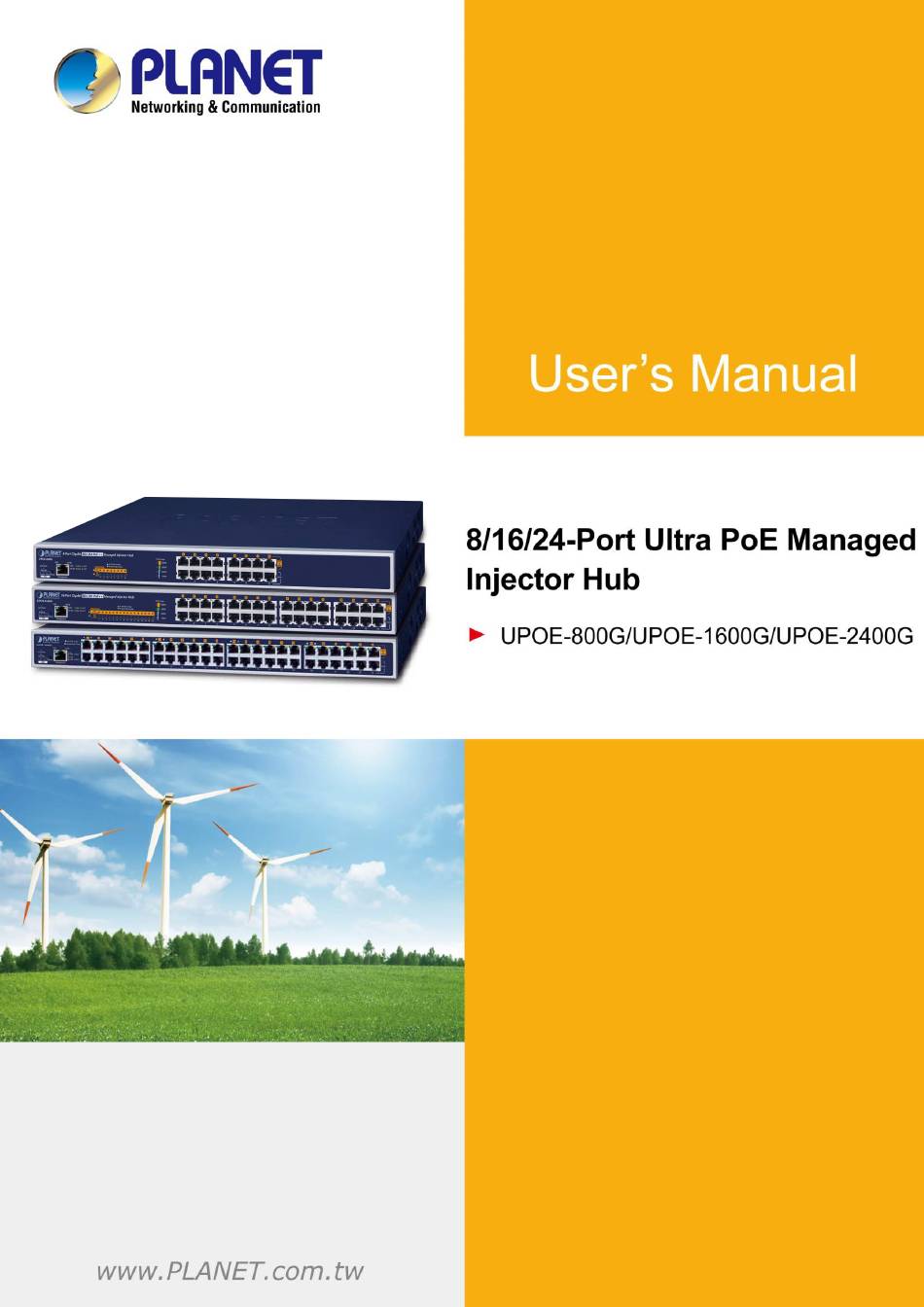

User's Manual of UPOE-800G/UPOE-1600G/UPOE-2400G
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPOE-800G and is the answer not in the manual?

Questions and answers

Related Manuals for Planet UPOE-800G

Summary of Contents for Planet UPOE-800G

  • Page 1 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G...
  • Page 2 PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

  • Page 3: Table Of Contents

    3.2 R ......................27 EQUIREMENTS 3.3 M ....................28 ANAGEMENT ETHOD 3.3.1 Web Management .................... 28 3.3.2 PLANET Smart Discovery Utility ..............29 4 WEB CONFIGURATION ................31 4.1 M ......................... 31 4.2 W ........................ 32 ANEL 4.3 S ........................32 YSTEM 4.3.1 System Information ...................
  • Page 4 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.6 Configuration Setting ..................38 4.3.7 Factory Default ....................40 4.3.8 System Log ...................... 42 4.3.9 System Reboot ....................43 4.3.10 Logout ......................44 4.4 SNMP ........................45 4.4.1 SNMP Management ..................46 4.5 P ....................48...

  • Page 5: Introduction

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 1. INTRODUCTION Thank you for purchasing PLANET 8-/16-/24-Port Gigabit 802.3bt PoE++ Managed Injector Hub, UPOE-800G/UPOE-1600G/UPOE-2400G. The description of this series is shown below: 8-Port Gigabit 802.3bt PoE++ Managed Injector Hub (400 watts) UPOE-800G UPOE-1600G 16-Port Gigabit 802.3bt PoE++ Managed Injector Hub (600 watts) UPOE-2400G 24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts)

  • Page 6: Product Description

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 1.2 Product Description PLANET 802.3bt PoE++ Managed Injector Hub series, a cost-effective and quick Ultra PoE solution, is designed to perfectly upgrade an existing network infrastructure to 802.3bt Power over Ethernet network system without replacing the existing Ethernet Switch.
  • Page 7 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power, the 802.3bt PoE++ Managed Injector Hub supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ mode, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
  • Page 8 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Quick and Easy 802.3bt/at PoE Network Deployment The 802.3bt PoE++ Managed Injector Hub is installed between a regular Ethernet Switch and the PDs. There are totally 16/32/48 RJ45 STP ports on the front panel of the 802.3bt PoE++ Managed Injector Hub, of which the 8/16/24 ports are on the lower stack functioned as "Data input"...
  • Page 9 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G User-friendly Web Management Interface To efficiently manage the powered devices, the 802.3bt PoE++ Managed Injector Hub provides remote Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface.
  • Page 10 Intelligent Powered Device Alive Check PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The 802.3bt PoE++ Managed Injector Hub can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch.
  • Page 11 The 802.3bt PoE++ Managed Injector Hub helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. The front panel of the UPOE-800G has four green LEDs indicating 100W, 200W, 300W and 400W of PoE power usage.
  • Page 12 With up to 95-watt PoE output capability, the 802.3bt PoE++ Managed Injector Hub can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

  • Page 13: How To Use This Manual

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 1.3 How to Use This Manual This User Manual is structured as follows:  Section 2, Installation It explains the functions of 802.3bt PoE++ Managed Injector Hub and how to physically install the 802.3bt PoE++ Managed Injector Hub.

  • Page 14: Product Features

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 1.4 Product Features  Interface UPOE-800G  Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards  16-port RJ45  8-port 10/100/1000Mbps “Data input”  8-port 10/100/1000Mbps “Data + Power output”  One 10/100/1000BASE-T management port UPOE-1600G ...
  • Page 15  Supports Network Time Protocol (NTP)  Firmware upgrade through Web interface  PLANET Smart Discovery utility automatically finds PLANET devices on the network  SNMP v1, v2c and v3 for system status monitoring  SNMP trap for alarm notification of events ...

  • Page 16: Product Specifications

    Fan Failure x 2 (red) Management port x 2: 1000 (green), 10/100(orange) Per PoE Port: 802.3bt/UPoE PoE-in-use x 1 (green) 802.3at PoE-in-use x1 (orange) PoE Power Usage LED x4 (green), UPOE-800G/UPOE-1600G only 100-240V AC, 100-240V AC, 100-240V AC, Power Requirements 50/60 Hz, 6.5A...
  • Page 17 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G maximum 36 watts End-span mode: End-span mode: maximum 36 watts maximum 36 watts Mid-span mode: Mid-span mode: maximum 36 watts maximum 36 watts PoE Power Budget 400 watts/1364BTU 600 watts/2047BTU 800 watts/2729BTU Number of 90W 802.3bt Type-4 PDs Number of 60W 802.3bt Type-3 PDs...
  • Page 18 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Management Management Interface Web, PLANET Smart Discovery Lite Power limit by consumption and allocation PoE admin mode Per port power schedule Per port power enable/disable Power feeding priority PoE Management Over temperature protection Current per port usage and status...

  • Page 19: Installation

    Figures 2-1-1, 2-1-2 and 2-1-3 show the front panels of the 802.3bt PoE++ Managed Injector Hubs.  Front Panel of UPOE-800G Figure 2-1-1: UPOE-800G Front Panel  Front Panel of UPOE-1600G Figure 2-1-2: UPOE-1600G Front Panel  Front Panel of UPOE-2400G Figure 2-1-3: UPOE-2400G Front Panel ■...

  • Page 20: Led Indicators

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G The following is the summary table of reset button functions: Reset Button Pressed and Released Function About 5 second Reboot the 802.3bt PoE++ Managed Injector Hub. Reset the 802.3bt PoE++ Managed Injector Hub to Factory Default configuration. The 802.3bt PoE++ Managed Injector About 10 seconds Hub will reboot and load the default IP settings.
  • Page 21 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G UPOE-1600G System: Color Function SYS Power Green Lights to indicate power is on. PoE Fail Lights to indicate PoE module failure. FAN1 Fail Lights to indicate FAN1 has stopped. FAN2 Fail Lights to indicate FAN2 has stopped.

  • Page 22: Injector Rear Panel

    Figures 2-1-5 & 2-1-6 & 2-1-7 shows the rear panel of the 802.3bt PoE++ Managed Injector Hub. Figure 2-1-5: UPOE-800G Rear Panel Figure 2-1-6: UPOE-1600G Rear Panel Figure 2-1-7: UPOE-2400G Rear Panel The 802.3bt PoE++ Managed Injector Hub is a power-required device, meaning 802.3bt PoE++ Managed Injector Hub will not work till it is powered.

  • Page 23: Installing The 802.3Bt Poe++ Managed Injector Hub

    This section describes how to install your 802.3bt PoE++ Managed Injector Hub and make connections to the 802.3bt PoE++ Managed Injector Hub. Please read the following topics and perform the procedures in the order being presented. PLANET 802.3bt PoE++ Managed Injector Hub does not need software configuration. 2.2.1 Desktop Installation To install an 802.3bt PoE++ Managed Injector Hub on a desktop or shelf, simply complete the following steps:...

  • Page 24: Rack Mounting

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 2.2.2 Rack Mounting To install the 802.3bt PoE++ Managed Injector Hub in a 19-inch standard rack, follow the instructions described below. Step 1: Place your 802.3bt PoE++ Managed Injector Hub on a hard flat surface, with the front panel positioned towards your front side.

  • Page 25: Network Application Installation

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 2.2.3 Network Application Installation The 802.3bt PoE++ Managed Injector Hub is not an equipment with data switching function between data ports. To inject PoE power and transmit data packets to PDs, the 802.3bt PoE++ Managed Injector Hub is usually linked to an Ethernet switch.

  • Page 26: Power Over Ethernet Powered Device

    Since each PoE port of 802.3bt PoE++ Managed Injector Hub supports 52V (UPOE-1600G) or 54V DC (UPOE-800G/UPOE-2400G) PoE power output, be sure that the powered device’s acceptable DC power is 52V (UPOE-1600G) and 54V DC (UPOE-800G/UPOE-2400G); otherwise, it will damage the...

  • Page 27: Management

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 3 MANAGEMENT This chapter describes how to manage the 802.3bt PoE++ Managed Injector Hub with the following sections included: - Overview - Management Method - Logging on to the 802.3bt PoE++ Managed Injector Hub 3.1 Overview The 802.3bt PoE++ Managed Injector Hub provides a user-friendly, Web interface where you can perform various device...

  • Page 28: Management Method

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 3.3 Management Method User can manage the 802.3bt PoE++ Managed Injector Hub by Web Management via a network connection. 3.3.1 Web Management The 802.3bt PoE++ Managed Injector Hub can be configured through an Ethernet connection. The factory default IP address is 192.168.0.100 with subnet mask 255.255.255.0, so please make sure the manager PC must be set to the same...

  • Page 29: Planet Smart Discovery Utility

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 3.3.2 PLANET Smart Discovery Utility For easily listing the 802.3bt PoE++ Managed Injector Hub in your Ethernet environment, Planet Smart Discovery Utility from user’s manual CD-ROM is an ideal solution. The following installation instructions guide you to running Planet Smart Discovery Utility.
  • Page 30 By clicking the “Control Packet Force Broadcast” function, it allows you to assign new setting value to the 802.3bt PoE++ Managed Injector Hub under a different IP subnet address. Press the “Connect to Device” button and then the Web login screen appears in Figure 3-1-2. Press the “Exit” button to shut down Planet Smart Discovery Utility.

  • Page 31: Web Configuration

    802.3bt PoE++ Managed Injector Hub from the local LAN. This section indicates how to configure the 802.3bt PoE++ Managed Injector Hub to enable its smart function. The following web screen is based on the UPOE-2400G. The displays of the UPOE-800G and UPOE-1600G are the same as that of the UPOE-2400G.

  • Page 32: Web Panel

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.2 Web Panel At the top of the Web management page, the active panel displays the link statuses of management ports and PoE ports. Figure 4-2-1: Web Panel Screen  Green light indicates network data is sending or receiving.

  • Page 33: System Information

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.1 System Information This section displays system information of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-3-1 appears. Table 4-3-1 describes the system information of the 802.3bt PoE++ Managed Injector Hub. Figure 4-3-1: System Information Web Page Screen...

  • Page 34: Ip Configuration

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.2 IP Configuration This section provides the IP Configuration of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-3-2 appears. Table 4-3-2 describes the IP Configuration object of 802.3bt PoE++ Managed Injector Hub. Figure 4-3-2: IP Configuration Web Page Screen...

  • Page 35: Ntp Configuration

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.3 NTP Configuration This section provides the NTP Configuration of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-3-3 appears and Table 4-3-3 describes the NTP Configuration object of 802.3bt PoE++ Managed Injector Hub.

  • Page 36: Password Setting

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.4 Password Setting This section provides the Password Setting of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-3-4 appears. Table 4-3-4 describes the Password Setting objects of 802.3bt PoE++ Managed Injector Hub. Figure 4-3-4: Password Setting Web Page Screen...

  • Page 37: Firmware Upgrade

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.5 Firmware Upgrade This section provides the firmware upgrade of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-3-5 appears. Figure 4-3-5: Firmware Upgrade Web Page Screen Please press “Browse” to locate the latest firmware of 802.3bt PoE++ Managed Injector Hub that deposits in your PC. The...

  • Page 38: Configuration Setting

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.6 Configuration Setting This function allows output the current 802.3bt PoE++ Managed Injector Hub configuration as a file, and upload it to other 802.3bt PoE++ Managed Injector Hub for quick multi-devices setting. The description of the procedure and screens in the following appears.

  • Page 39: Configuration Upload

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Figure 4-3-10: File Save Screen Configuration Upload ■ Click the “Browse” button of the Configuration Setting Web page and the system would pop up the file selection screen to choose saved configuration. The screen in Figure 4-3-11 appears.

  • Page 40: Factory Default

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Select on the configuration file and then click “Upload”. After system has uploaded, the screen in Figure 4-3-12 appears. Figure 4-3-12: Configuration Upload Finished Screen When configuration has been uploaded, please re-log in the system. Figure 4-3-13: System Login Screen 4.3.7 Factory Default...
  • Page 41 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Please press the “Reset” button to take effect and the “Do you really want to reset the current settings to default?” popup window appears. Please press the “OK” button to continue the factory default process. The screen appears in Figure 4-3-15.

  • Page 42: System Log

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.8 System Log This section provides the system log setting and information display of 802.3bt PoE++ Managed Injector Hub as the screen Figure 4-3-18 appears. Table 4-3-6 describes the system log setting object of 802.3bt PoE++ Managed Injector Hub.

  • Page 43: System Reboot

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.9 System Reboot This section provides the system reboot function of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-3-19 appears. Figure 4-3-19: System Reboot Web Page Screen Press the “Reboot” button to reboot the 802.3bt PoE++ Managed Injector Hub as the screen in...

  • Page 44: Logout

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.3.10 Logout This section provides logout function of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-3-21 appears. Figure 4-3-21: Logout Web Page Screen Press the “Logout” button and then the popup window with re-login request appears in Figure 4-3-22.

  • Page 45: Snmp

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Please input the password for entering into Web main menu screen of 802.3bt PoE++ Managed Injector Hub as the screen Figure 4-3-23 appears. Figure 4-3-23: Main Web Page Screen 4.4 SNMP The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices.

  • Page 46: Snmp Management

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.4.1 SNMP Management This section provides SNMP setting of 802.3bt PoE++ Managed Injector Hub as the screen in Figure 4-4-2 appears and Table 4-4-2 describes the SNMP object of 802.3bt PoE++ Managed Injector Hub. Figure 4-4-2: SNMP Web Page Screen...
  • Page 47 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G Allows to input characters for contact of 802.3bt PoE++ Managed Injector Hub.  Contact The maximum length is 30 characters. Allows to input characters for description of 802.3bt PoE++ Managed Injector  Description Hub. The maximum length is 30 characters.

  • Page 48: Power Over Ethernet

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.5 Power over Ethernet  Power Management: In a Power over Ethernet system, operating power is applied from a power source (PSU-power supply unit) over the LAN infrastructure to powered devices (PDs), which are connected to ports. Under some conditions, the total output power required by PDs can exceed the maximum available power provided by the PSU.

  • Page 49: Poe Configuration

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.5.1 PoE Configuration This section provides PoE (Power over Ethernet) Configuration and PoE output status of 802.3bt PoE++ Managed Injector Hub as screen in Figure 4-5-2 appears. Table 4-5-2 describes the PoE Configuration object of 802.3bt PoE++ Managed Injector Hub.
  • Page 50 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G per word, like ‘, “, \, < and >. Allows user to disable or enable per port PoE function, and also allows to choose  PoE Function schedule to enable PoE Schedule function of each port.

  • Page 51: Poe Schedule Profile

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.5.2 PoE Schedule Profile This section provides user to configure PoE schedule and scheduled power recycling. The “PoE schedule” helps you to enable or disable PoE power feeding for PoE ports during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
  • Page 52 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G The PoE Schedule Profile Web Screens are shown in Figure 4-5-3 Table 4-5-3. Figure 4-5-3: PoE Configuration Web Page Screen The page includes the following information: Object Description Allows user to disable or enable per port PoE function, and also allows to choose ...
  • Page 53 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G PoE Schedule user can configure a duration time for PoE port as default value does not provide power; screen in Figure 4-5-4 Table 4-5-4 show. Figure 4-5-4: PoE Schedule Web Page Screen The page includes the following information:...
  • Page 54 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G  Start Min Allows user to set what minute PoE function does by enabling it.  End Hour Allows user to set what hour PoE function does by disabling it.  End Min Allows user to set what minute PoE function does by disabling it.

  • Page 55: Poe Alive Check Configuration

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.5.3 PoE Alive Check Configuration The 802.3bt PoE++ Managed Injector Hub can be configured to monitor connected PD’s status in real-time via ping action. Once the PD stops working and without response, the 802.3bt PoE++ Managed Injector Hub is going to restart PoE port power, and bring the PD back to work.
  • Page 56 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G The page includes the following fields: Object Description  Mode Allows user to enable or disable per port PD Alive Check function. All ports are disabled as default value.  Remote PD IP Address This column allows user to set PoE device IP address here for system making ping to the PoE device.

  • Page 57: Poe Status

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 4.5.4 PoE Status This page allows user to see the usage of individual PoE Port. The screen in Figure 4-5-6 appears Figure 4-5-6: PoE Status Screenshot The page includes the following fields: Object Description  Port Number Displays per port status.

  • Page 58: Power Over Ethernet Overview

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 5. POWER OVER ETHERNET OVERVIEW What is PoE? Based on the global standard IEEE 802.3af, PoE is a technology for wired Ethernet, the most widely installed local area network technology adopted today. PoE allows the electrical power necessary for the operation of each end-device to be carried by data cables rather than by separate power cords.
  • Page 59 User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G The data pairs are used. Since Ethernet pairs are transformer coupled at each end, it is possible to apply DC power to the center tap of the isolation transformer without upsetting the data transfer. In this mode of operation the pair on pins 3 and 6 and the pair on pins 1 and 2 can be of either polarity.

  • Page 60: The Poe Provision Process

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 6. THE POE PROVISION PROCESS While adding PoE support to networked devices is relatively painless, it should be realized that power cannot simply be transferred over existing Cat5e cables. Without proper preparation, doing so may result in damage to devices that are not designed to support provision of power over their network interfaces.

  • Page 61: Start-Up

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G 6.3 Start-up Once line detection and optional classification stages are completed, the PSE must switch from low voltage to its full voltage capacity (44-57 Volts) over a minimal amount of time (above 15 microseconds). A gradual startup is required, as a sudden rise in voltage (reaching high frequencies) would introduce noise on the data lines.

  • Page 62: Mdi Settings

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G APPENDIX A A.1 MDI Settings The Medium-Dependent Interface (MDI or RJ45) serves as the data/power interface between Ethernet elements. As such, it has two optional connection methods to carry the power. Named Alternative A & B, Table 1 details the two power feeding alternatives.

  • Page 63: Data Out Poe Injector Rj45 Port Pin Assignments

    User’s Manual of UPOE-800G/UPOE-1600G/UPOE-2400G A.3 DATA OUT PoE Injector RJ45 Port Pin Assignments PIN NO 10BASE-T 1000BASE-T 100BASE-TX A.4 RJ45 Pin Assignment of Non-802.3af/802.3at Standard PD with PoE Mid-span PD Pin out of Cisco non-802.3af standard PD Pin out of POE Mid-span...
