PureMate PM-470 Instruction Manual

25l dehumidifier
Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL NO: PM-470
I N S T R U C T I O N M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the PM-470 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PureMate PM-470

Summary of Contents for PureMate PM-470

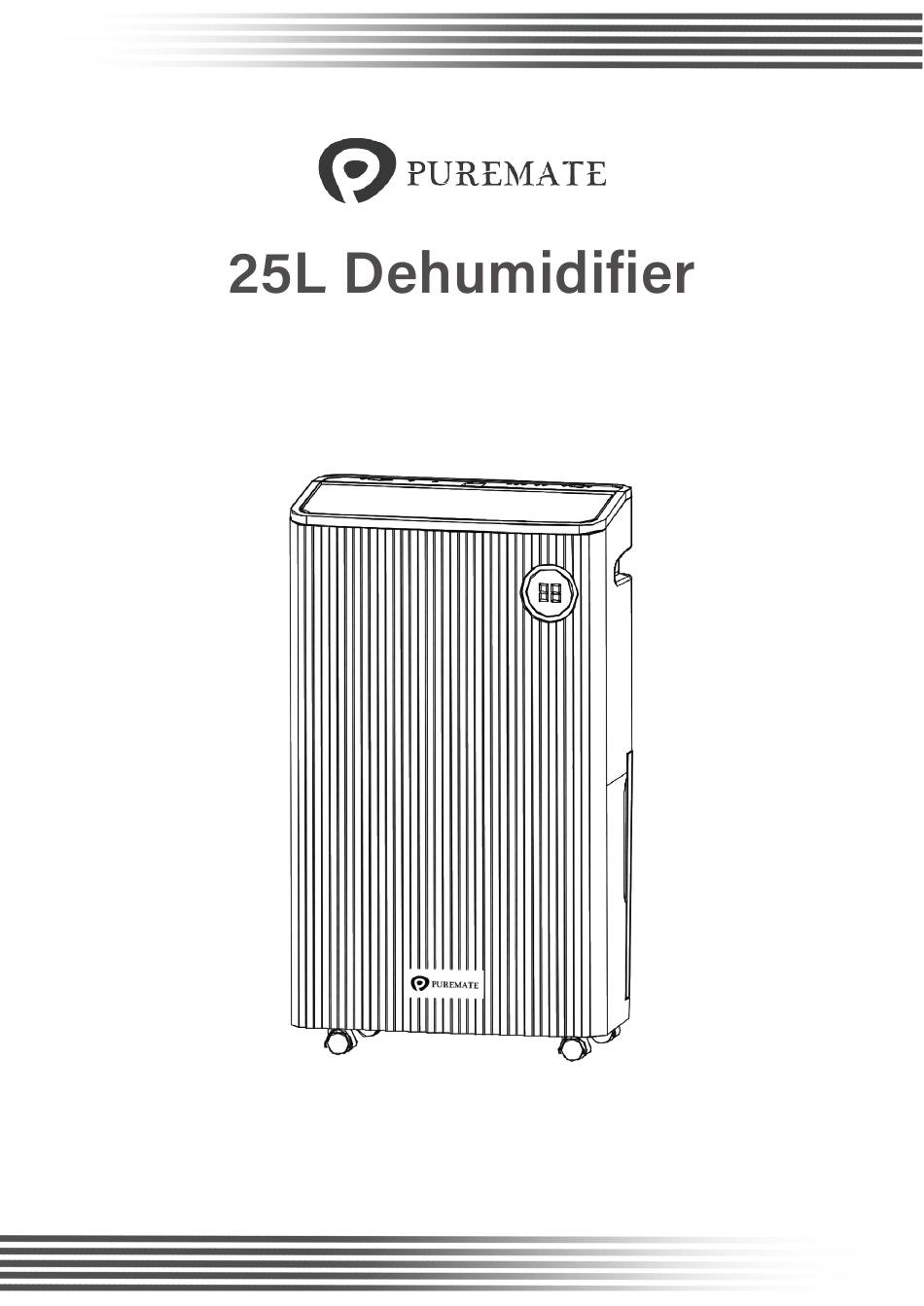

  • Page 1 MODEL NO: PM-470 I N S T R U C T I O N M A N U A L...
  • Page 2 Ensure that all safety precautions are followed when using electrical appliances for the proper operation of the device. This instruction booklet describes the safety precautions to be observed during operation to prevent injuries to yourself, other persons and damage to the device. The content not only is suitable for this product but also suitable for electrical appliances in general Do Not Use This 25L Dehumidifier Until You Have Read This Entire Manual Thoroughly and Keep in a safe place for future reference.
  • Page 3 ◎ Always use the appliance only on the voltage specified. ◎ Never immerse the product or power cable with water or other liquids. ◎ Do not leave the appliance unattended around children. ◎ Do not insert any objects or fingers into any openings. ◎...
  • Page 4 ◎ Never cover or restrict airflow to the dehumidifier whilst in use. ◎ When the appliance is not in use for a prolonged period, please turn it off, unplug it, pack it well, and store it in dry cool place. Please ensure water tank is always emptied before storing the dehumidifier.
  • Page 5 ◎ In the rare occurrence the unit should malfunction, do not attempt any repairs. All repairs are required to be taken out by a professional. Please Contact PureMate Customer Services. CAUTION: Do not use appliance at temperatures below 5 C, to prevent the possi-...
  • Page 6 This marking indicates that this prodcut should not be disposed with other houshold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection system or contact the retailer where the prodcut was purchased.
  • Page 7 BACK FRONT Control Panel Air Outlet Handle Humidity Indicator light Air Inlet This is an indicator of the current air humidity, Continuous Drainage Hose Connection RED: Humidity more than 70%, Water tank GREEN:Humidity between 50%-70%, BLUE: Humidity below 50% Castor Wheels Air circulation Defrost strong dehumidifying...
  • Page 8 1.Power button. Press Power button to turn the dehumidifier on or standby. The dehumidify mode indicator and room humidity will show on display once the dehumidifier turns on. 2.Mode button Press to select the desired dehumidifier mode. Normal Machine works with the desired humidity settings. when the humidity is decreased to the set level, machine automatically stops dehumidifying the air.
  • Page 9 5. Fan speed button Press Fan Speed button to set the fan speed to high or low, and the corresponding fan speed indicator will show on display. Fan speed can only be adjusted under Normal dehumidifying and Air Clean mode. 6.

  • Page 10: Auto Restart

    10. Child Lock Press both of Auto Swing and Air Clean button for few seconds to active or deactive the Child Lock function. When entering the child lock, the LED displays LC and flashes for 5seconds, then resume the normal display. Press the other keys in the child lock state, LED displays LC and flash for 5seconds to remind the lock state.
  • Page 11 When the water tank full indicator illuminates and the dehumidifier beeps. The unit will automatically stop. Press the standby button before removing the water tank. 1. Gently pull the water tank out from the back of the dehumidifier. 2. Use the handle to lift, tilt and empty the water tank. 3.
  • Page 12 1. Remove water tank 2. Connect the drain hole with hose. 3. Ensure the water will always drain freely and the tube will remain in place. 4. Ensure the hose end has a suitable drainage outlet (e.g.bucket/drain) 5. Insert the water tank into the correct position. CAUTION: DO NOT PLACE CONTINUOUS DRAINAGE HOSE OUTSIDE IN TEMPERATURES BELOW 1O...

  • Page 13: Cleaning The Filters

    CLEANING THE FILTERS: ◎ Remove the back cover from dehumidifier. ◎ Remove excess dust by patting lightly or vacuuming with brush. ◎ If excessively dirty, remove the carbon filter. Please wash with the back grid and filter cover with warm soapy water and rinse.
  • Page 14 Items purchased directly with PureMate, or one of our approved resellers, you will automatically register your warranty for 1 (ONE) year. You do not require to register again for your warranty. All warranties will execute our terms and conditions you will find these via our website at www.puremate.co.uk...
  • Page 15 Prior to requesting to repair,please check for the following:...
  • Page 16 Nothing is wrong with your dehumidifier in case of the following...
  • Page 18 25L DEHUMIDIFIER MODEL NO: PM 470 Super Tech Health Limited 129 Shady Lane Great Barr Birmingham West Midlands B44 9ER United Kingdom WWW.PUREMATE.CO.UK...
