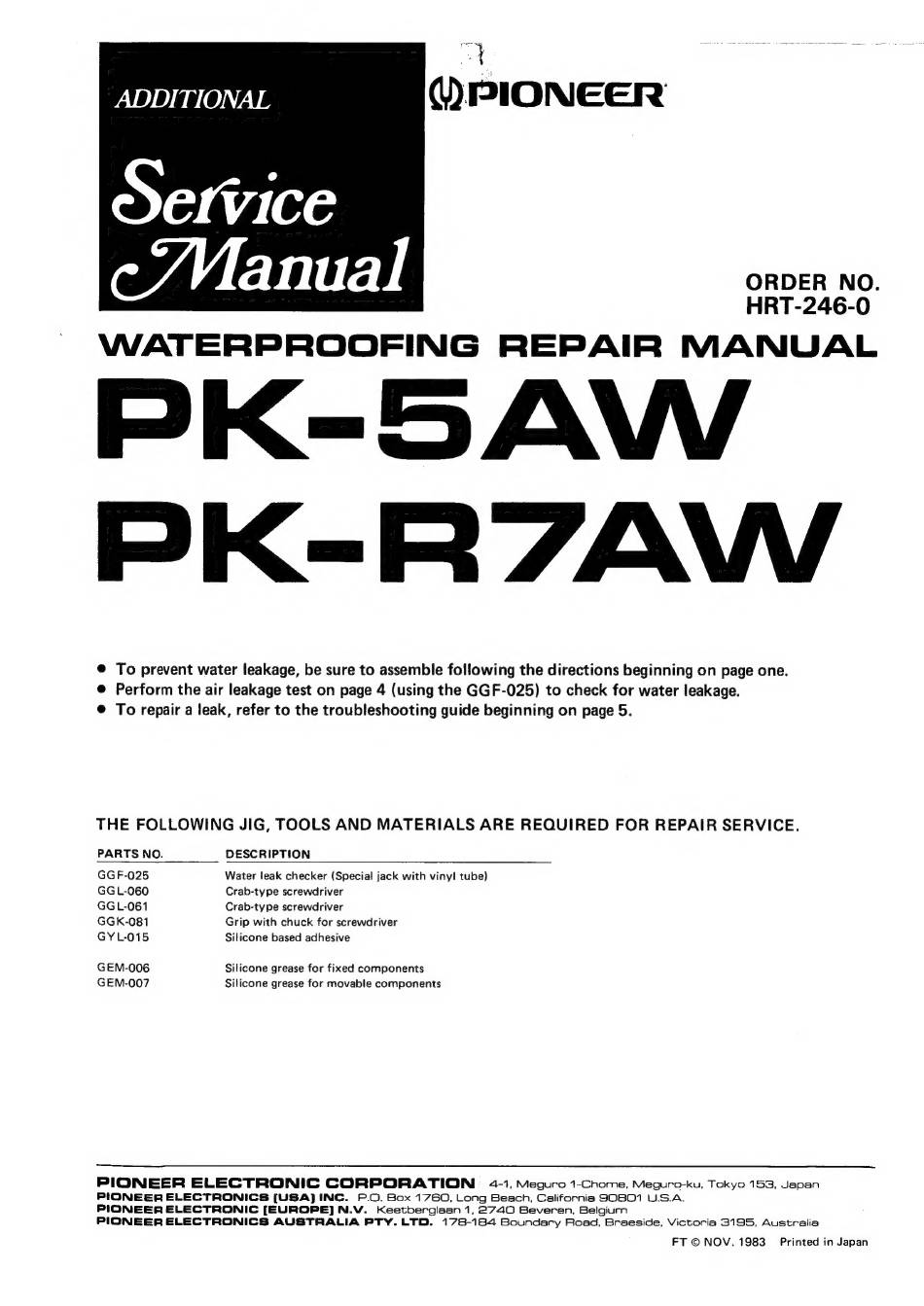

Pioneer PK-5AW Service Manual

ADDITIONAL VY PIONEER
ervice
ALEVtIEY| en
HRT-246-0
WATERPROOFING REPAIR MANUAL
PK-SAW
PK-R 7AVV
@ To prevent water leakage, be sure to assemble following the directions beginning on page one.
@ Perform the air leakage test on page 4 (using the GGF-025) to check for water leakage.
@ To repair a leak, refer to the troubleshooting guide beginning on page 5.
THE FOLLOWING JIG, TOOLS AND MATERIALS ARE REQUIRED FOR REPAIR SERVICE.
PARTS NO. DESCRIPTION
GGF-025 Water leak checker (Special jack with vinyl tube)
GGL-060 Crab-type screwdriver
GGL-061 Crab-type screwdriver
GGK-081 Grip with chuck for screwdriver
GYL-015 Silicone based adhesive
GEM-006 Silicone grease for fixed components
GEM-007 Silicone grease for movable components
PIONEER ELECTRONIC CORPORATION 3 2-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS [USA] INC. P.O. Box 1760, Long Beach, California 90801 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Keetbergiaan 1, 2740 Beveren, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia
FT © NOV. 1983 Printed in Japan
