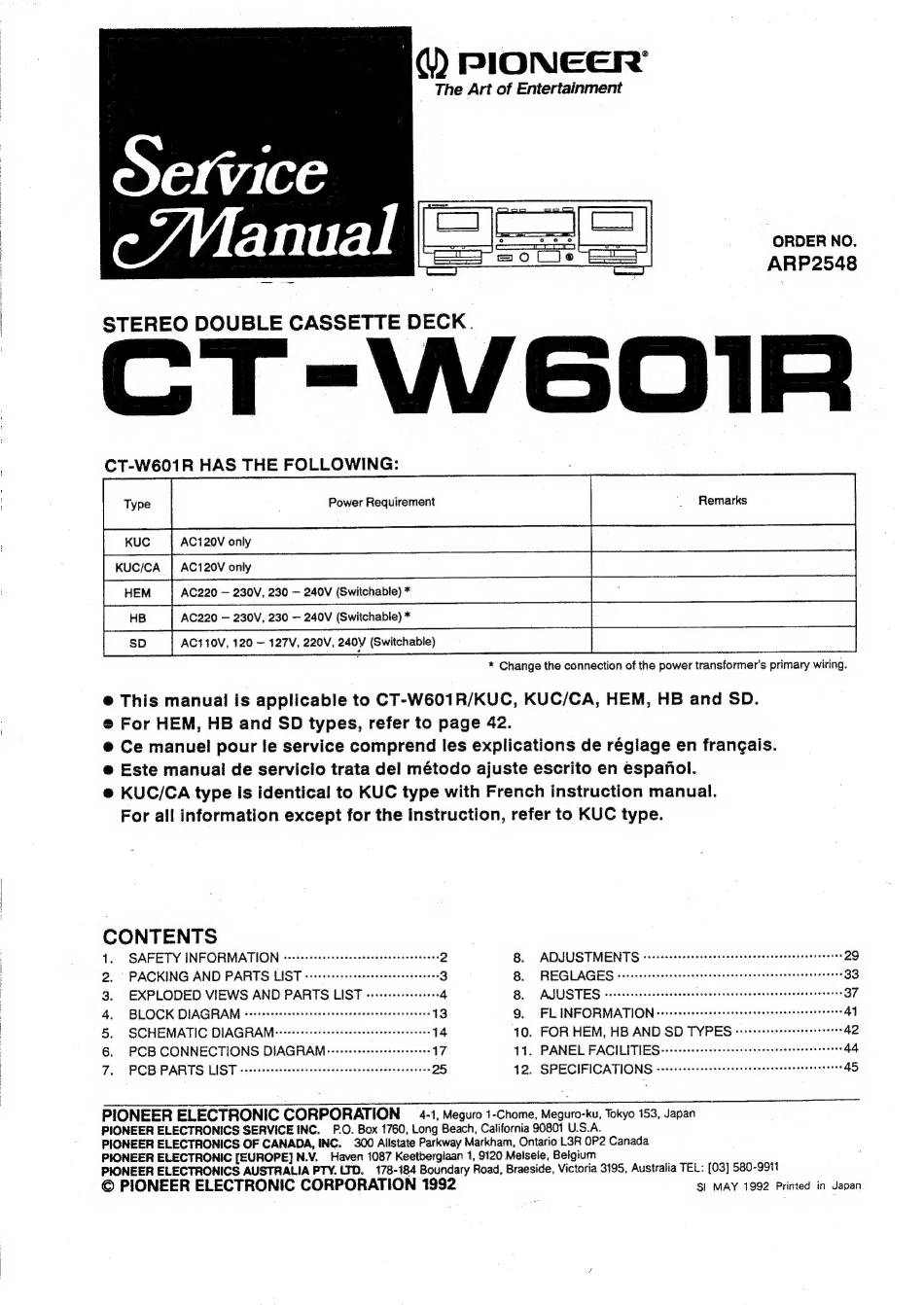

Pioneer CT-W601R Service Manual

1) PIONEER'
The Art of Entertainment
ORDER NO,
ARP2548
STEREO DOUBLE CASSETTE DECK.
CT-W601R HAS THE FOLLOWING:
K'
AC220 — 230V, 230 — 240V (Switchable) *
AC110V, 120 — 127V, 220V, 240V (Switchable)
Cc (o)
* Change the connection of the power transformer's primary wiring.
@ This manual is applicable to CT-W601R/KUC, KUC/CA, HEM, HB and SD.
@ For HEM, HB and SD types, refer to page 42.
@ Ce manuel pour le service comprend les explications de réglage en frangais.
e@ Este manual de servicio trata del método ajuste escrito en espanol.
@ KUC/CA type is identical to KUC type with French instruction manual.
For all information except for the instruction, refer to KUC type.
CONTENTS
© PIONEER ELECTRONIC CORPORATION 1992 S| MAY 1992 Printed in Japan
