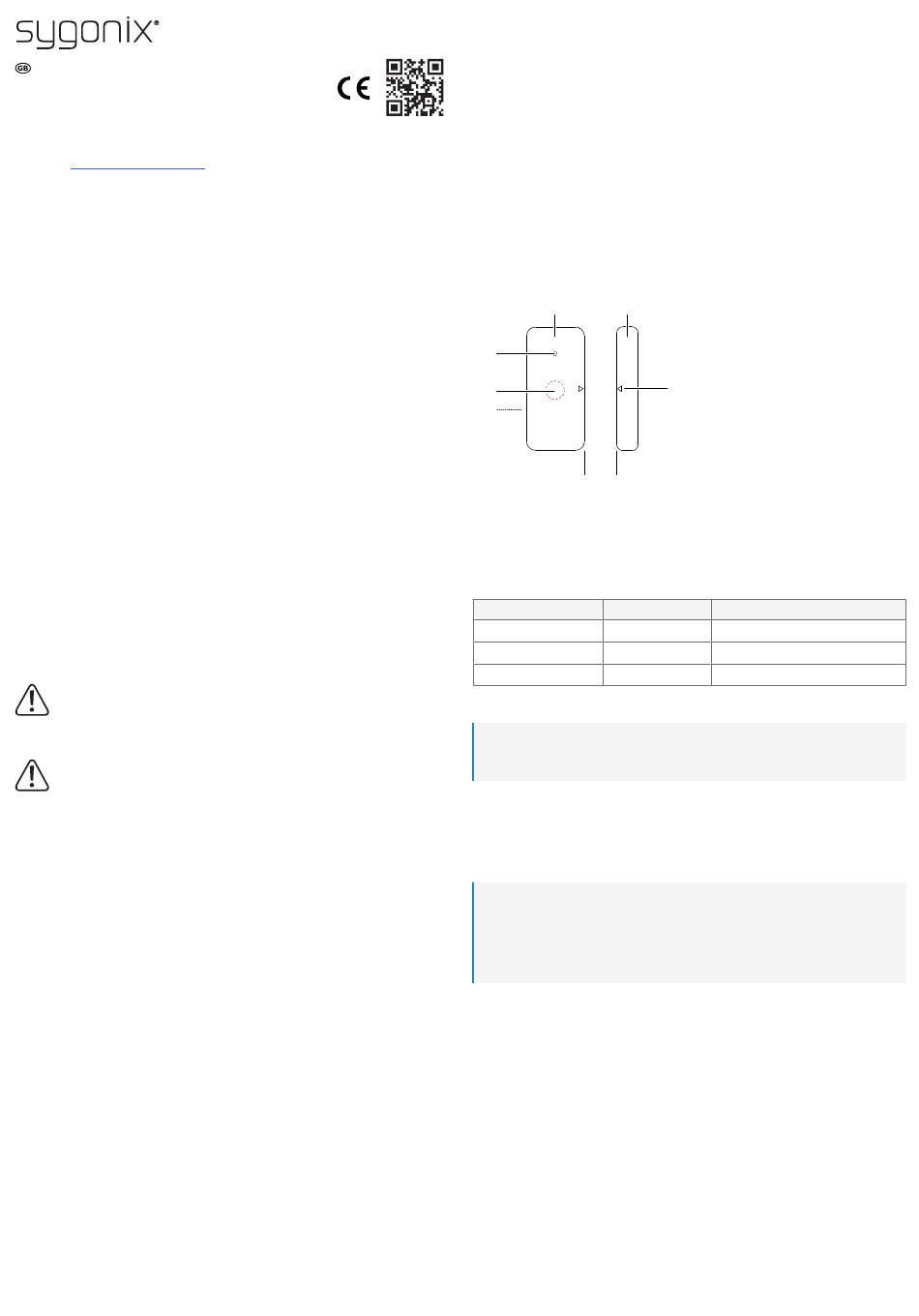

Sygonix SY-6052184 Operating Instructions
Sygonix SY-6052184 Operating Instructions

Sygonix SY-6052184 Operating Instructions

Zigbee door/window contact sensor

Advertisement

Quick Links

Operating Instructions
Zigbee Door/Window Contact Sensor
Item no: 3026092
1 Operating Instructions for download
Use the link
www.conrad.com/downloads
complete operating instructions (or new/current versions if available). Follow the instructions
on the web page.
2 Intended use
The product is a Zigbee window and door contact sensor. Use the product to detect and no-
tify you when a window/door is opened and closed.
The product can be integrated into a network in one of the following ways:
Zigbee gateway (Item no. 3026091)
Home Assistant via Zigbee integration
Home Assistant via Zigbee2MQTT
The product is intended for indoor use only. Do not use it outdoors.
Contact with moisture must be avoided under all circumstances.
If you use the product for purposes other than those described, the product may be dam-
aged.
Improper use can result in short circuits, fires, or other hazards.
The product complies with the statutory national and European requirements.
For safety and approval purposes, you must not rebuild and/or modify the product.
Read the operating instructions carefully and store them in a safe place. Make this product
available to third parties only together with the operating instructions.
All company names and product names are trademarks of their respective owners. All rights
reserved.
3 Delivery contents
Sensor unit
Magnet
2x CR1632 battery
4 Description of symbols
The following symbols are on the product/appliance or are used in the text:
The symbol warns of hazards that can lead to personal injury.
5 Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling, we assume no liability for any resulting personal injury or
damage to property. Such cases will invalidate the warranty/guarantee.
5.1 General
The product is not a toy. Keep it out of the reach of children and pets.
Do not leave packaging material lying around carelessly. This may become dangerous
playing material for children.
If you have questions which remain unanswered by this information product, contact our
technical support service or other technical personnel.
Maintenance, modifications and repairs must only be completed by a technician or an
authorised repair centre.
5.2 Handling
Handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
5.3 Operating environment
Do not place the product under any mechanical stress.
Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam
and solvents.
Protect the product from high humidity and moisture.
Protect the product from direct sunlight.
5.4 Operation
Consult an expert when in doubt about the operation, safety or connection of the
product.
If it is no longer possible to operate the product safely, take it out of operation and pro-
tect it from any accidental use. DO NOT attempt to repair the product yourself. Safe op-
eration can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
1
(alternatively scan the QR code) to download the
2x Double-sided adhesive tape
Operating instructions
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
5.5 Batteries
Correct polarity must be observed while inserting batteries.
The batteries should be removed from the device if it is not used for a long period of time
to avoid damage through leaking. Leaking or damaged batteries might cause acid burns
when in contact with skin, therefore use suitable protective gloves to handle corrupted
batteries.
Batteries must be kept out of reach of children. Do not leave batteries lying around, as
there is risk, that children or pets swallow them.
All batteries should be replaced at the same time. Mixing old and new batteries in the
device can lead to battery leakage and device damage.
Batteries must not be dismantled, short-circuited or thrown into fire. Never recharge non-
rechargeable batteries. There is a risk of explosion!
6 Product overview
1
2
6
5
4
max. 15 mm
1
Sensor unit
3
Alignment marking
5
Pairing button
6.1 Indications
Component
State
Indicator light
Off
Indicator light
Flashes 1x
Indicator light
Flashing
7 Installing batteries
Note:
If an insulating strip protrudes from the battery compartment, batteries are installed
already. Pull the strip out to establish the power supply.
1. Prepare the required number of batteries of the correct type as stated in the section
"Technical data".
2. At the back of the sensor unit, pry open the battery compartment with a thin object.
3. With the plus pole (+) facing up, insert the batteries into the battery slots.
4. Close the battery compartment.
Note:
Replace the battery/batteries under the following conditions:
– If the product can no longer be connected to the network.
– If the home network dashboard (example: mobile app) indicates a flat battery/batteries.
– At least once a year.
8 Installing the sensor unit and magnet
If the magnet moves away from the sensor unit, the sensor will detect an open door/window.
To facilitate this mechanism, one component (sensor unit or magnet) must be installed on
the door/window frame and the other component on the door/window.
Installation requirements:
The distance between the sensor unit and the next Zigbee router or gateway must be
within ≤90 m (open space).
The gap between the sensor unit and the magnet must be ≤15 mm.
The alignment markings ► and ◄ on the sensor unit and the magnet must face each
other and lie on the same horizontal line.
Installing:
1. Install one component on the door/window with the supplied adhesive tape.
2. Install the other component on the door/window frame with the supplied adhesive tape.
3
2
Magnet
4
Battery compartment
6
Indicator light
Indication
The standby mode is activated
An open door/window was detected
The pairing mode is activated
