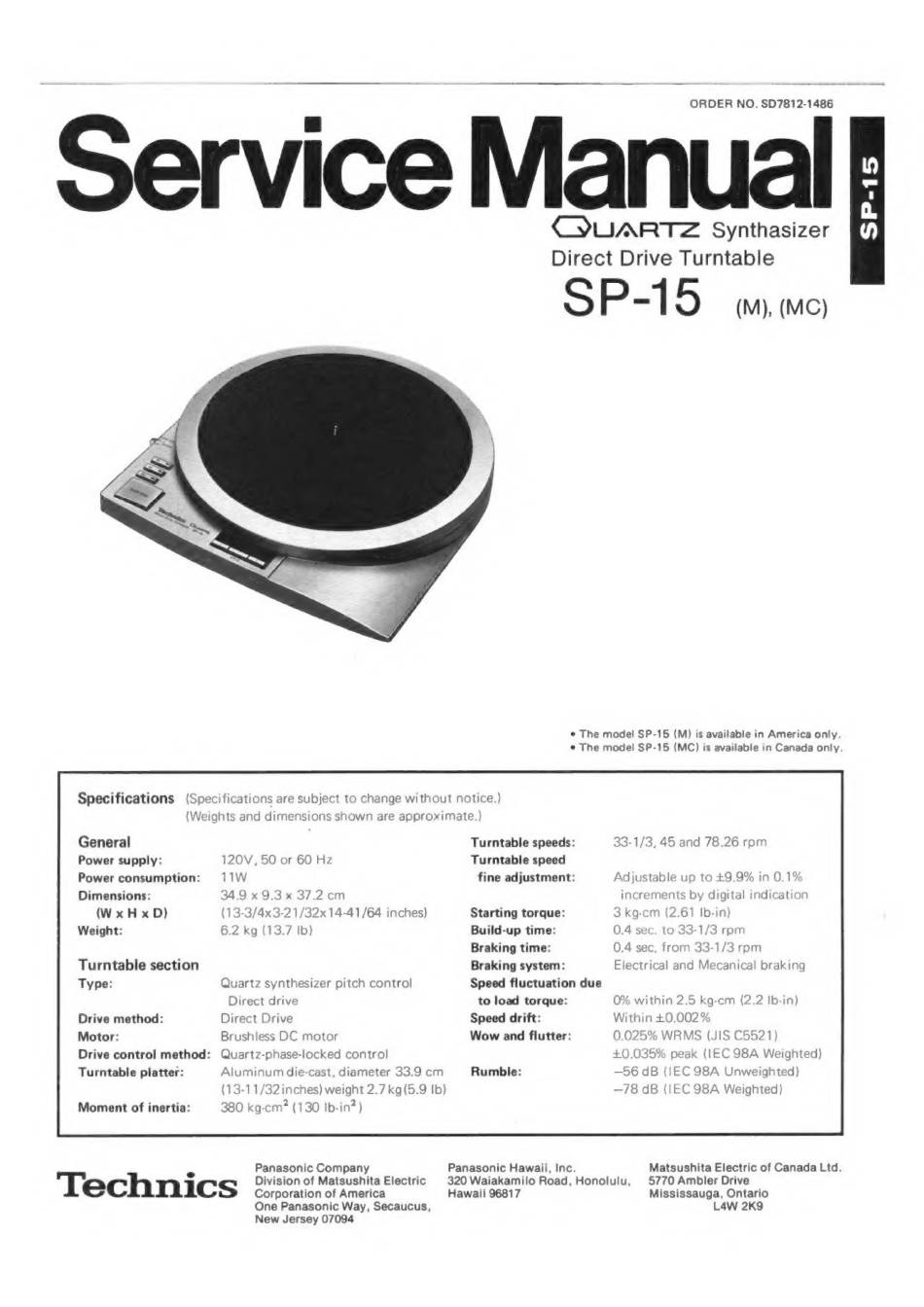

Technics QUARTZ SP-15 Service Manual

ORDER NO. SD7812-1486
CYUARTZ Synthasizer
Direct Drive Turntable
5 P-1 5 (M), (MC)
* The model SP-15 (M) is available in America only.
* The model SP-15 (MC) is available in Canada only.
Specifications (Specifications are subject to change without notice.)
(Weights and dimensions shown are approximate.)
Turntable speeds: 33-1/3, 45 and 78.26 rpm
Turntable speed
fine adjustment:
General
Power supply:
Power consumption:
120V, 50 or 60 Hz
11W Adjustable up to +9.9% in 0.1%
Dimensions:
(Wx H x D)
Weight:
Turntable section
Type:
Drive method:
Motor:
Drive control method:
Turntable platter:
Moment of inertia:
Technics
34.9 x 9.3 x 37.2 cm
(13-3/4x 3-2 1/32x 14-41/64 inches)
6.2 kg (13.7 Ib)
Starting torque:
Build-up time:
Braking time:
Braking system:
Speed fluctuation due
to load torque:
Speed drift:
Wow and flutter:
Quartz synthesizer pitch control
Direct drive
Direct Drive
Brushless DC motor
Quartz-phase-locked control
Aluminum die-cast, diameter 33.9 cm
(13-11/32 inches) weight 2.7 kg(5.9 Ib)
380 kg-cm? (130 Ib-in?)
Rumble:
Panasonic Company Panasonic Hawaii, Inc.
Division of Matsushita Electric
Corporation of America
One Panasonic Way, Secaucus,
New Jersey 07094
Hawaii 96817
320 Waiakamilo Road, Honolulu,
increments by digital indication
3 kg-cm (2.61 Ib-in)
0.4 sec. to 33-1/3 rpm
0.4 sec. from 33-1/3 rpm
Electrical and Mecanical braking
0% within 2.5 kg-cm (2.2 Ib-in)
Within 0.002%
0.025% WRMS (JIS C5521)
+0.035% peak (IEC 98A Weighted)
56 dB (IEC 98A Unweighted)
—78 dB (IEC 98A Weighted)
Matsushita Electric of Canada Ltd.
5770 Ambler Drive
Mississauga, Ontario
L4W 2K9
