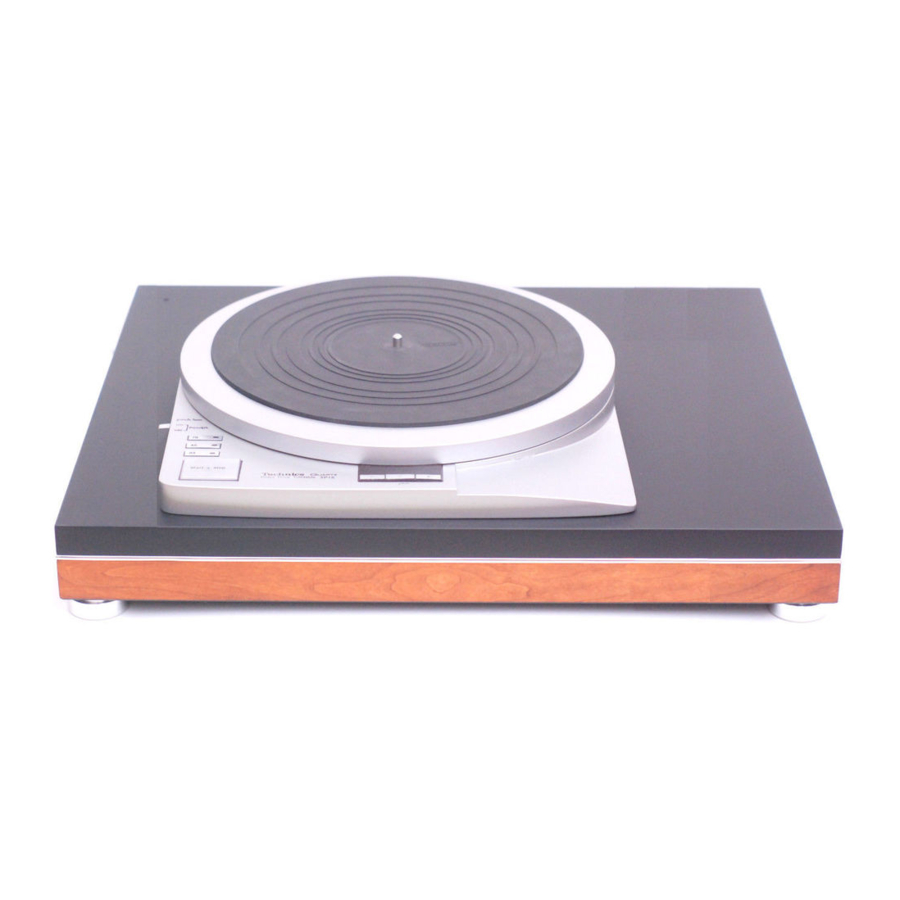

T e c h n i c s
Synthesizer
Q u a r t z
Direct Drive Turntable
SP-15
Operating instructions
The model number of this product may be found'on the back of the unit,
and the serial number, on the bottom of the unit.
Please noie the model and serial numbers of this unit in the space
provided and retain this booklet as a permanent record of your purchase
to aid identification in the event of theft
M O D E L NUMBER
S E R I A L N U M B E R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technics SP-15

Summary of Contents for Technics SP-15

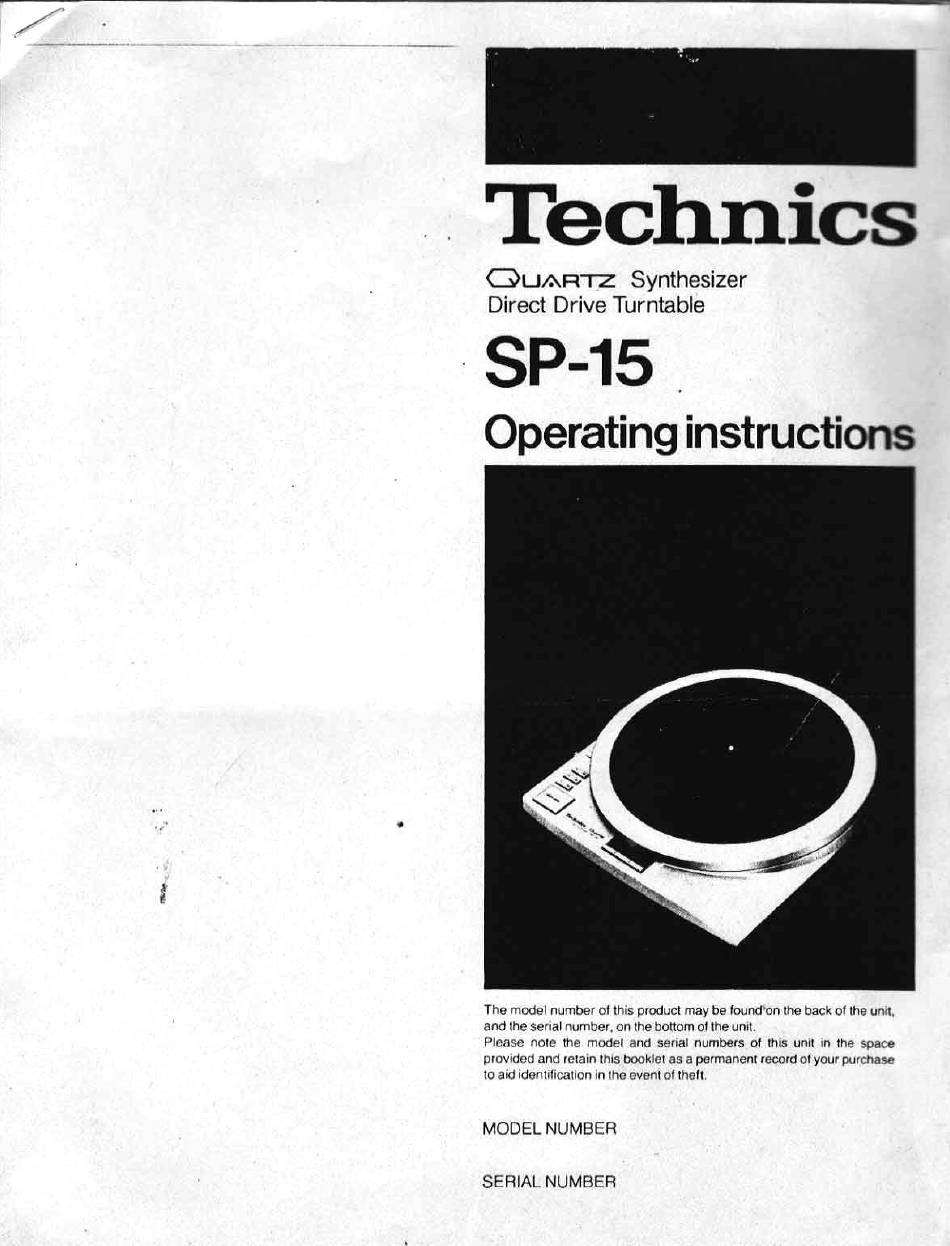

  • Page 1 T e c h n i c s Synthesizer Q u a r t z Direct Drive Turntable SP-15 Operating instructions The model number of this product may be found'on the back of the unit, and the serial number, on the bottom of the unit.

  • Page 2: Parts Identification

    We want to thank you for selecting the SP-15. For optimum performance, we recommend that you read these instructions carefully Parts identification Power switch/pitch lock knob Main unit fixing screw hole Center spindle (Motor shaft) Turntable mat Main unit fixing screw hole...

  • Page 3: Before Use

    Building your own base or cabinet for this model Fig. 4 Ground wire ( < SP-15 with a large starting torque of 3 kg cm (2.61 Ibin) has the superior feature of reaching constant speed in 0.4 second (at 33-1/3 rpm.).

  • Page 4: How To Operate

    How to operate Connections 1. Set the Power switch/pitch lock knob to the "on" position. Connect the AC power plug (See Fig. 5.) Connect the AC power plug to an AC wall socket. Connect the ground wire (GND) to "GND" of the amplifier or receiver. Note: Be sure to connect the ground terminal firmly to the amplifier or receiver.
  • Page 5 O U A H T Z r p m rniabie SP-15 pitch Another feature of the variable pitch control over a wide range of ±9 9% is that it makes singing along with a melody easy for a chorus, or for ptayng a record for accompaniment only.
  • Page 6 (200—500 hours). things may cause an electric shock or result in a malfunction of the Please purchase Technics original oil (Part number is SFWO 010.) unit. rf water spills on the unit Fig.

  • Page 7: Specifications

    In the Technics Malfunction caused by accidental touching of the operatng porton SP-15, we took the lead by locking the quartz, thus making it possible during playing, can be prevented. •...

  • Page 8: Suggestions For Safety

    SUGGESTIONS FOR SAFETY Before using this unit, be sure to read applicable items of the operating instructions and these safety suggestions carefully; and afterwards keep them handy for future reference. Take special care to follow the warnings indicated on the unit Itself as well as In the operating Instructions.
