INSTALLATION INSTRUCTIONS
If applicable, the following installation instructions can be followed for a 230 V, 60 Hz, 4.3 A SUITMATE
The SUITMATE Swimsuit Water Extractor has been designed and manufactured with safety as the
®
primary consideration. Therefore, it is important that the unit be installed correctly. It is also important
that the installation comply with all local building codes and regulations. Please consult your local licensed
plumbing and electrical engineers or contractors about your installation. Read the entire INSTALLATION
INSTRUCTIONS before beginning your installation. Remember: DO IT RIGHT and DO IT SAFE!
PROPER LOCATION FOR THE SUITMATE UNIT
Following is a list of factors to consider in determining a location for the SUITMATE
1. The unit should be located in an area that is near where people remove and rinse out their
swimsuits.
2. The unit should NOT be located in a cluttered area or where it is exposed to direct shower
water or water hose down.
3. The unit should be mounted on a wall structure that will support the unit's approximate
26 kg (58 lbs) hanging weight plus the added weight or pressure of people leaning on the unit.
Consult the PROPER WALL MOUNTING section of these instructions to determine an appropriate
location.
4. There should be a means to dispose of the wastewater from the unit. Consult the PROPER
DRAINAGE section of these instructions (page 5) to determine an appropriate location.
5. The unit should be wired to a 230 V, 50 Hz, 13 A dedicated circuit. Consult the PROPER
ELECTRICAL CONNECTIONS section of these instructions (page 5) to determine proper location.
PROPER WALL MOUNTING OF THE SUITMATE UNIT
The SUITMATE unit should be mounted to the wall with the Wall Mount Bracket that is provided
®
with the unit. The UTILITIES LOCATION DIAGRAM (page 9) shows the recommended location for
the mounting holes, the electrical service, and the wastewater outlet (if utilized). The Wall Mount
Bracket must be secured to a wall stud, or to concrete block or cinder block wall.
WARNING!
TO WALL
USE APPROPRIATE FASTENERS
FOR YOUR APPLICATION
WARNING!
©2022 Extractor Corporation
230 V, 50 Hz, 3.0 A SUITMATE
Anchors in drywall are not sufficient to mount the SUITMATE

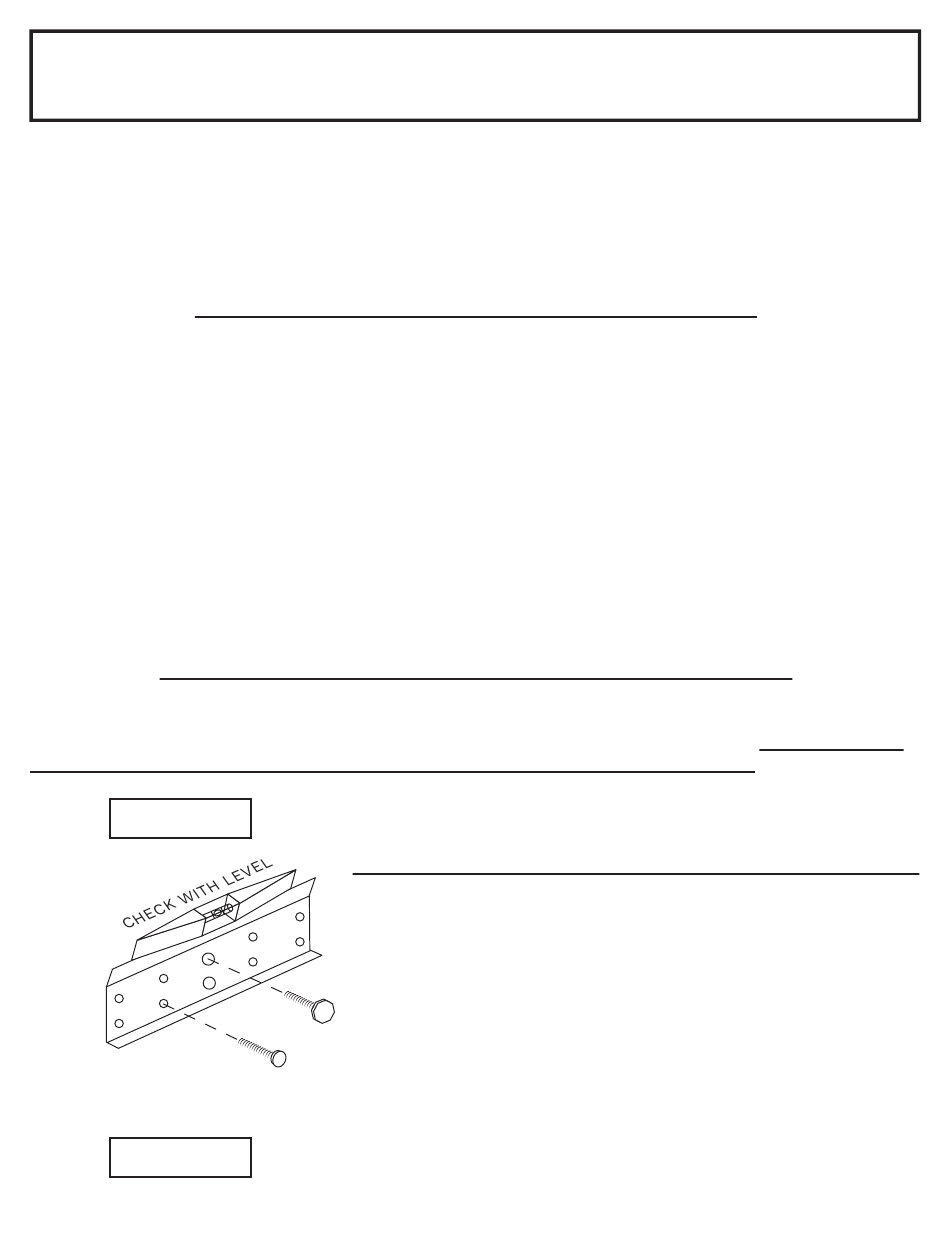

Locating and Securing the Wall Mount Bracket to the Wall
The suggested height from the floor to the top of the
SUITMATE
®
cm (10 in) of clearance above the SUITMATE
the opening and closing of the lid. The upper center hole of the
Wall Mount Bracket should be 96.5 cm +/- 1.6 mm (38 +/-
in) from the floor. The top of the Wall Sign should be 152.4 cm
+/- 1.6 mm (60 +/-
SUITMATE
®
adequate clearance, a strong and secure place for the Wall
Mount Bracket as well as easy access to electrical and drainage
connections.
The Wall Mount Bracket must be level after it is secured to the wall.
Unit
®
unit is 106.7 cm (42 in). At least an additional 25.4
in) above the floor and centered over the
/
1
16
unit. Determine a location on the wall that provides
3
®
unit.
®
®
unit is needed for
®
230 V, 50 Hz, 3.0 A SUITMATE
unit.
®
unit.
®
/
1
16
Unit
®
