Summary of Contents for protech TD2038

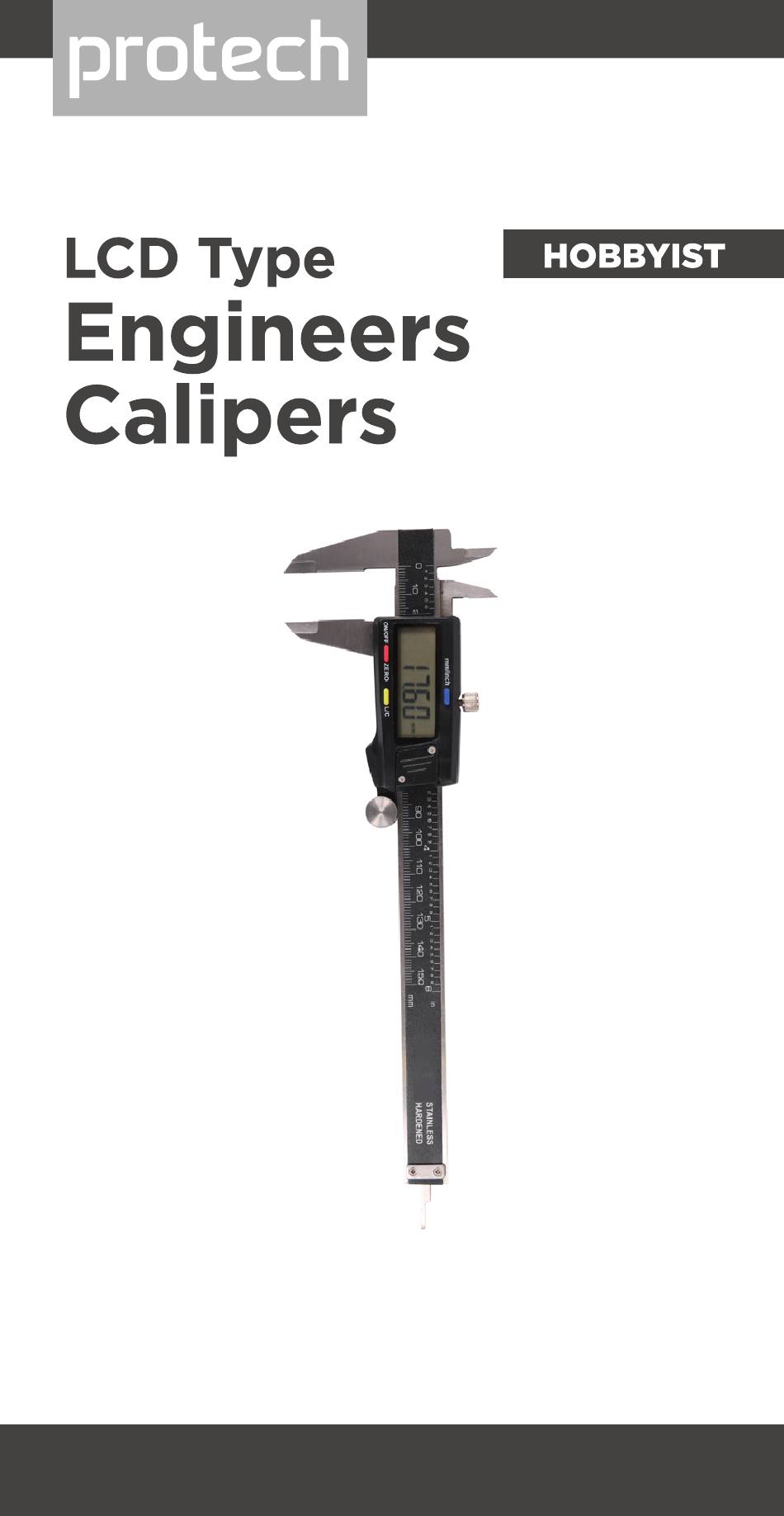

- Page 1 User Manual TD2038...
-
Page 2: Table Of Contents
Contents Overview ............. Use ..............Package contents/device parts ....General information ........Reading and storing the user manual ..Explanation of symbols ......Safety ............Proper use ............ Safety instructions ........First use ............. Checking the caliper and the package contents ........ -
Page 5: Package Contents/Device Parts
Package contents/device parts Package contents /device parts Step measurement scale Inside measurement scale LCD display Locking screw mm/inch button Battery compartment Depth blade Measuring scale Fine adjustment dial Slider L/C button ON/OFF (ZERO) button Outside measurement scale Plastic case 1 x LR44 1.5V Button cell battery (pre-installed);... -
Page 6: General Information
General information General information Reading and storing the user manual This user manual accompanies this digital caliper (hereinafter referred to as the “caliper”). It contains important information on start-up and handling. Before using the caliper, read the user manual carefully. This particularly applies to the safety instructions. - Page 7 General information CAUTION! This signal symbol/word designates a hazard with low risk that, if not avoided, may result in minor or moderate injury. NOTICE! This signal word warns against potential damages to property. This symbol provides you with useful supplementary information on start-up and handling.
- Page 8 General information WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN Swallowing or placed inside any part of the body may lead to serious or fatal injury in as little as 2 hours, due to chemical burns and potential perforation of the oesophagus. If you suspect your child has swallowed or inserted a button battery immediately call the...
-
Page 9: Safety
Safety Safety Proper use The caliper is only designed for use as a measuring device. It is only intended for private use and is not suitable for commercial purposes. Only use the caliper as described in this user manual. Any other use is considered improper and may result in damage to property. - Page 10 Safety of repairs performed by the instruction, improper connection of the device or incorrect operation. Only parts that comply with the original device data may be used for repairs. Only use the caliper in rooms located indoors. Never operate the caliper in wet rooms or in the rain.
- Page 11 Safety Store the batteries in an area that is not accessible for children. Do not let children play with the packaging. Children may get caught in it when playing and suffocate. Do not allow children to play with the batteries. Batteries may pose a risk to health if ingested.
- Page 12 Safety comes into contact with skin or other body parts. Never open the batteries. If battery acid leaks out, avoid contact with skin, eyes and mucous membranes. In the event of contact with battery acid, immediately rinse the affected areas with plenty of clean water and consult a physician.
- Page 13 Safety CAUTION! Risk of injury! Touching the measuring edges may result in injury. Only hold the caliper by the handles, do not hold it by the measuring edges. Do not allow children to play with the caliper. Children could crush their fingers between the measuring surfaces and injure themselves.
-
Page 14: First Use
First use Only replace the battery with the same type or an equivalent battery type. Batteries must not be exposed to excessive heat such as in the form of sunlight, fire or similar. Make sure that the battery is inserted the right away around, that is, observe the polarity. -
Page 15: Inserting The Battery
First use Inserting the battery A button cell has already been inserted. 1. Remove the safety strip under the button cell. After inserting the battery, the caliper will need approximately 5–6 seconds to configure itself. The caliper may only be switched on once the configuration process is complete. -
Page 16: Handling
Handling Handling 1. To switch the caliper on, push the ON/OFF (ZERO) button 2. To select the desired unit of measure (metric/inch), push the mm/inch button The caliper saves the set unit of measure for the next time you use it. Set the caliper to 0 by briefly pressing the ON/OFF (ZERO) button to start... -
Page 17: Functions
Functions Functions Zero setting The zero setting can be performed in any position and facilitates step measurements. Push the ON/OFF (ZERO) button to set the zero point. This makes it possible to perform differential measurements. Negative measurements are displayed with a “–”. Conversion The mm/inch conversion may be performed in any position. -
Page 18: Switching The Caliper On And Off
Functions Switching the caliper on and off The caliper can either be turned on/off manually or automatically shut down. Automatic deactivation After about 5 minutes of inactivity, the caliper will automatically switch off. Manual activation and deactivation Push the ON/OFF (ZERO) button switch the caliper on. -
Page 19: Reference Table
Functions Reference table Convenient reference table for cutting threads (also see the back side of the caliper): Metr. ISO Drill size Screw size Screw pitch Screw hole Ø mm Ø mm Ø mm Ø mm 2.46 3.24 4.13 4.92 1.25 6.65 8.38 1.75... -
Page 20: Cleaning
Cleaning Cleaning NOTICE! Risk of damage! Improper handling of the caliper may result in damage. Do not use any aggressive cleaners, brushes with metal or nylon bristles or sharp or metallic cleaning utensils such as knives, metal sponges and the like. They could damage the surfaces. -
Page 21: Storage
Storage Storage When not in use, place the caliper in the plastic case Store the caliper so that it is not accessible to children, securely locked and at a storage temperature between -10 °C and +60 °C. Troubleshooting Some problems may be caused by minor faults that you can fix yourself. -
Page 22: Technical Data
Technical data Technical data Model: TD2083 Power source: 1.5 V, LR44 button cell Measurement speed: Weight: approx. 150 g Operating temperature: 0 °C – +40 °C Storage temperature: –10 °C – +60 °C Relative humidity: < 80 % Tolerances: +/– 0.02 mm/0.001 inch at <... -
Page 23: Disposing Of The Caliper
Disposal Disposing of the caliper Should the caliper no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your city or state. Please ensure your recycling information applies to the local regulations. - Page 24 Distributed by: Electus Distribution Pty Ltd 46 Eastern Creek Dr, Eastern Creek NSW 2766 Australia Ph 1300 738 555 Int’l +61 2 8832 3200 Fax 1300 738 500 www.electusdistribution.com.au...
